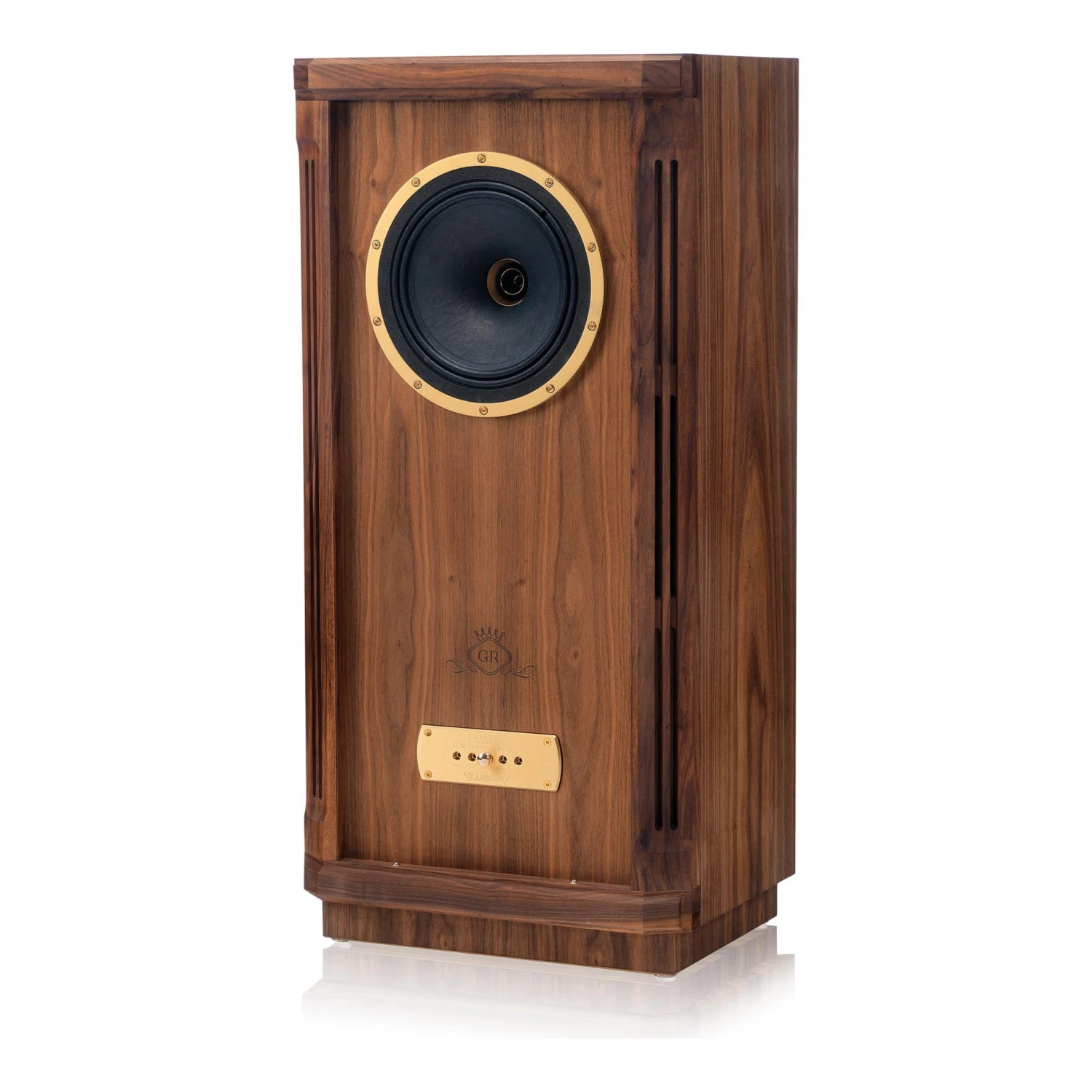

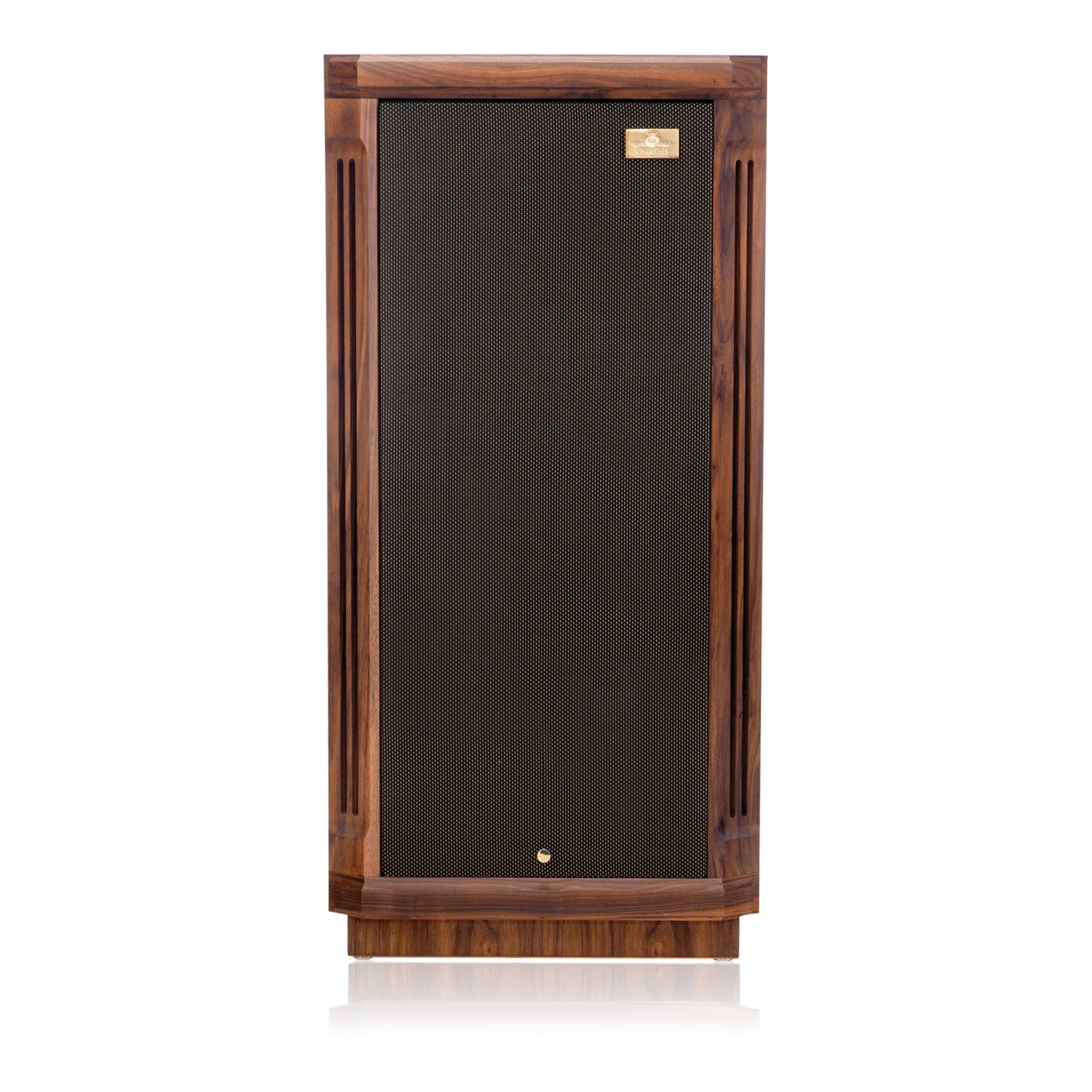

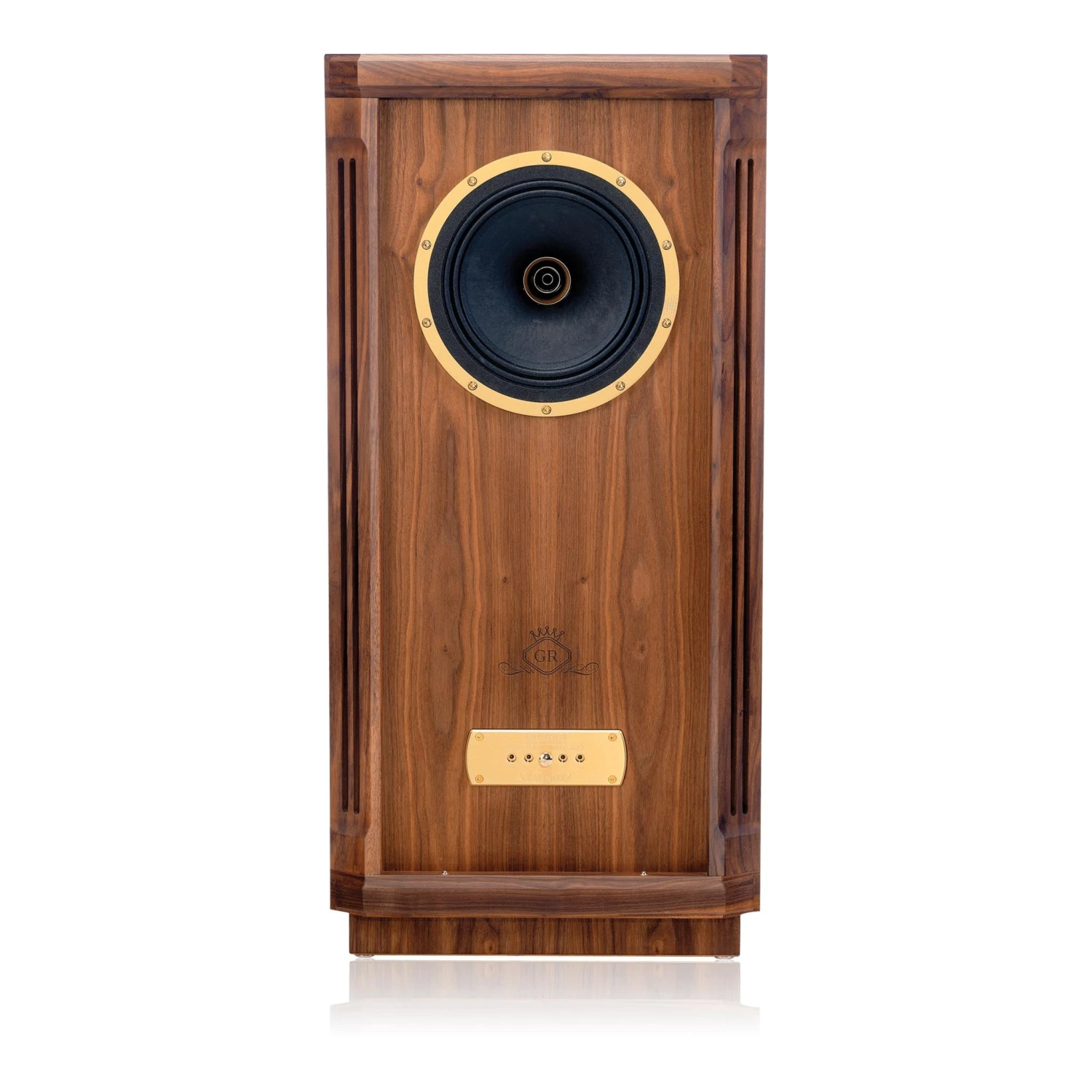

Tannoy Turnberry Gold Reference Loudspeaker (each)

Must be purchased in pairs.



“Tannoy’s old-school speaker tech wows audiophiles”

— STEVE GUTTENBERG, C/NET, MAY 2010



Single speaker price. Must be purchased in pairs.

Conveying all the power and musical articulation of the new Gold Reference Dual Concentric driver yet housed in a more compact 100 litre cabinet, Turnberry GR brings Prestige performance to smaller rooms. The 250 mm (10.00”) Gold Reference Dual, unique to the Turnberry GR, uses a new paper pulp cone material with HE twin roll fabric surround and 1.3 in aluminium-magnesium alloy dome tweeter with Tulip WaveGuide. The low-frequency cone is fitted with a new 50 mm (2.00”) edge wound voice coil. This latest evolution of the 250 mm (10.00”) Dual brings an even more thrilling and dynamic performance than its well-regarded predecessor.

The high power crossover is hand-built on a dedicated crossover board using the finest sounding components and full Deep Cryogenically Treated to improve crystal structure of the conductor throughout the circuit. The result is a rich and articulate sound with remarkable sound staging and all the cohesive musicality of a true point source transducer. The Turnberry GR’s High-Frequency power controls can tailor the listening experience without introducing any potential distortion that can result from using an amplifier’s ‘tone’ controls

The cabinet is hand-built from the finest plywood using traditional joinery methods to ensure that attention to detail and unique styling go hand in hand. A distributed port design for exemplary LF response from the enclosure, the cabinet is finished in Prestige oiled real walnut wood veneer and complimented with solid walnut trim and edging, machined metal trim and adjustable HF power.

It is detailed, dynamic and outstandingly articulate sound with all the musical cohesion inherent with the Dual Concentric driver. The Turnberry offers the bespoke cabinetry and remarkable performance of Tannoy’s Prestige series, yet costs no more than a typical mass-produced loudspeaker.

Click here for an amazing brochure on the Prestige GR series!

PERFORMANCE

Recommended amplifier power	20 – 200 Watts
Continuous power handling	100 Watts RMS
Frequency response	34Hz – 44kHz -6dB
Sensitivity	93dB (2.83 Volts @1 metre)
Nominal impedance	8 Ohms (Min 5 Ohms)



DRIVE UNITS

Dual Concentric high-frequency	33mm (1.30″) aluminium alloy dome with Tulip Waveguide
Dual Concentric low-frequency	254mm (10.00″) treated paper pulp cone with HE twin roll fabric surround. 52mm (2.00) edge wound voice coil
Dispersion	90 degrees conical



CROSSOVER

Frequency	1.3kHz
Type	Bi-wired, hard-wired passive, low loss 2nd order low pass, 2nd order high pass
Adjustment	+/- 3dB over 1.3kHz to 44kHz shelving



CONSTRUCTION

Enclosure type	Dual Distributed Port
Volume	100L (3.5 cu.ft)
Dimensions	950 x 456 x 336mm (37.5″ x 18″ x 13.25″)
Weight	30kg (66 lbs)
Finish	Walnut veneer with solid walnut trim and edging. Internally cross braced and heavily damped.
