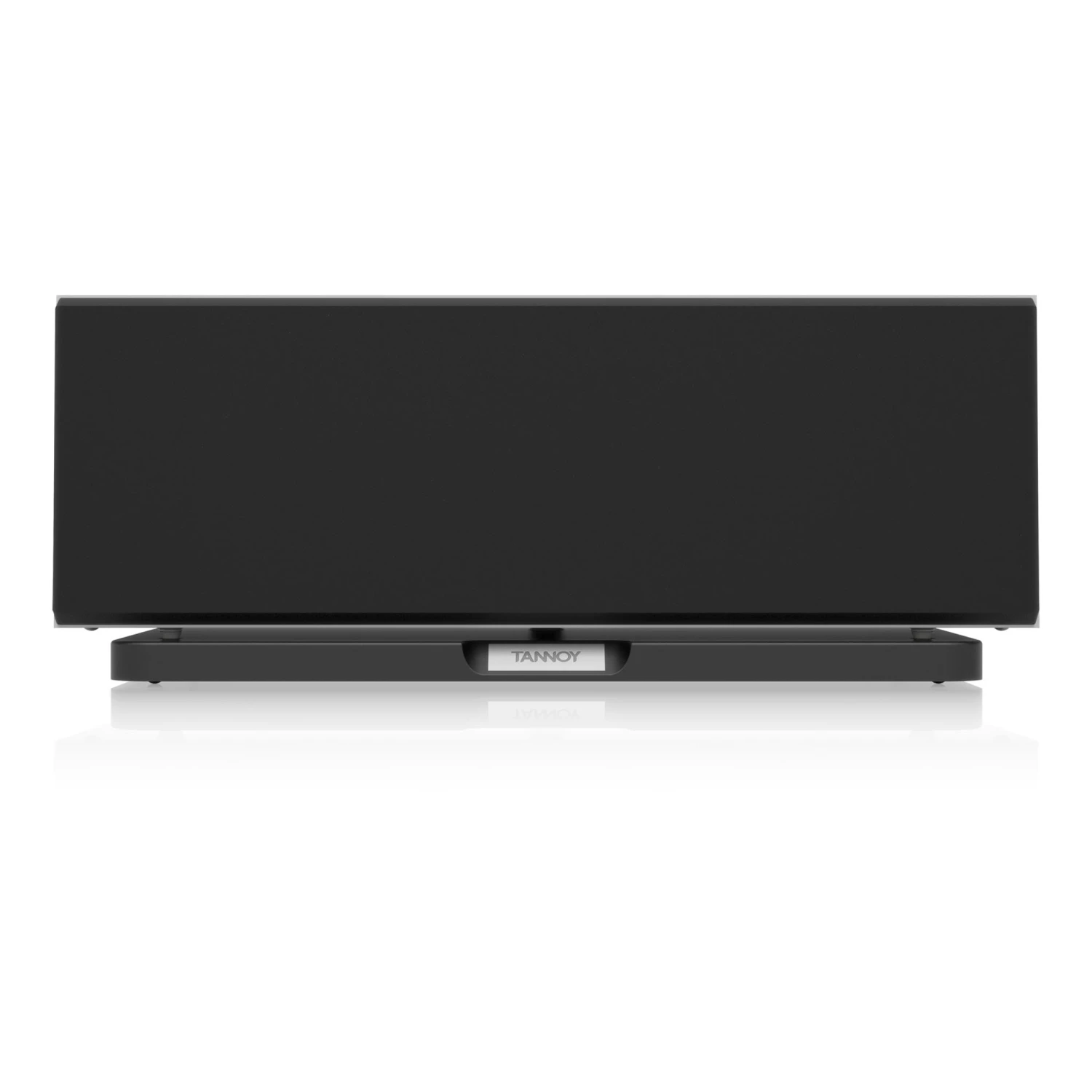

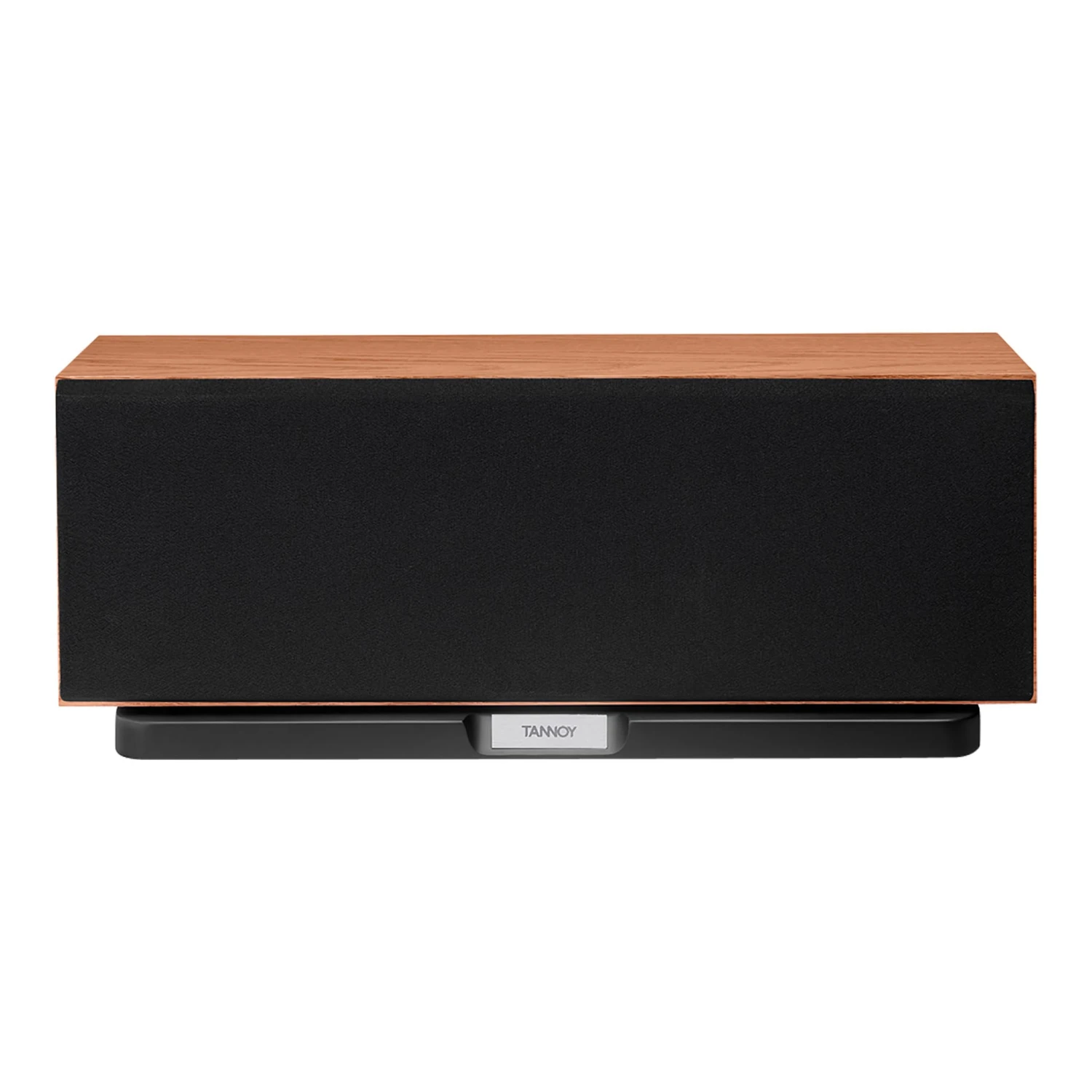

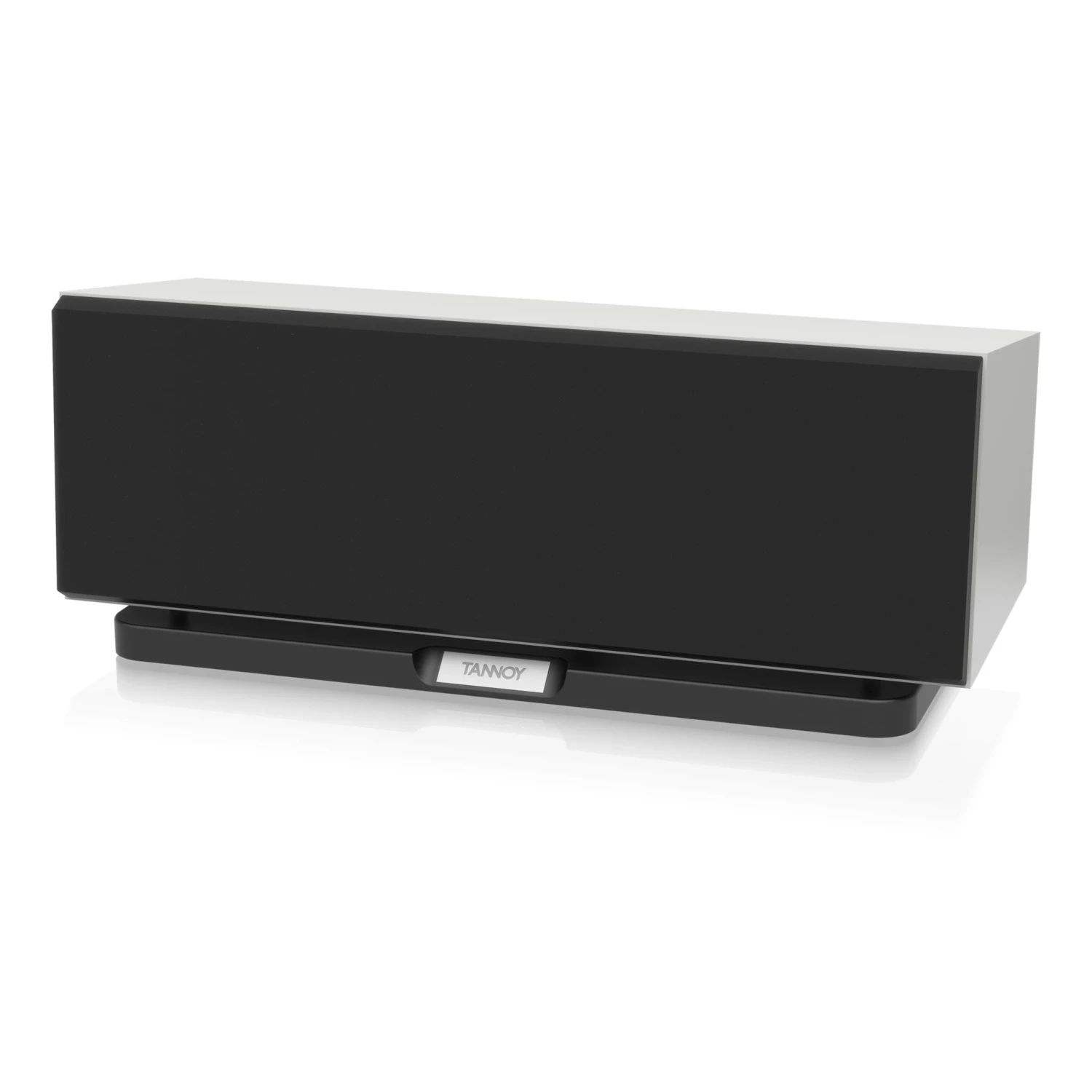

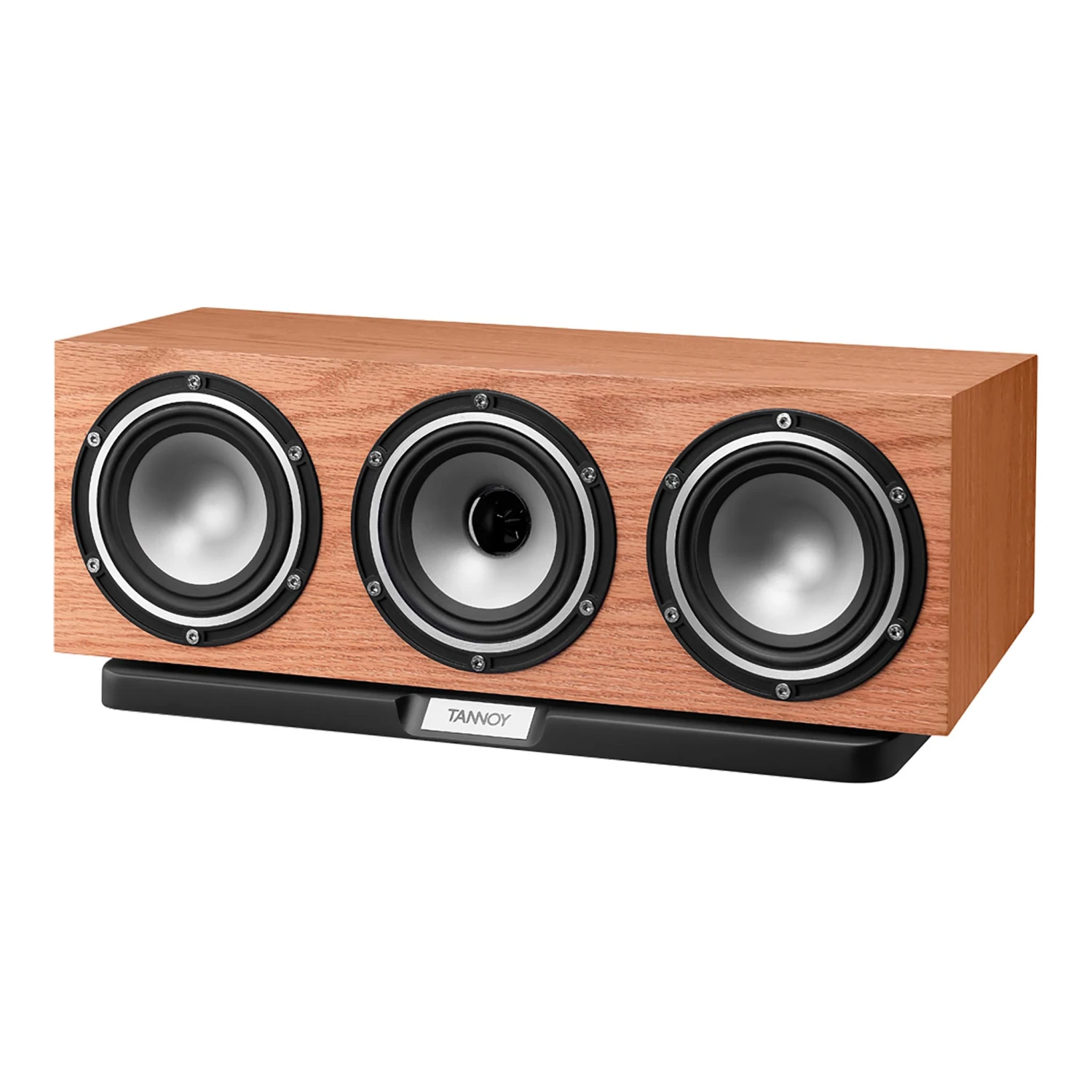

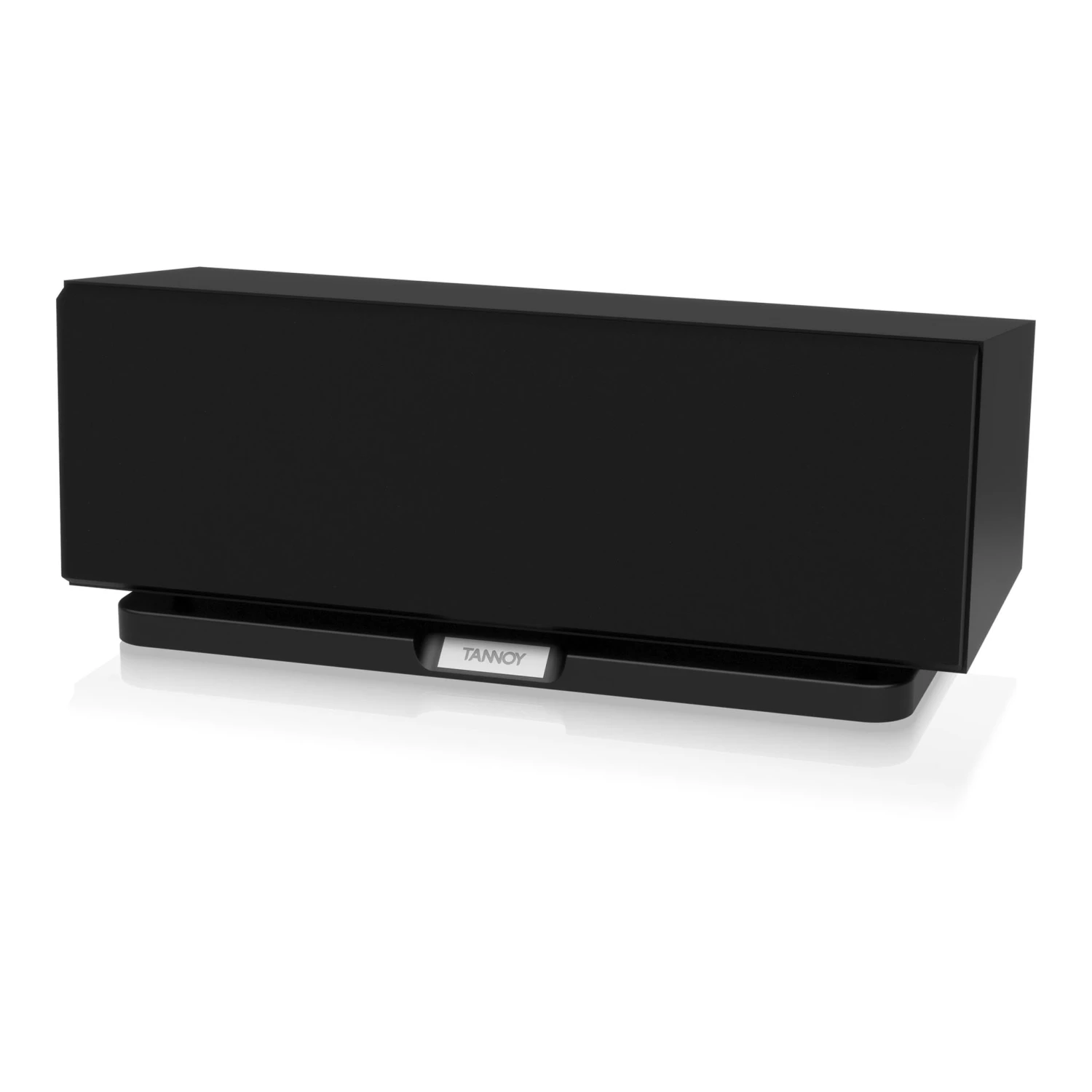

Tannoy Revolution XT C

“Tannoy has been steadily refining a notable design for decades and has achieved some remarkable results, especially in terms of the faithful reproduction of instrumental and vocal sonorities. ”

— ANDREW QUINT, THE ABSOLUTE SOUND, MAY 2016

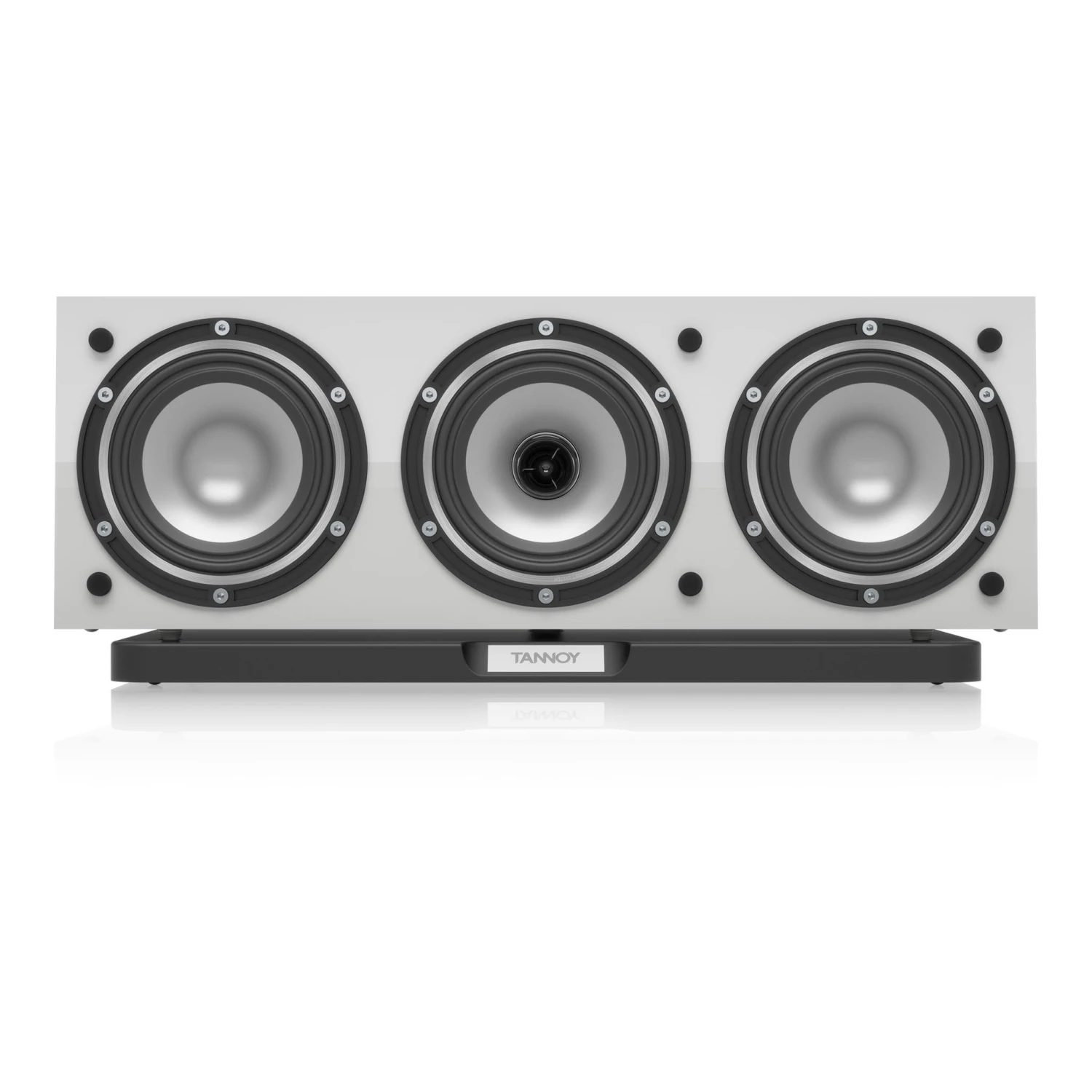

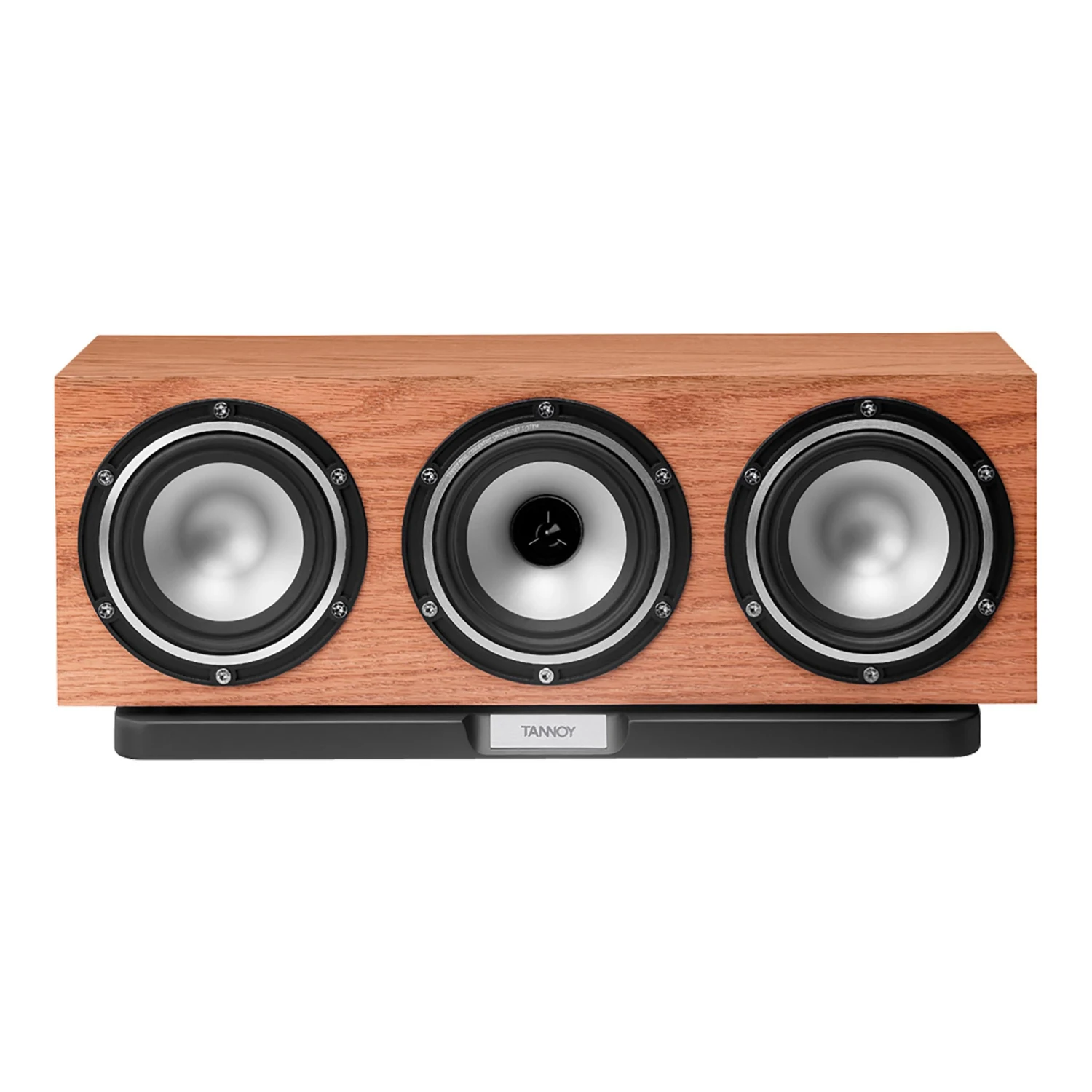

The Omnimagnet dual is augmented with twin 100 mm (4 inch) mid/bass drivers to deliver deep bass reproduction down to 62 Hz, bringing authentic presence to movie dialogue.

The compact 7.6 litre XT C cabinet utilizes the low colouration trapezoid shape that defines the Revolution range, with extensive bracing to further enhance accuracy across the audio band. A unique variation on the XT-series plinth has been designed specifically for the XT C, allowing the speaker to be angled low, mid or high depending on its placement relative to the listener. The three-point contact with the speaker provides stable support whether the XT C is placed below or above a TV screen or directly behind an acoustically transparent projection screen.

Specifications

Recommended Amplifier Power: 25 – 120 W
Continuous Power Handling: 60 W
Peak Power Handing: 240 W
Sensitivity (2.83 V @ 1 m): 89 dB
Nominal Impedance: 8 ohm
Frequency Response (-6 dB): 62 Hz – 52 kHz
Drivers: Dual Concentric™ High Frequency (20 mm (0.79″) Linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology), Dual Concentric™ Low Frequency (100 mm (4”) multi-fibre paper 35 mm (1.38”) voice coil)
Crossover Frequency: 2.8 kHz
Crossover Type: Passive low loss 2nd order low pass, 1st order high pass

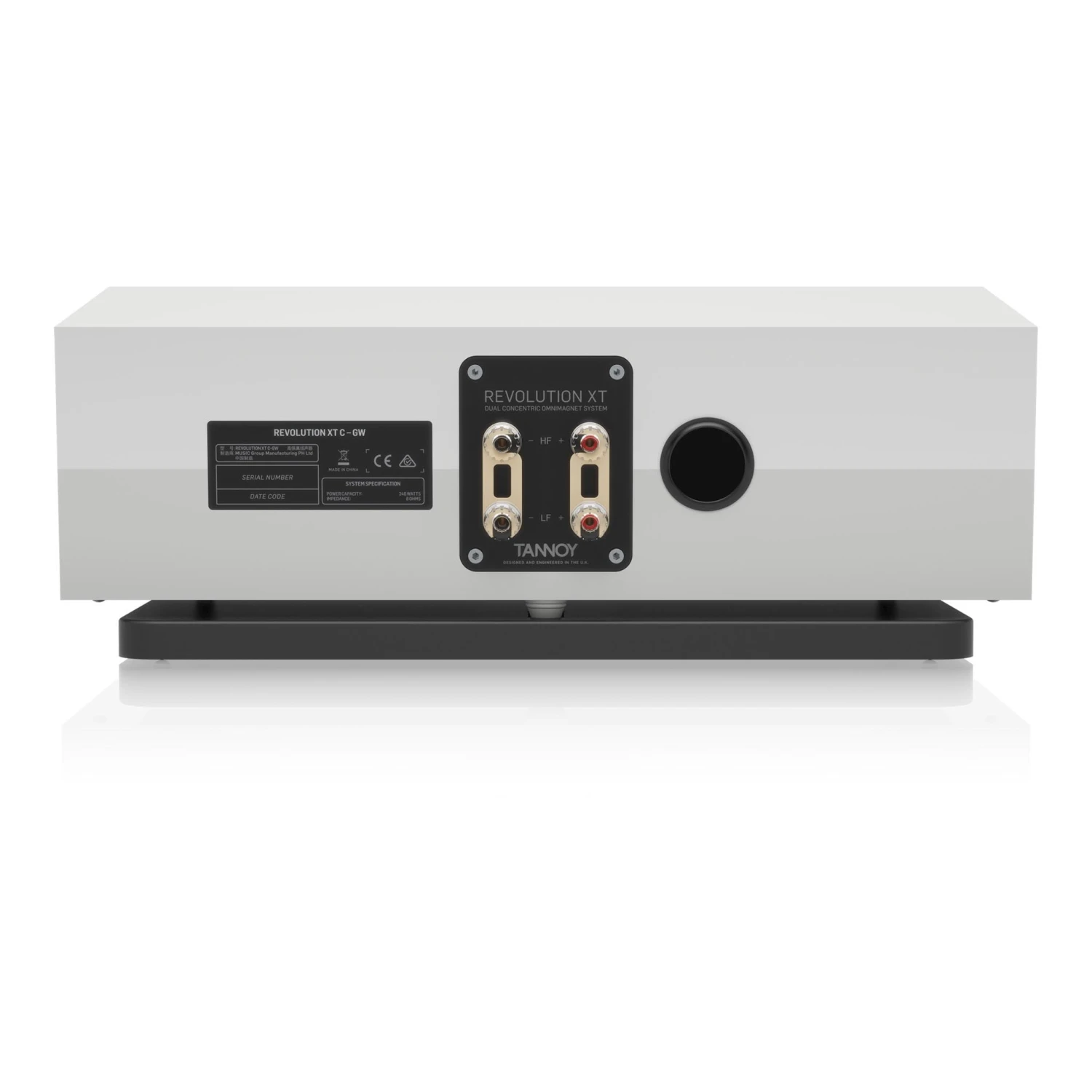

Enclosure Type: Rear ported reflex
Volume: 7.6 l (0.27 cu. ft.)
Dimensions: 6.9″ x 17.7″ x 8.09″ (176.9 x 450 x 205.6 mm)
Weight: 7.9 kg (17.5 lb)
