Tannoy Autograph Mini Loudspeaker (each)

Must be purchased in pairs.



The Autograph Mini GR is a hugely scaled-down but authentic version of a loudspeaker that was famous throughout the audio world fifty years ago. Reduced to a fraction of the size of the immense and revered original Tannoy Autograph this exquisite replica is the ultimate modern retro audio product. Its diminutive size and accurately detailed finish produce a modern day classic that will embellish the most contemporary surroundings.

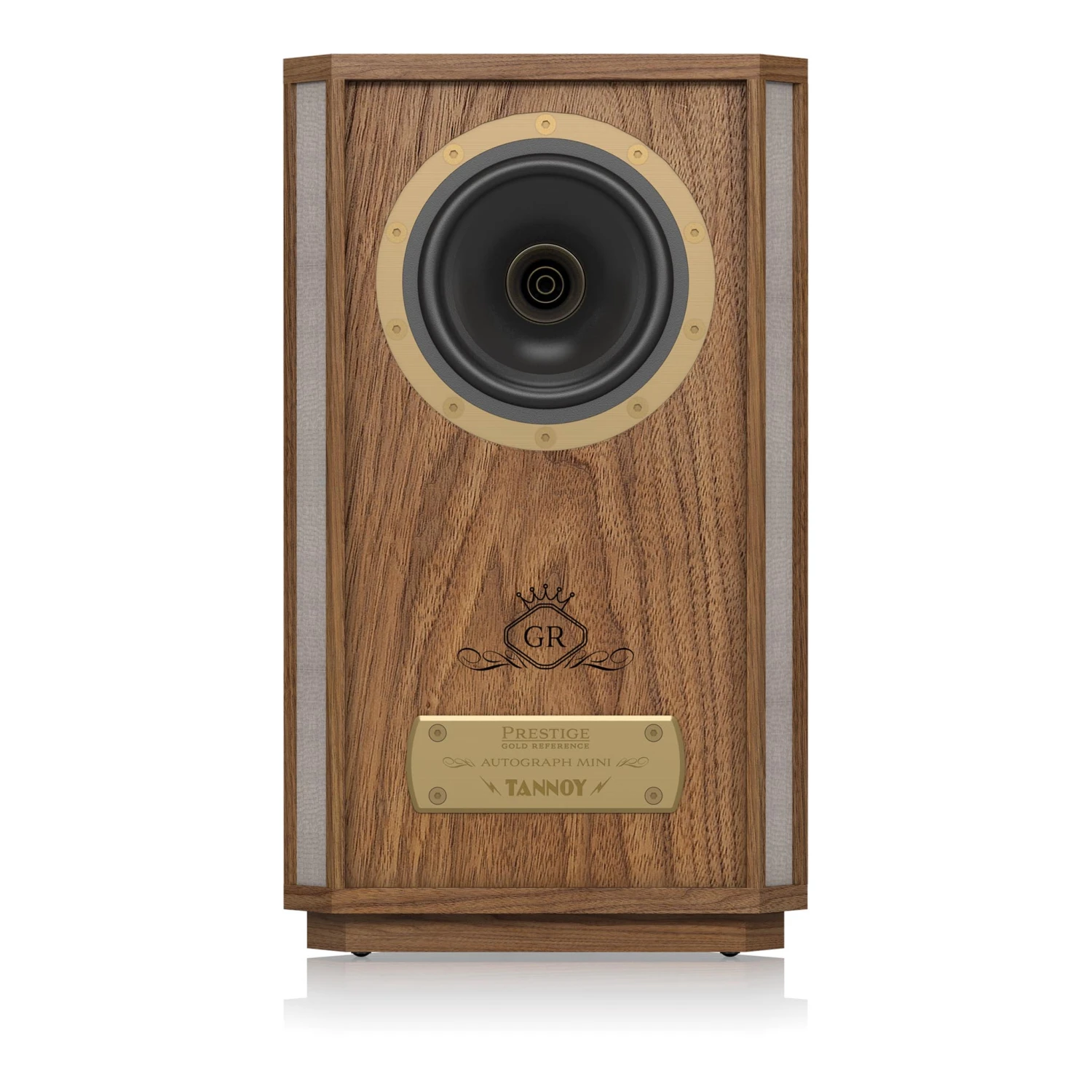

Remaining true to the cabinet build and finish quality of that yesteryear model, the Autograph Mini naturally incorporates a 4.50” Dual Concentric™ driver – the unique engineering statement that makes this speaker a ‘real’ Tannoy. Combining wide bandwidth technology to ensure breathtakingly natural midrange and a heavy cast alloy frame and multi fibre paper pulp cone for well defined bass performance, this miniature Dual performs with subtlety, stunning detail and expansive imaging.

Must be ordered in pairs

Specifications

Recommended amplifier power	20 – 100 Watts
Continuous power handling	50/200 Watts RMS Cont/Peak
Frequency response	60Hz – 20kHz -10dB
Sensitivity	88 dB (2.83 Volts @ 1 metre)
Nominal impedance	8 Ohms

Dual Concentric™ high frequency	19mm (0.75”) titanium dome with Tulip WaveGuide™
Dual Concentric™ low frequency	100mm (4.50”) treated paper pulp cone with rubber surround. 33mm (1.33”) edge wound voice coil
Dispersion	90 degrees conical

Frequency	2.3kHz
Type	Passive low loss 2nd order compensated LF, 1st order compensated HF

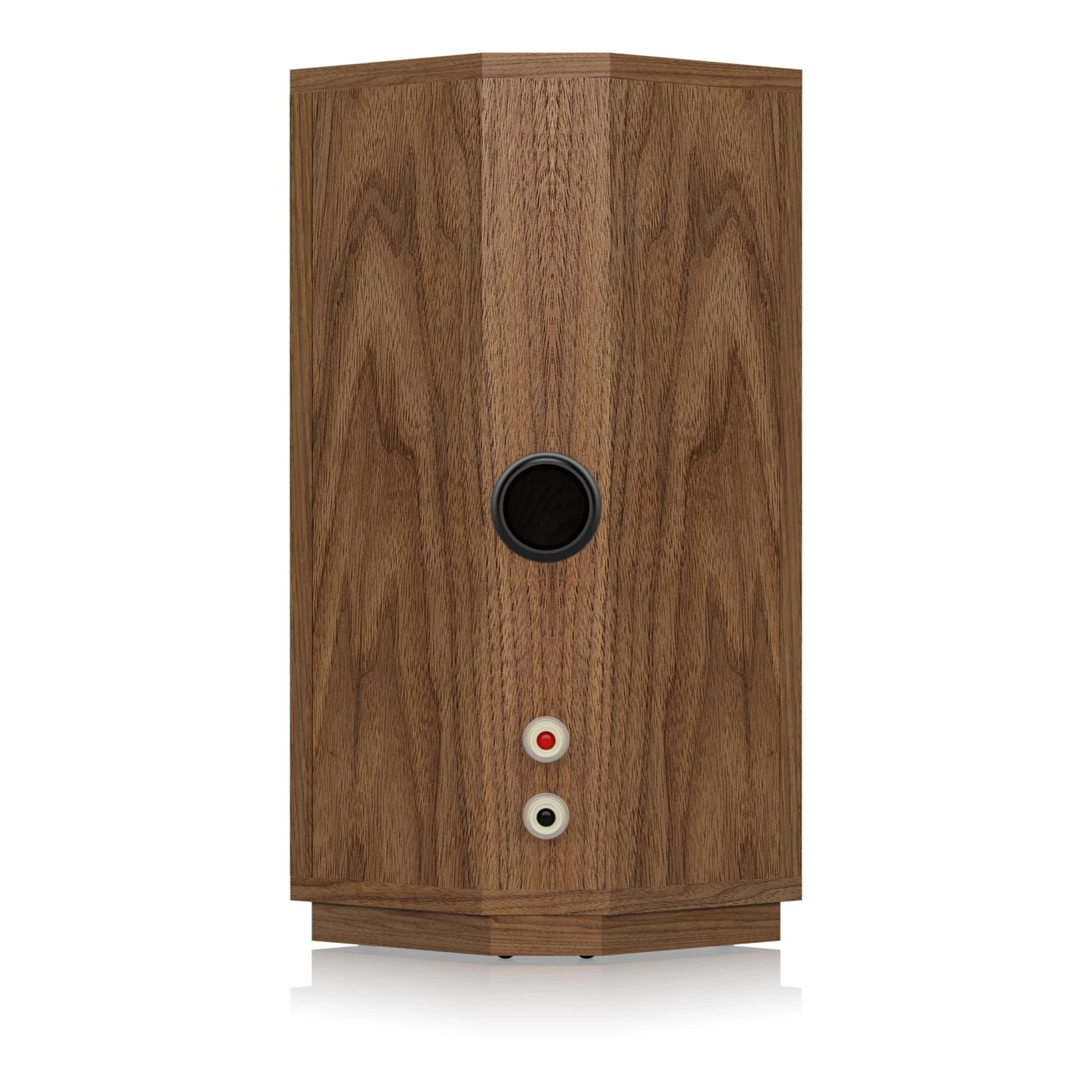

Enclosure type	Rear ported
Volume	3.5L (213.5 cu.ins”)
Dimensions	356 x 209 x 156mm
Weight	4.4kg
Finish	Oiled Walnut
