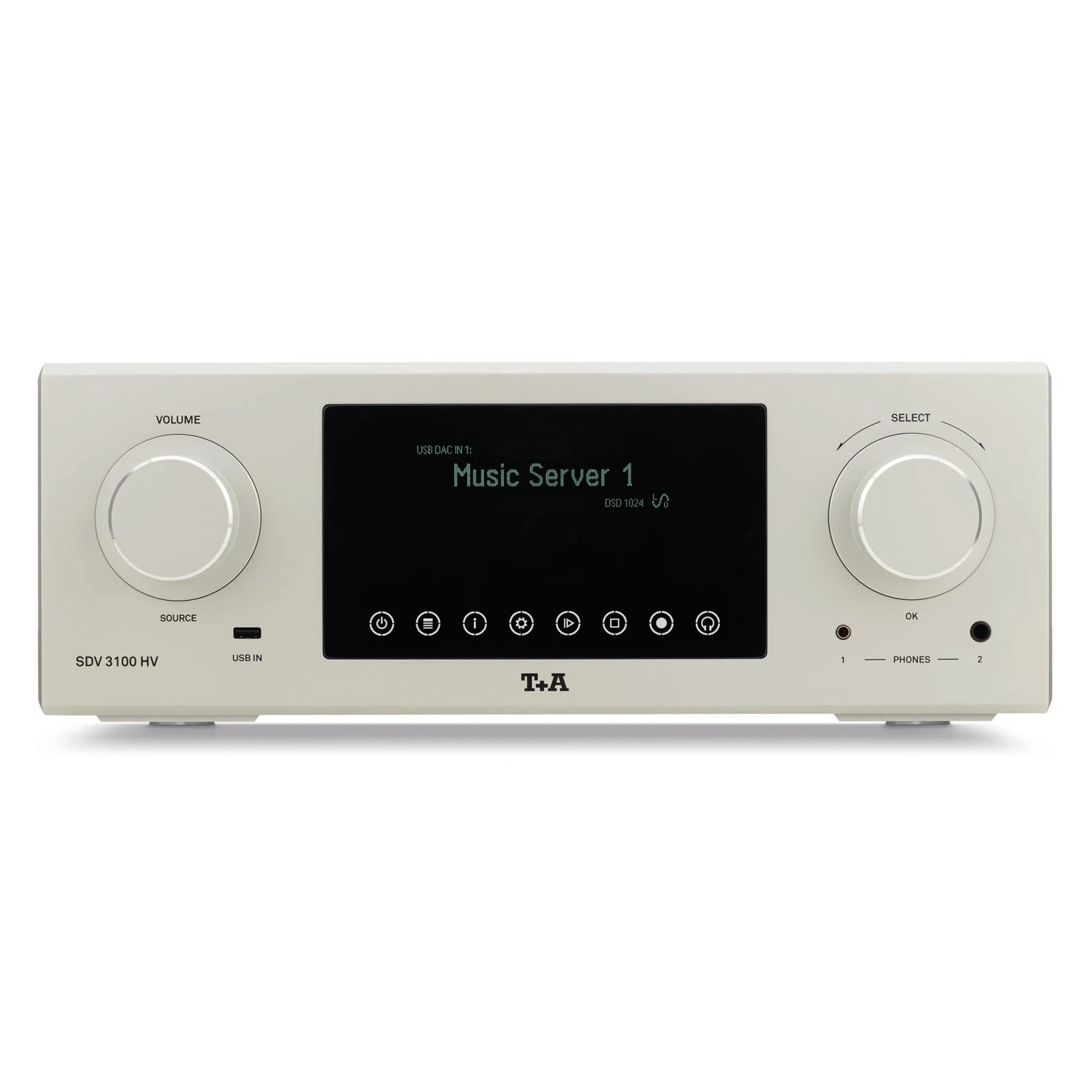

T+A Elektroakustik SDV 3100 HV Reference Streaming DAC w/ Preamplifier

A native DSD and PCM DAC with a range of digital inputs, as well as RCA and XLR analog input and output.

The SDV 3100 HV is the same streaming DAC as the SD 3100 HV, with an additional preamp stage. This means you can add extremely high-quality streaming and preamp functions to the power amp of your choice.

The headphone amp is no afterthought on the SDV 3100 HV, but is an extremely high-performance analog design that also uses HV (T+A’s high voltage) technology. It works completely in Class A.

As with all HV products, the SDV 3100 HV is built of pure aluminum, with no ferro-magnetic materials. There are five compartments separated by aluminum dividing walls for each of the sections.

Specifications

Sample Rate
PCM: 768 kHz, 32 bit
DSD: DSD 1024

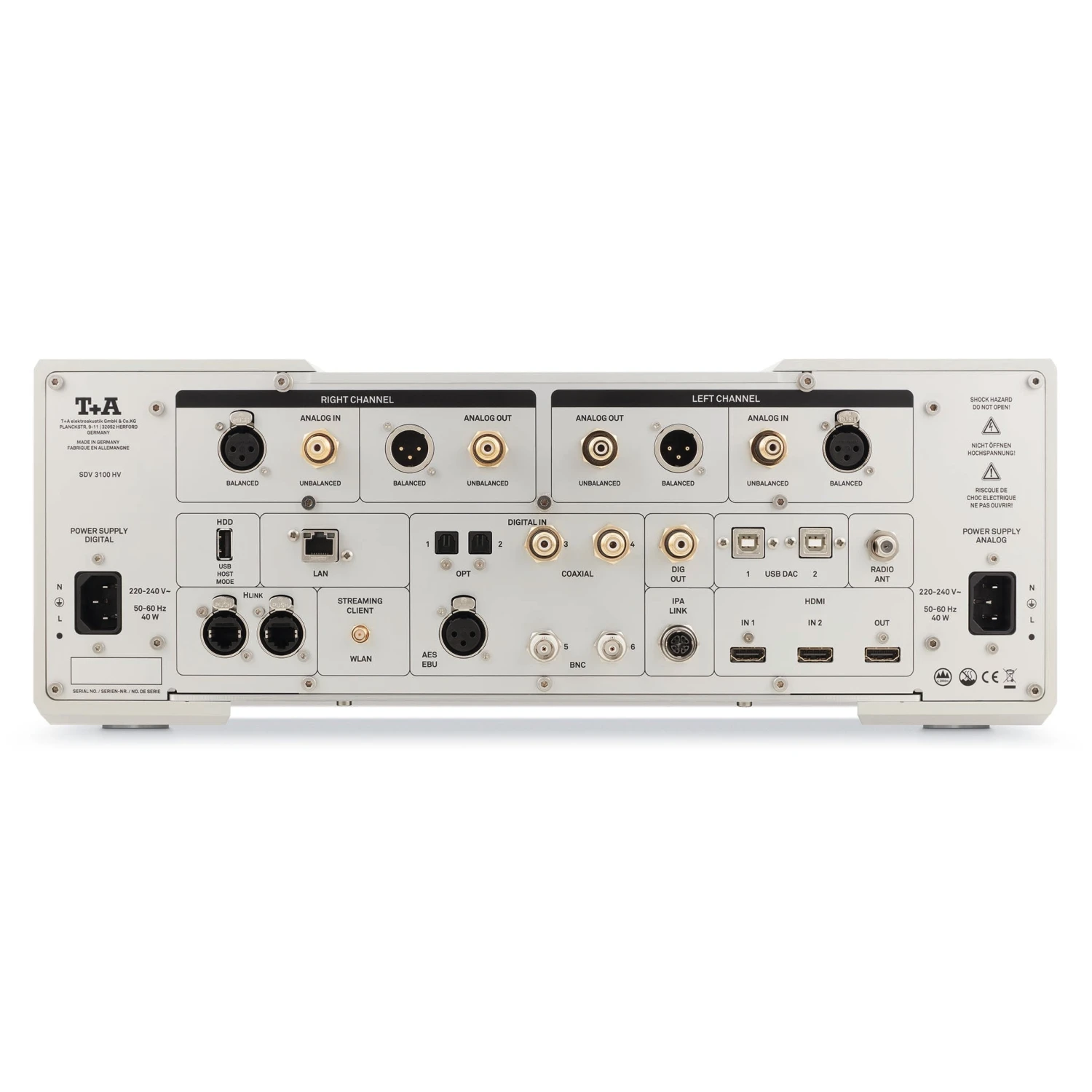

Outputs
Headphone: 6.3 mm jack, 4.4 mm Pentaconn
Digital: AES, Coax, HDMI ARC
Analog: XLR, RCA

Inputs
Digital: AES, 2 x coax, 2 x BNC, 2 x optical, 2 x USB, 2 x USB data, 2 x HDMI, Bluetooth
Analog: XLR, RCA

Radio: FM, FM-HD, DAB+

Network: Ethernet, Wi-Fi

Dimensions (HWD): 6.7″ x 18″ x 18″ (17 x 46 x 46 cm)

Weight: 57.3 lb (26 kg)
