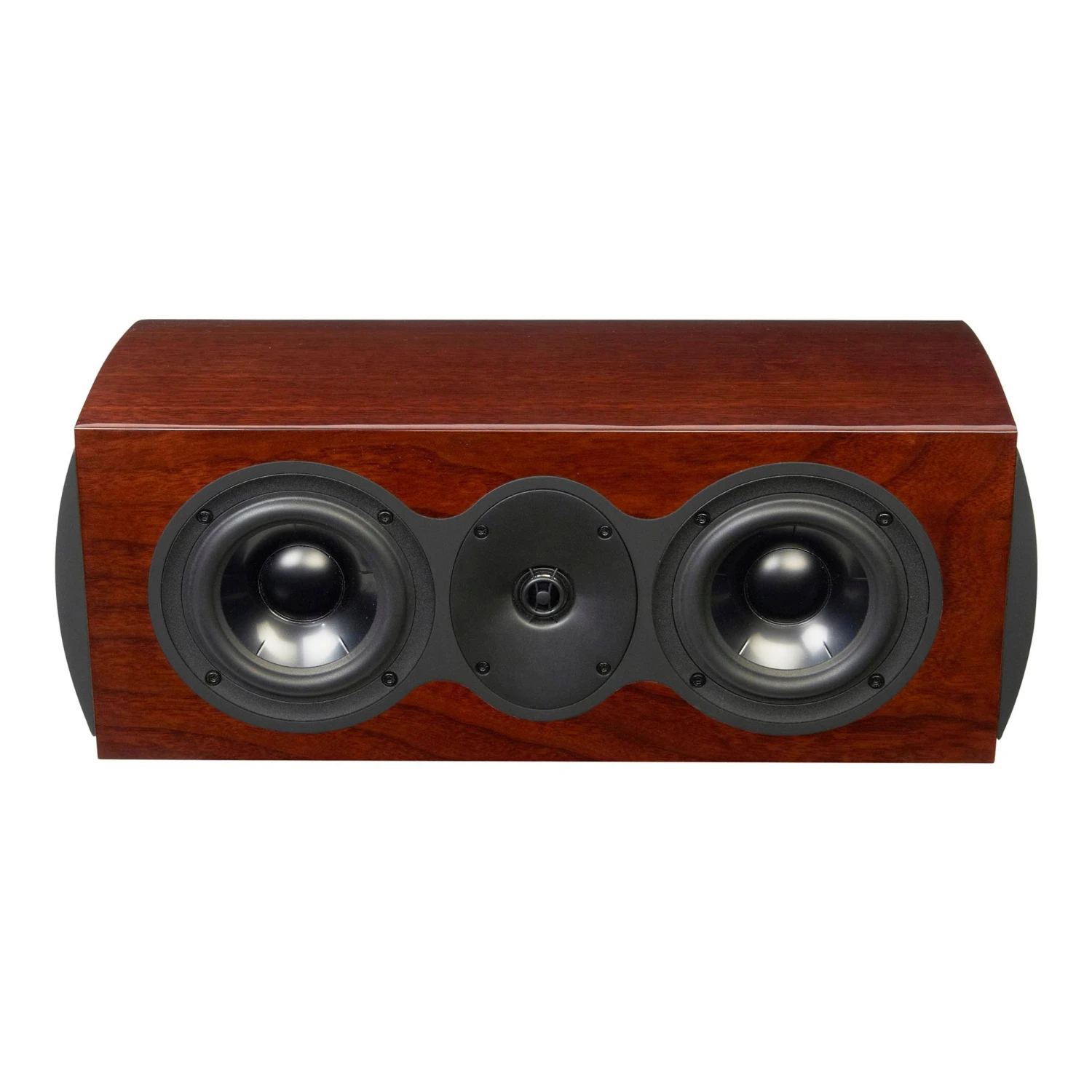

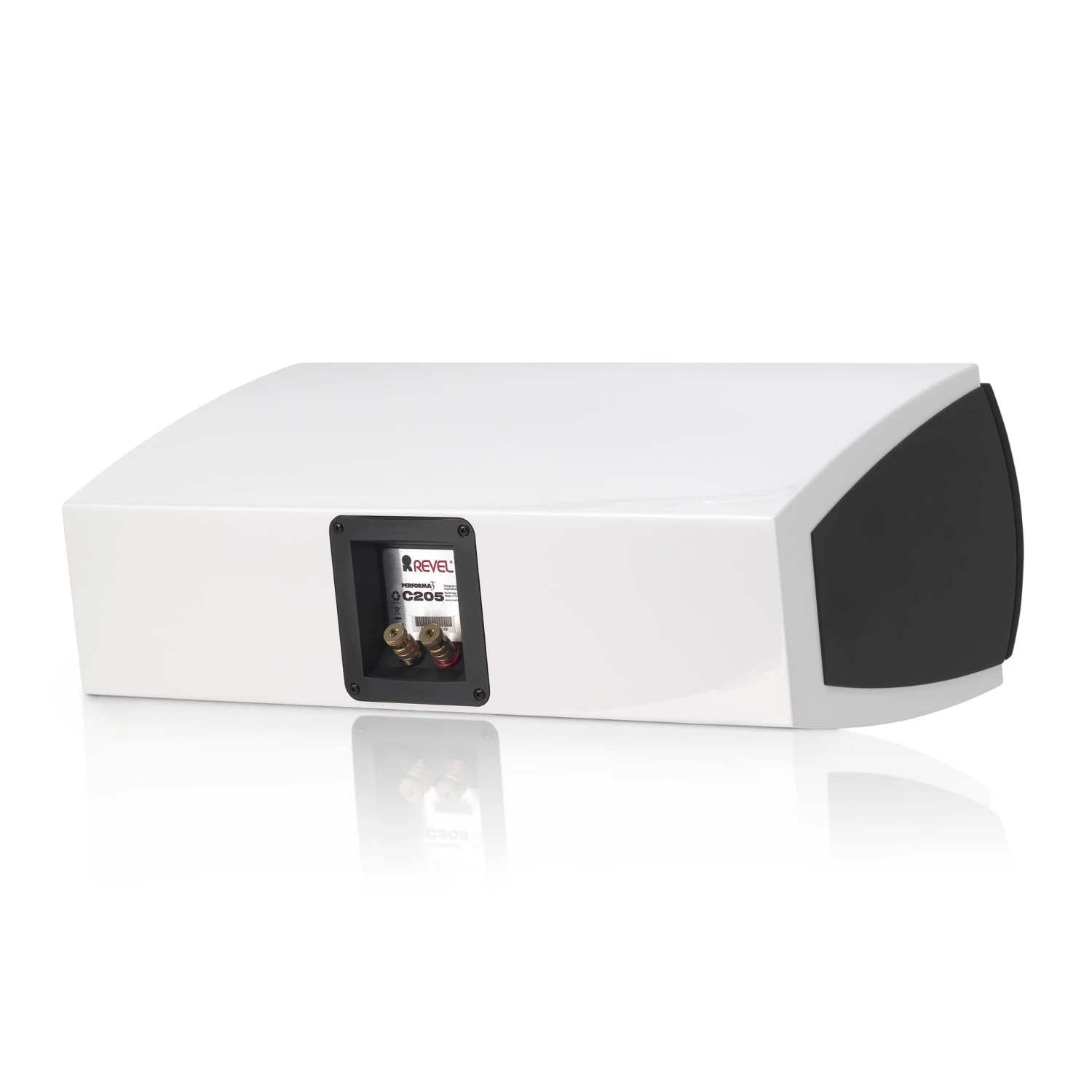

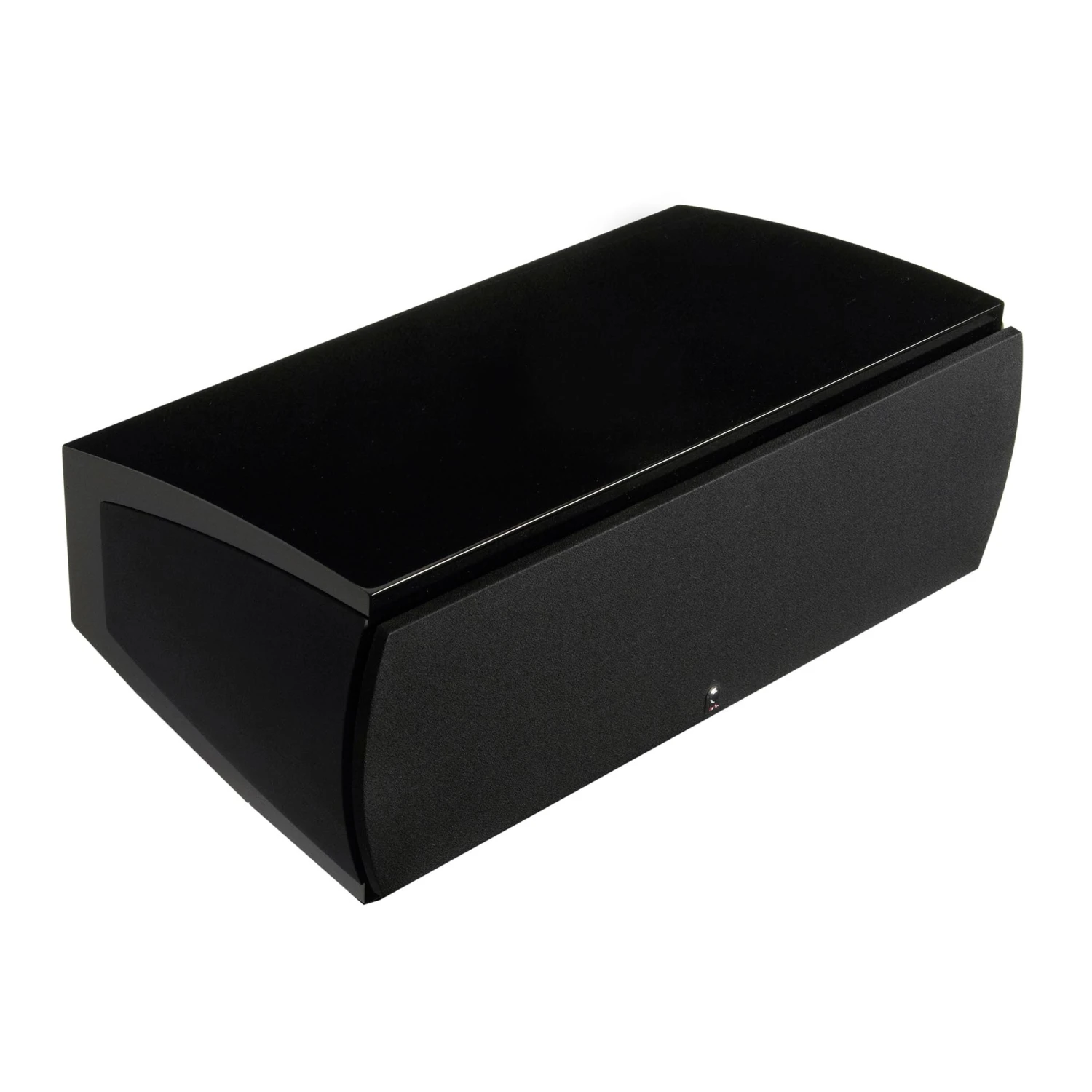

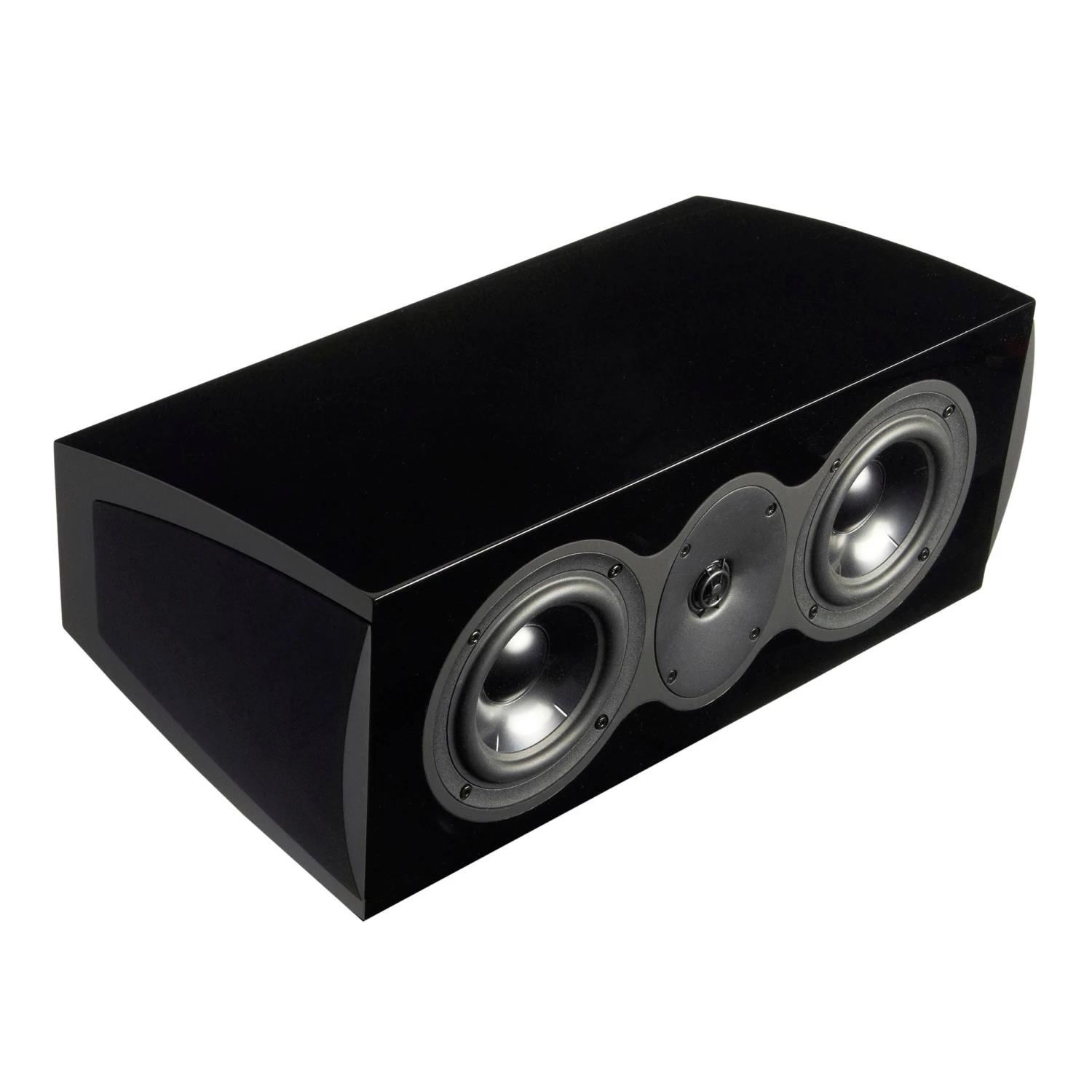

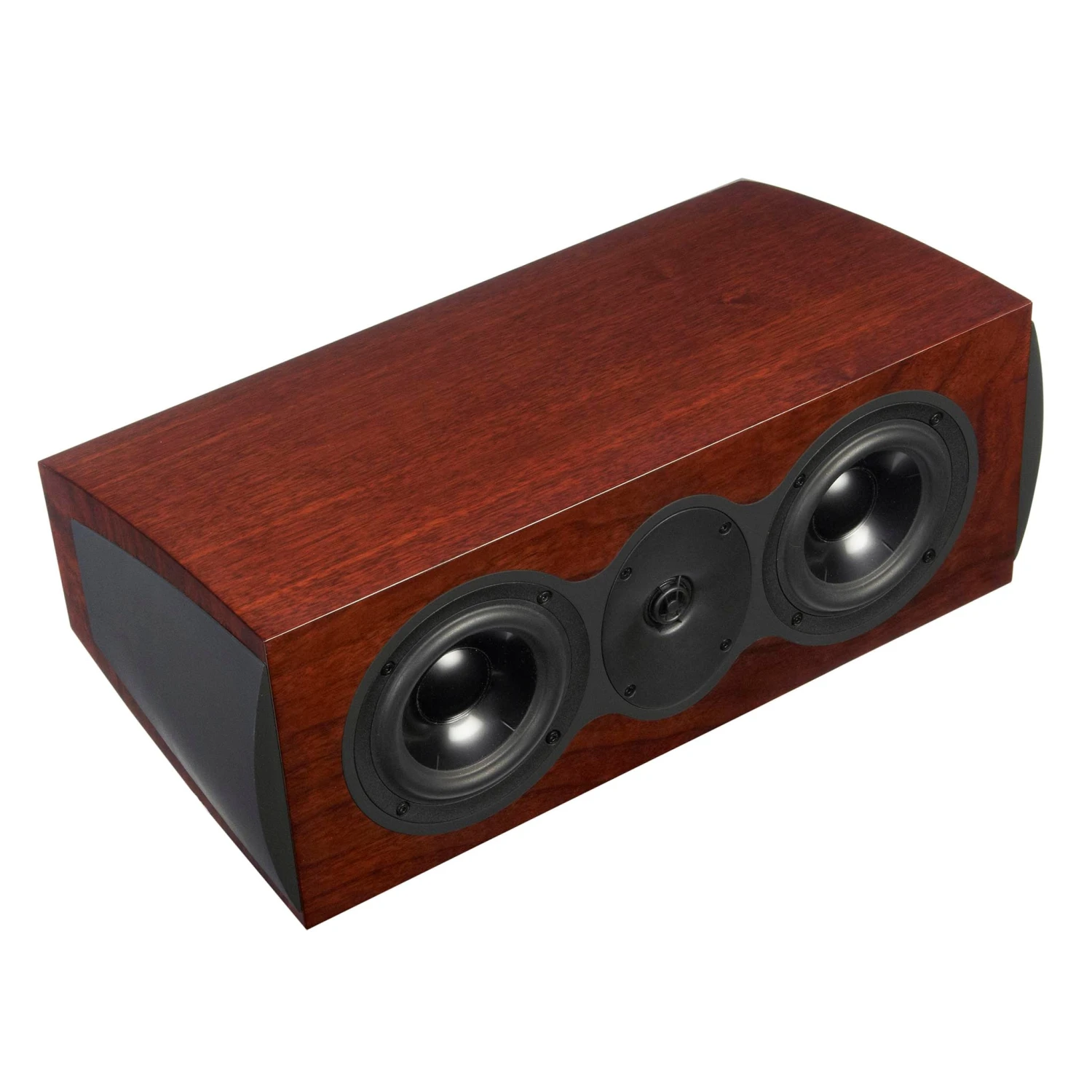

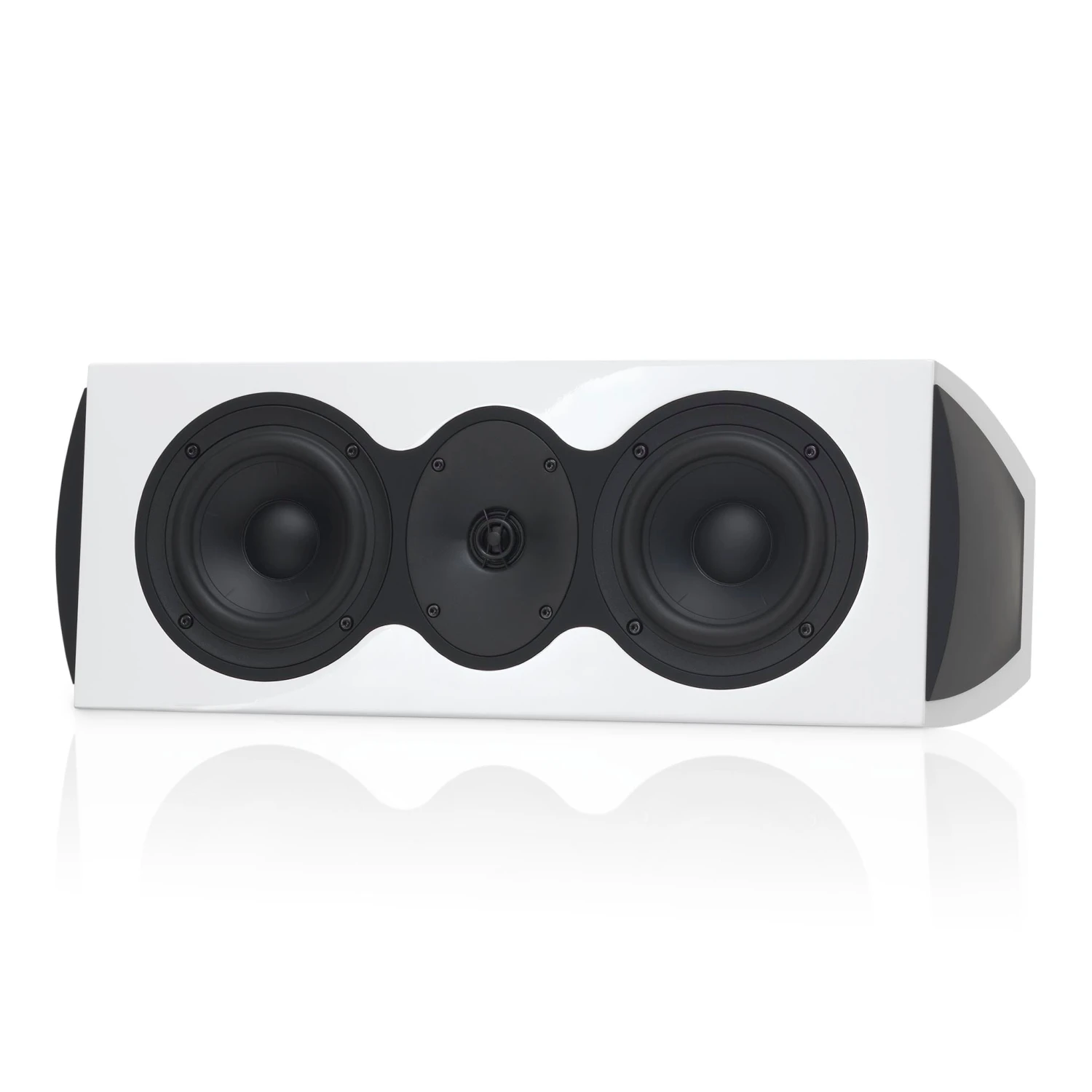

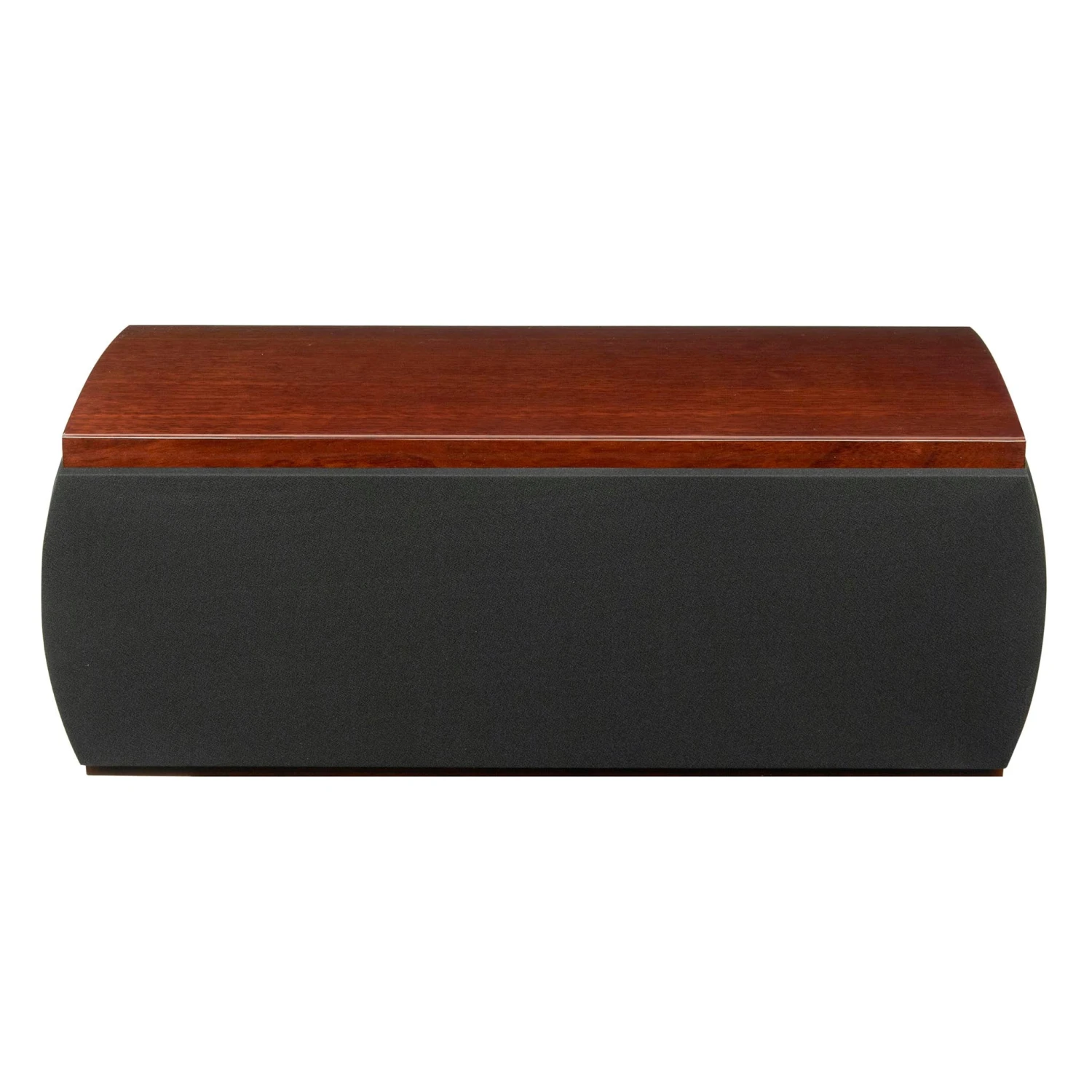

Revel Performa3 C205 Center Channel Loudspeaker

Revel C205 low-frequency transducers and midrange transducer feature distortion reduction mechanisms that stabilize the flux field during operation, assuring low distortion even at high listening volumes.

These precision transducers utilize ribbed aluminum cones for ideal piston-like behavior that eliminates a major source of resonances that are clearly audible in most other loudspeakers. Their cast aluminum frames eliminate another source of resonances that is common in many lesser-quality loudspeakers.

Features

• Transducers feature motor-system distortion-reduction mechanisms that stabilize the flux field during operation
• Ribbed aluminum cones achieve piston like behavior eliminating major sources of resonance
• New waveguides provide consistent sound over a wide listening area
• Enclosures created by Italian luxury cabinetmakers
• Fluid-model port designs keep distortion low
• Advanced crossovers optimize timbre accuracy both on-axis and throughout the room

Specifications

Enclosure type: Sealed
Low-frequency transducer: 2 x 5.25″ aluminum cone, with cast frame
High-frequency transducer: 1″ (25 mm) aluminum with acoustic lens waveguide
Low-frequency extension (-10 dB, -6 dB, -3 dB): 46 Hz, 62 Hz, 80 Hz
Nominal impedance: 8 ohm
Sensitivity (2.83 V/1 m): 89 dB
Crossover frequencies: 1.7 kHz
Dimensions, with grille (HWD): 7.9” x 21” x 11.5”
