REL Acoustics S/510 Subwoofer



“[Adding] the S/510 is like swapping for a bigger, and in many respects better, loudspeaker.”

— ALAN SIRCOM, HI-FI+



“Its speed, deftness and musicality aren’t to be sniffed at, but the S/510 also does blunt force trauma. A pair of these will deliver a balanced and composed low-frequency foundation that can give your favorite movie moments some serious slam and an epic amount of scale.”

— STEVE WITHERS, HOME CINEMA CHOICE



“The REL S/510 is an excellent subwoofer that’s beautifully designed and fantastically well made. It’s also an impressive performer, delivering exceptional bass in a tight and controlled fashion.”

— STEVE WITHERS, AVFORUMS



“The most dramatic upgrade to any mid-line REL ever.”

— JOHN HUNTER, REL ACOUSTICS



Upscale’s best-selling subwoofer models, the beloved REL S/3 SHO and S/5 SHO have been given a complete transformation into the new Serie S. The beautiful new cabinetry is contrasted by subtle gunmetal grey badging, and the feet have been replaced by ultra-stable rails, reflecting proportions from REL’s reference portfolio.

The S/510 uses the S/5’s NextGen2 amp and now features a full 500 W monoblock design. The increased power is needed to handle the special filters first used in the HT/1508 that offer almost twice the output below 40 Hz for .1/LFE applications.

The high- and low-inputs use a new design called PerfectFilter that offers a more musically natural performance with more air and openness. The already ultra-light driver cone from the original Serie S has been upgraded with a rear-mounted carbon fiber bracing that stiffens and deadens the cone almost 60% more than the original. Improved filtering results in greater speed, delicacy, and precision, offering a powerful and extremely flat response.

Finally, these are the first medium-chassis RELs designed to be stackable up to three units high on each side. This opens up the awe-inspiring scale of REL’s Reference Line Arrays to a whole new audience.

Specifications

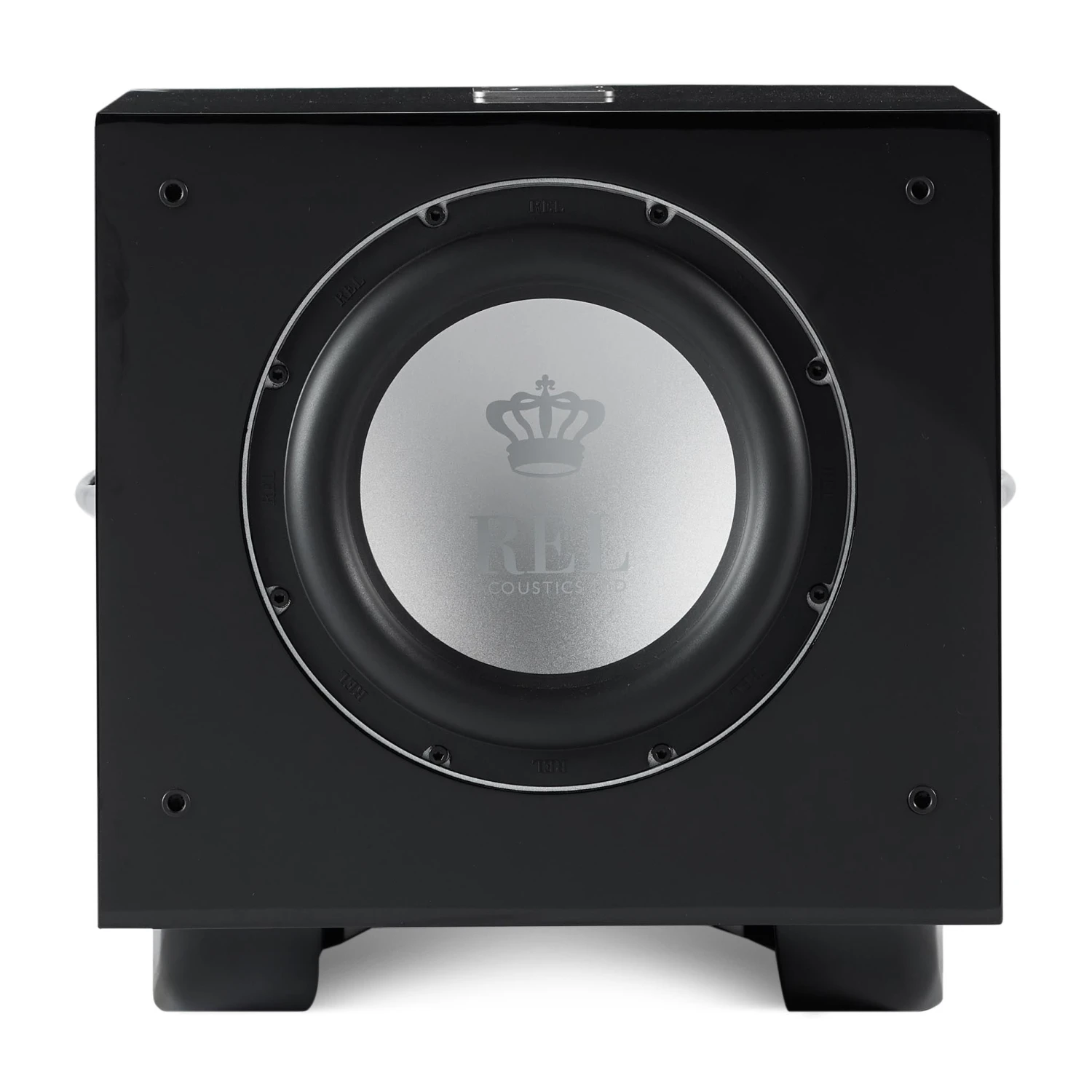

Active drive unit: Front-firing 10″ woofer, 9.8″ long-throw, die-cast aluminum chassis

Passive radiator: 12″ driver, 11.8″ throw

Low-frequency response in room: 20 Hz at -6 dB

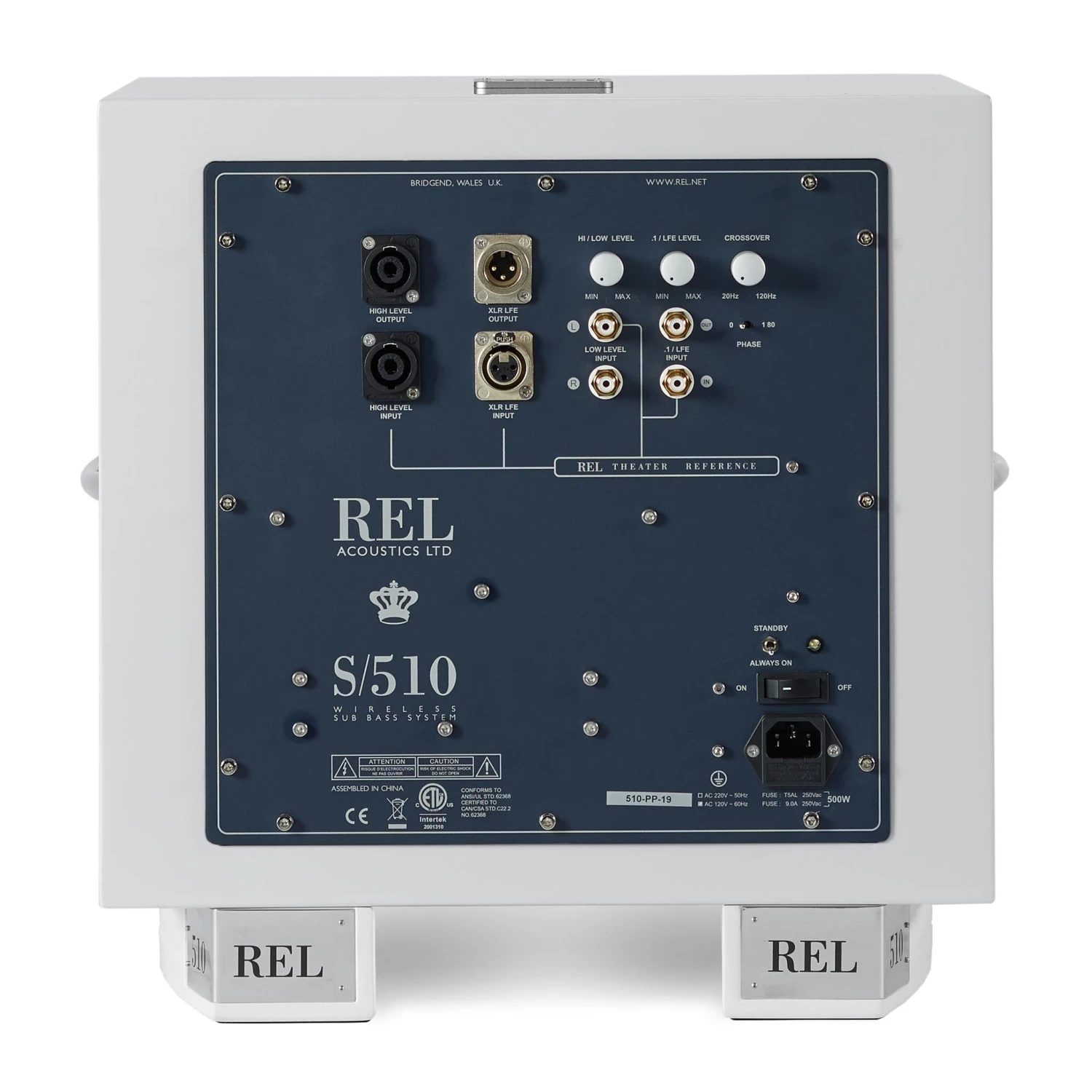

Inputs: High-level Neutrik Speakon, stereo low-level RCA, LFE RCA, LFE XLR

Gain control range: 80 dB

Power output: 500 W RMS

Phase switch: 0 or 180 degrees

Amplifier type: NextGen2 class D

Wireless: REL Airship, sold separately

Protection system: Fully electronic with SET-SAFE, DC fault, output short

Fuse: 9 A semi-delay

Dimensions
WHD, including feet and rear panel controls: 15.7″ x 16″ x 18.25″. Add 1.75″ when using high-level connector
Weight: 70 lb
Shipping weight: 80.7 lb

Finish: Gloss Piano Black or Gloss White Lacquer

Supplied accessories: Power cord, 32 ft Neutrik Speakon high-level interconnect, user manual
