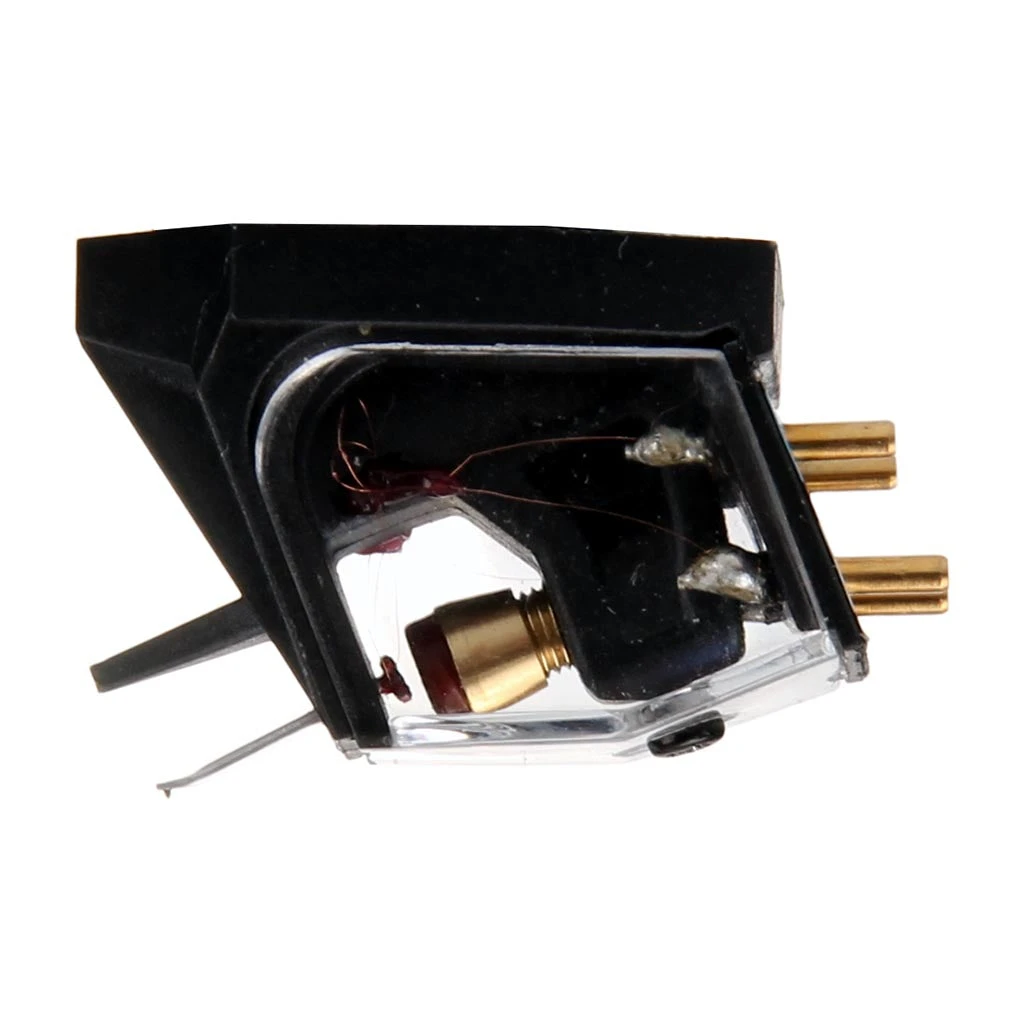

Rega Ania Moving Coil Cartridge

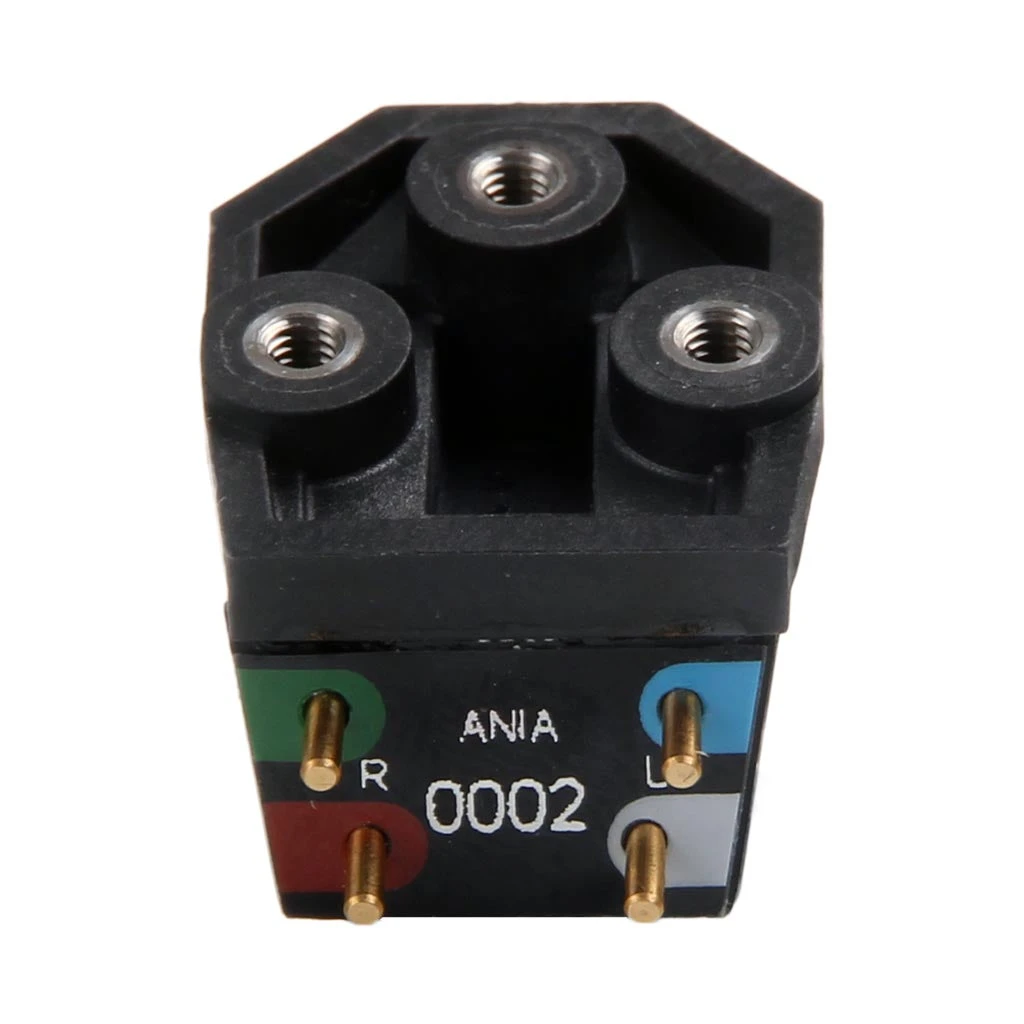

The Ania was inspired by the success of Rega’s Apheta and Aphelion MC models. Ania uses the same complex hand wound micro coil found in the rest of the range, and is housed in a unique PPS highly rigid body. This body is an exceptionally accurate design that includes Rega’s three-point fixing to optimize connection to the tonearm headshell and automatically sets overhang when fitted to a Rega tonearm.

The new body is protected by a CAD-designed, clear rigid cover to protect the internal fine wires, making handling whilst fitting, risk free. The Ania features a super high-powered, neodymium magnet and a coil meticulously hand wound onto an iron micro cross. This miniature assembly allows greater freedom to track the vinyl groove ensuring even more detail is extracted from the vinyl.

Features

• Iron micro cross assembly
• One of the worlds smallest MC generators
• Cutting edge high power neodymium magnets
• Elliptical profile stylus
• Aluminum cantilever
• Coil constructed from 0.018 mm fine wire
• Lifetime warranty against manufacturing defects

Specifications

Tracking pressure: 1.75 – 2 g

Input impedance: 100 Ω

Output impedance: ​10 Ω

Nominal output voltage: 350 μV

Impedance: 100 Ω

Capacitance: 1,000 pF

Gain setting: High (‘On’ position for Rega phono stages)
