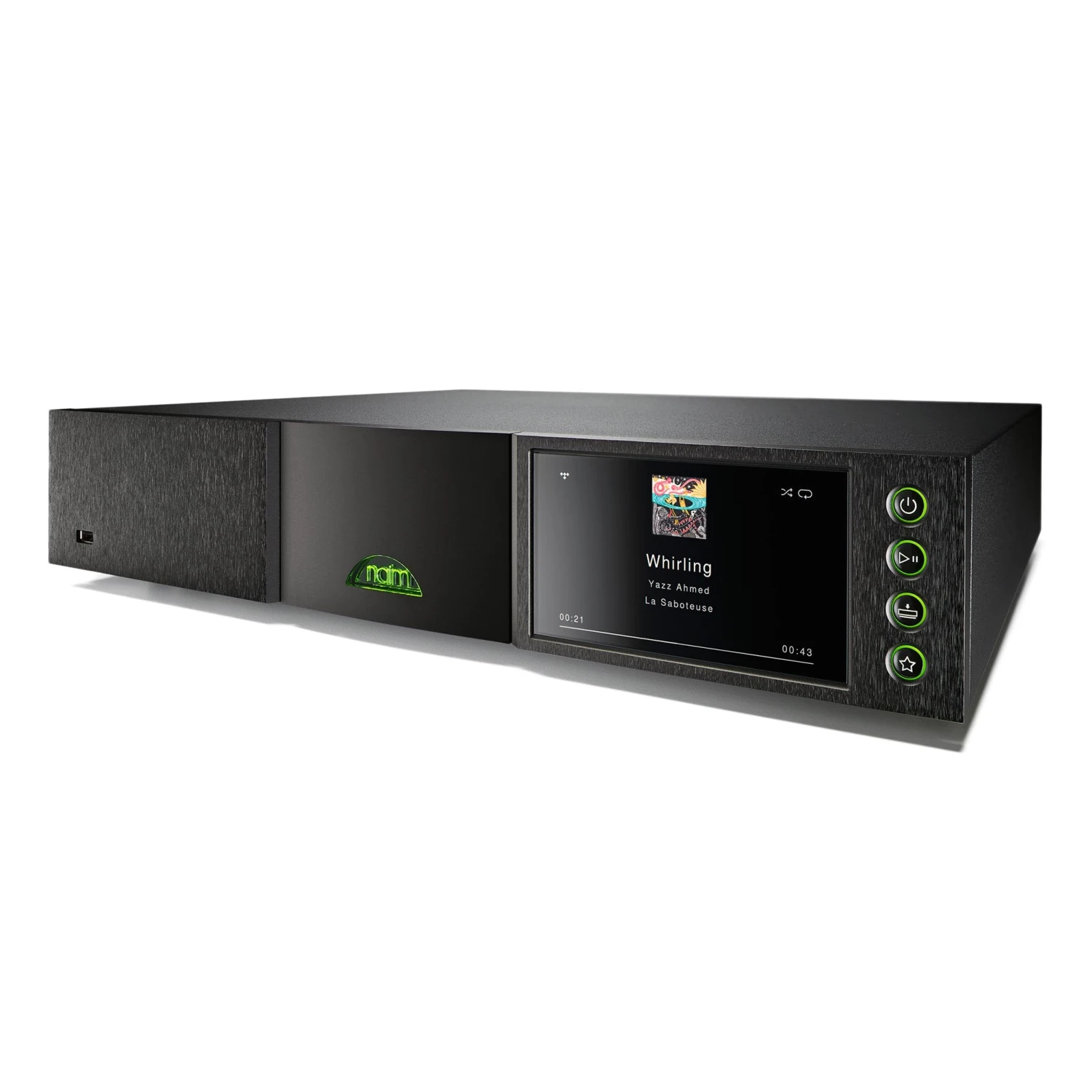

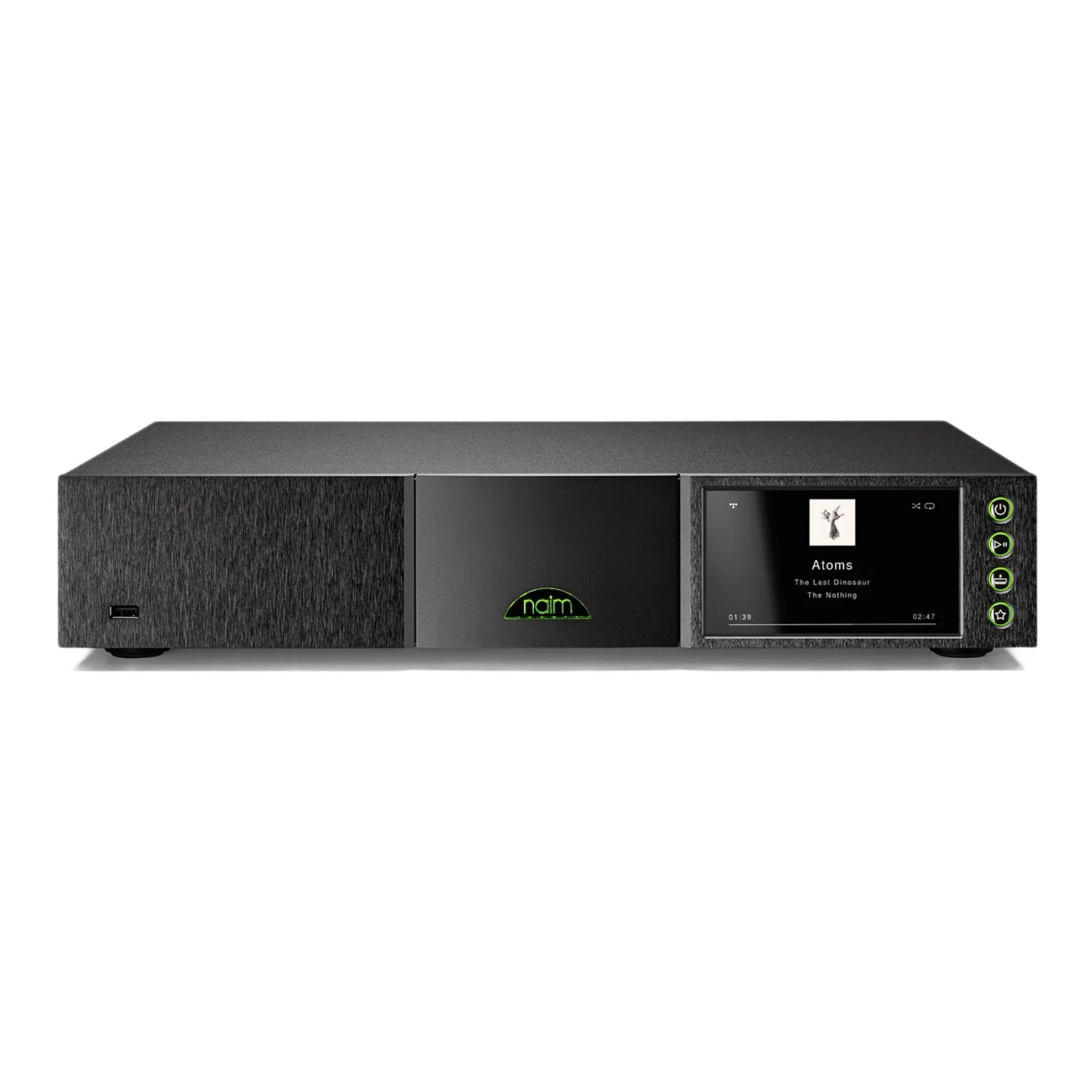

Naim NDX 2 Network Music Player

With its world-class performance, the versatile and upgradable NDX 2 embodies current state of the art. A host of features such as high-res UPnP streaming, AirPlay, Chromecast built-in, Bluetooth (aptX HD), Spotify Connect, TIDAL, Roon compatibility, vTuner internet radio and multiroom streaming as well as digital and USB inputs provide all the connectivity you could wish for.

Naim’s main focus in developing the NDX 2 network player, however, was its performance. Along with Naim’s bespoke streaming platform, it implemented an upgraded DAC and discrete analog stages. These and numerous other improvements over its acclaimed predecessor make the NDX 2 a sonic force to be reckoned with, offering highly immersive and lively replay quality.

Features

• UPnP-enabled to allow streaming of audio files at up to 32bit/384kHz resolution from Naim Audio hard disk servers, network-attached storage (NAS) devices or any home computer
• Supports a broad range of music formats: WAV, FLAC, DSD, Apple Lossless, AIFF, AAC, Windows Media-formatted files, M4A and MP3. Gapless playback on all file formats
• Four 24bit/192kHz capable digital inputs (S/PDIF) to support optimum connection to external sources
• 5” color display presenting album artwork as well as track information
• Built-in Chromecast allows you to stream from hundreds of supported smartphone or tablet apps (192kHz)
• Apple AirPlay – stream music from your iOS device or from iTunes and Apple Music
• Spotify Connect built-in to stream millions of songs from the world’s most popular streaming service
• Native support for TIDAL streaming service with free 90 day trial of lossless HiFi tier
• Front-panel USB port for replay of MP3 player and USB-stored audio (1.6A charge)
• vTuner 5* full-service internet radio
• Multiroom & Party Mode compatible
• iOS and Android Naim Audio app for intuitive control
• Bluetooth connectivity with aptX HD codec for quality audio playback
• Thanks to RC5 system integration, you can control compatible amplifiers that are connected to your network player directly from the Naim app on a phone or tablet.
• Bi-directional, Zigbee®-compatible remote control
• Roon ready – turning your music collection into a beautifully laid out catalog

Specifications

Audio Inputs

Streaming	Chromecast built-in, Apple AirPlay, TIDAL, Spotify® Connect, Bluetooth (AptX HD), Internet Radio, UPnP™ (hi-res streaming), Roon Ready
USB	2 x USB Type A socket (front and rear – 1.6A charge)
Digital (S/PDIF)	2 x Optical TOSLink (up to 24bit/96kHz) 1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs) 1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)

Audio Outputs

Analogue

1 x RCA pair 1 x 5-pin DIN

Connectivity

Updates	Update your system wirelessly via the Naim app
Network	Ethernet (10/100Mbps), WiFi (802.11 b/g/n/ac with external antennae)

Formats

Multiroom	Party Mode Streaming: Sync up to six Naim products and control via the Naim app
Internet Radio Formats	Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS
Internet Radio Provider	vTuner premium 5*
Audio Formats	WAV – up to 32bits/384kHz FLAC and AIFF – up to 24bit/384Hz ALAC (Apple Lossless) – up to 24bit/384Hz MP3 – up to 48kHz, 320kbit (16 bit) AAC – up to 48kHz, 320kbit (16 bit) OGG and WMA – up to 48kHz (16 bit) DSD – 64 and 128Fs M4A – up to 48kHz, 320kbit (16 bit) Note: Gapless playback supported on all formats.

Physical

Dimensions	87mm x 432mm x 314mm (H x W x D)
Finishes	Brushed and anodised aluminium
Weight	10kg

Power

Power Consumption

Typical use: 19W Network standby mode: <2W Deep sleep: <0.5W

Ripping and Storage

Storage

2 x USB Type A socket (front and rear – 1.6A charge)

Supplied with

Supplied with

Zigbee® remote (inc. batteries), Power-Line Lite cable (UK denominations only), Burndy link plug, 5-pin DIN interconnect cable, BNC to RCA adaptor, Wi-Fi (x2) and Bluetooth antennae, cleaning cloth, quick start guide

Upgrades

Mains Cable	Power-Line
Power Supply	555 PS DR/ XPS/ XP5 XS
Other	Super Lumina / Hi-Line

User Control

App Control	Naim App for iOS and Android
Front Panel	5″ colour LCD display and four buttons
Handheld	Zigbee® RF4CE
