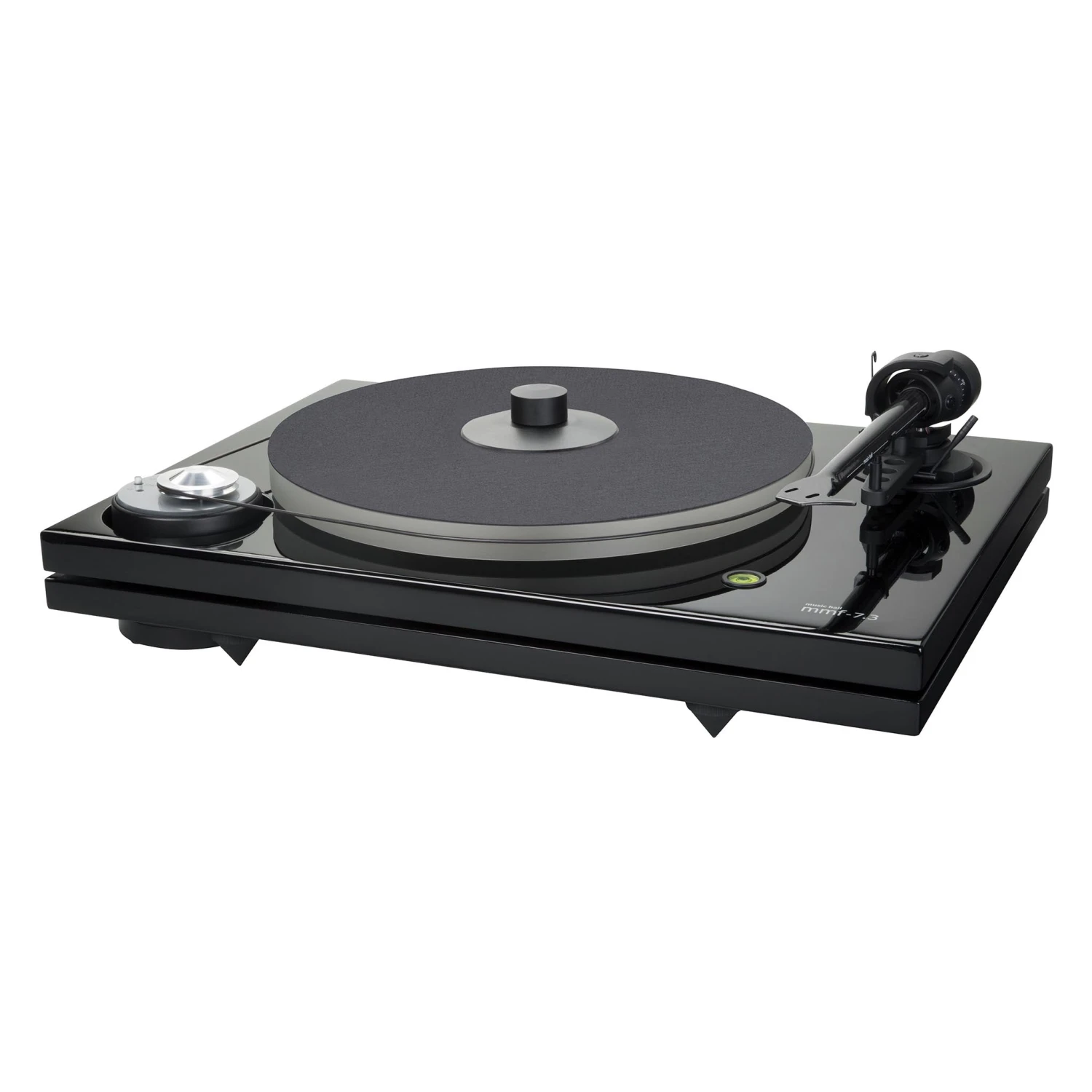

MUSIC HALL MMF-7.3



The Music Hall MMF-7.3 turntable is a two-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by Music Hall.

Sorbothane hemispheres separate the two platforms and provide additional suspension and vibration damping. The MMF-7.3 comes in a high-gloss piano black lacquer finish.

The distinctive design of the MMF-7.3 isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the adjustable tip-toe feet which are mounted on the bottom platform. The motor speed controls, and wiring are isolated on their own platform and completely decoupled from the turntable.

Feature List

• Music Hall’s unique dual plinth construction
• One-piece full carbon fiber tonearm
• Counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
• Completely isolated/decoupled DC motor with 33⅓ and 45 rpm speed controls located in the front left corner of the turntable, thus canceling any potential vibration from the motor/belt to the cartridge
• Motor sits on its own resonance damping puck
• Ortofon 2M Bronze cartridge with a nude fine line stylus
  ($440 value)
• The supplied cartridge is properly aligned and mounted
• Precision stainless steel main bearing sheathed in Teflon® for noise-free, fluid operation
• Non-resonant acrylic platter with metal screw-on record clamp
  and soft felt mat
• High quality gold RCA connectors and detachable phono cable
• Adjustable tip toe feet with anti scratch cups
• Low noise fully manual belt drive design
• Built-in round spirit level for proper leveling
• Dust cover and 45rpm adaptor included
• Excellent instruction manual and easy assembly

Technical Specifications

Power supply	15V / 0-0.8mA DC universal power supply
Power connection	100 – 240 Volt 50 or 60 Hz
Standby power consumption	< 1 W
Speeds	33⅓ rpm & 45 rpm electronic speed change
Wow and flutter	± 0.10 %
Speed deviation	± 0.06%
Rumble max	> – 73 db
Effective tonearm length	9 in. (230 mm)
Tonearm weight	250 g (without counterweight)
Effective tonearm mass	8.5 g
Overhang	18 mm
