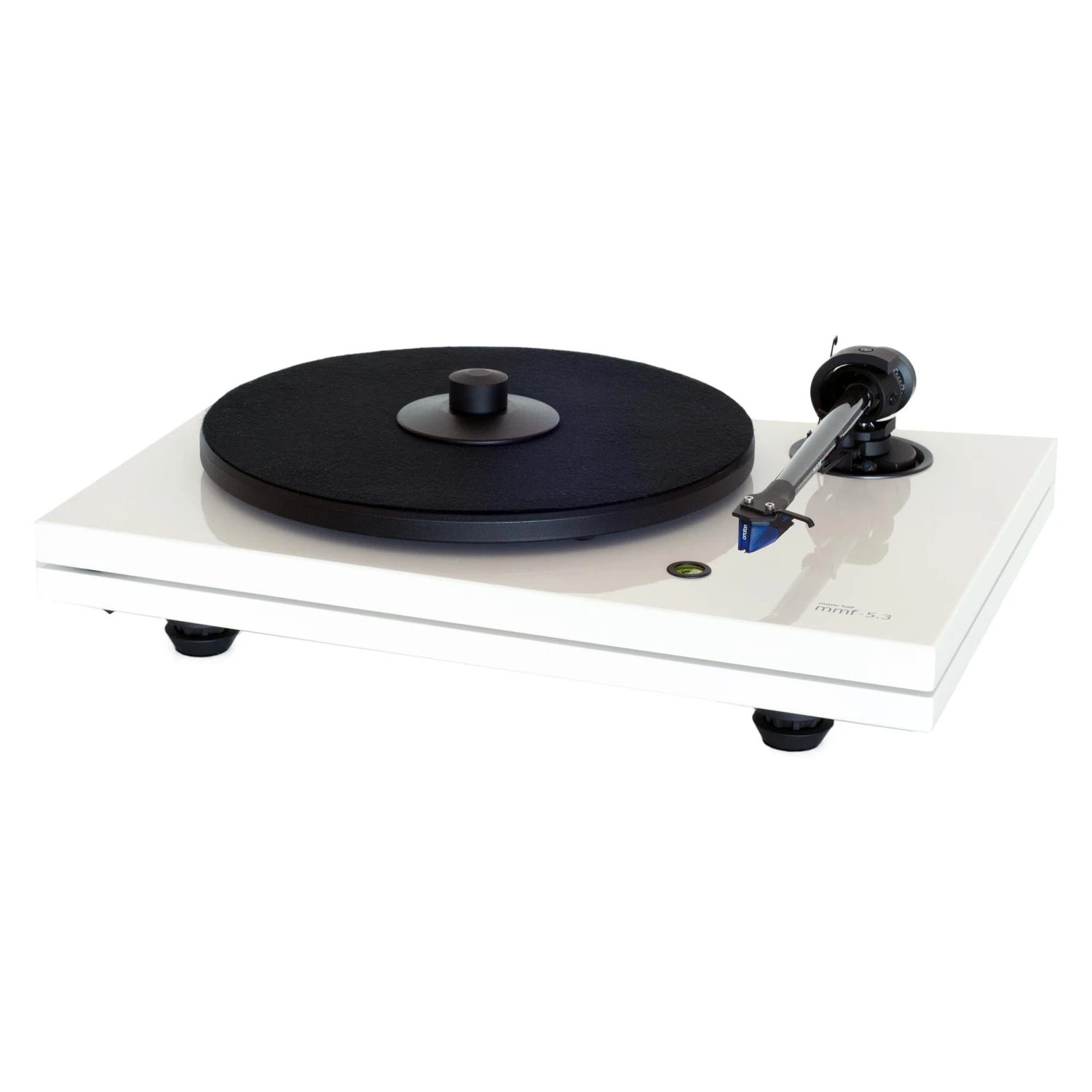

MUSIC HALL MMF-5.3WH

The Music Hall MMF-5.3WH special edition turntable is a two-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by Music Hall.

The distinctive design isolates the critical sound reproducing components: platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform. Sorbothane hemispheres separate the two platforms and provide suspension and vibration damping.

feature list

• Music Hall’s unique dual-plinth construction
• Special gloss white plinth
• Sorbothane isolation orbs
• Top tier 9” carbon fiber tonearm with flexible internal wire
  drawn from high purity copper
• Counterweight’s center of gravity is level with the stylus tip,
  is decoupled from the arm, and acts as a resonance damper
• DC synchronous motor for superior speed stability,
  separately isolated on the lower platform
• Two-speed stepped motor pulley for 33⅓ and 45 rpm
• Ortofon 2M Blue cartridge with replaceable nude
  fine line diamond stylus ($236 value)
• The cartridge supplied is properly aligned and mounted
• Precision stainless steel main bearing sheathed in Teflon®
  for noise-free fluid operation
• Main bearing provides noise free fluid operation
• Dynamically balanced alloy platter with soft felt mat
• Screw-on record clamp
• High quality gold RCA connectors and detachable phono cable
• Special vibration damping adjustable feet
• Built-in round spirit level for proper leveling
• Low noise fully manual belt drive design
• Excellent instruction manual and easy assembly
• Dust cover and 45rpm adaptor included

Technical Specifications

Power supply	15V / 0-0.8mA DC universal power supply
Power connection	100 – 240 Volt 50 or 60 Hz
Standby power consumption	< 1 W
Speeds	33⅓ rpm (manual change to 45 rpm)
Wow and flutter	± 0.10 %
Speed deviation	± 0.80%
Rumble max	> – 71 db
Effective tonearm length	9 in. (230 mm)
Tonearm weight	250 g (without counterweight)
Effective tonearm mass	8.5 g
Overhang	18 mm
