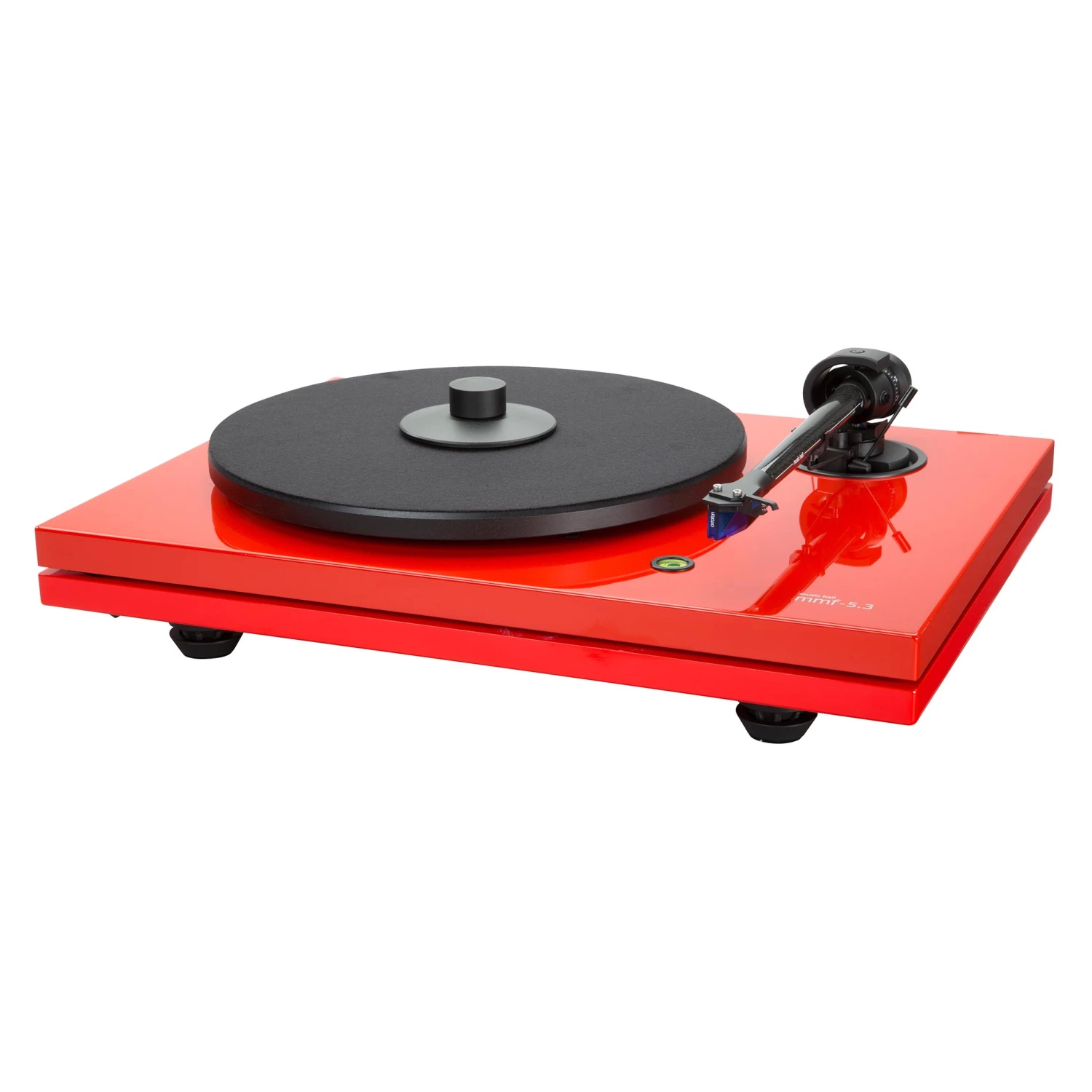

MUSIC HALL MMF-5.3LE

The Music Hall MMF-5.3 turntable is a two-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by Music Hall.

The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform. Viso-elastic cones separate the two platforms and provide vibration damping. The MMF-5.3 comes complete with an Ortofon 2M Blue cartridge.



Feature List

• Music Hall’s unique dual-plinth construction
• Special Ferrari red plinth
• Sorbothane isolation orbs
• Top tier 9” carbon fiber tonearm with flexible internal wire
  drawn from high purity copper
• Counterweight’s center of gravity is level with the stylus tip,
  is decoupled from the arm, and acts as a resonance damper
• DC synchronous motor for superior speed stability,
  separately isolated on the lower platform
• Two-speed stepped motor pulley for 33⅓ and 45 rpm
• Ortofon 2M Blue cartridge with replaceable nude
  fine line diamond stylus ($236 value)
• The cartridge supplied is properly aligned and mounted
• Precision stainless steel main bearing sheathed in Teflon®
  for noise-free fluid operation
• Main bearing provides noise free fluid operation
• Dynamically balanced alloy platter with soft felt mat
• Screw-on record clamp
• High quality gold RCA connectors and detachable phono cable
• Special vibration damping adjustable feet
• Built-in round spirit level for proper leveling
• Low noise fully manual belt drive design
• Excellent instruction manual and easy assembly
• Dust cover and 45rpm adaptor included

Technical Specifications

Power supply	15V / 0-0.8mA DC universal power supply
Power connection	100 – 240 Volt 50 or 60 Hz
Standby power consumption	< 1 W
Speeds	33⅓ rpm (manual change to 45 rpm)
Wow and flutter	± 0.10 %
Speed deviation	± 0.80%
Rumble max	> – 71 db
Effective tonearm length	9 in. (230 mm)
Tonearm weight	250 g (without counterweight)
Effective tonearm mass	8.5 g
Overhang	18 mm
