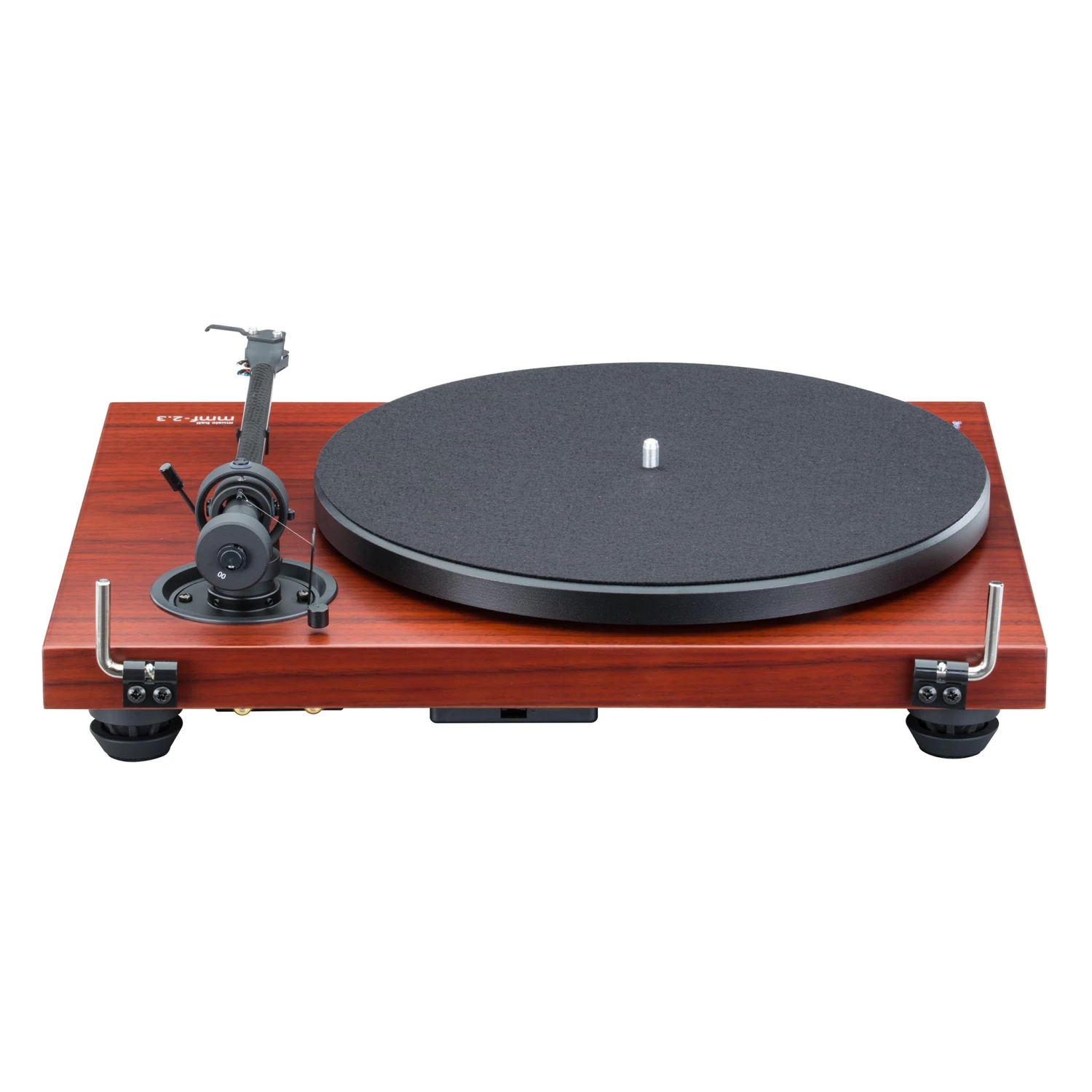

MUSIC HALL MMF-2.3SE

The Music Hall MMF-2.3SE turntable is a two-speed belt driven audiophile turntable with a rosenut veneered plinth at a budget price.

It is constructed using high quality components and it comes complete with a tonearm and cartridge mounted. The construction has been simplified to focus on the critical components: the bearing, the motor, and the tonearm.

Feature List

• Gorgeous and classic-looking rosenut real wood veneer finish
• Special vibration damping adjustable feet
• Top tier 8.6” carbon fiber tonearm with aluminum headshell
• Low noise fully manual belt-drive design
• Separately isolated DC synchronous motor for superior speed stability
• Two-speed stepped motor pulley for 33⅓ and 45 rpm
• Music Hall Spirit moving-magnet cartridge with replaceable
  Elliptical stylus ($100 value)
• The cartridge supplied is properly aligned and mounted
• High precision stainless steel and bronze bearing assembly
  for quiet fluid operation
• High quality gold RCA connectors with detachable phono cable
• Full-size alloy platter and felt mat
• Excellent instruction manual
• Quick and easy to assemble
• Dust cover and 45 rpm adaptor



technical specifications

Power supply	15V / 0-0.8mA DC universal power supply
Power connection	100 – 240 Volt 50 or 60 Hz
Standby power consumption	< 1 W
Speeds	change speed with the touch of a button. electronic speed control for 33, 45, and 78 rpm. special 78 belt included.
Wow and flutter	± 0.10 %
Speed deviation	± 0.80%
Rumble max	> – 68 db
Effective tonearm length	8.6 in. (218.5 mm)
Effective arm mass	7.0 g
Overhang	18.5 mm
