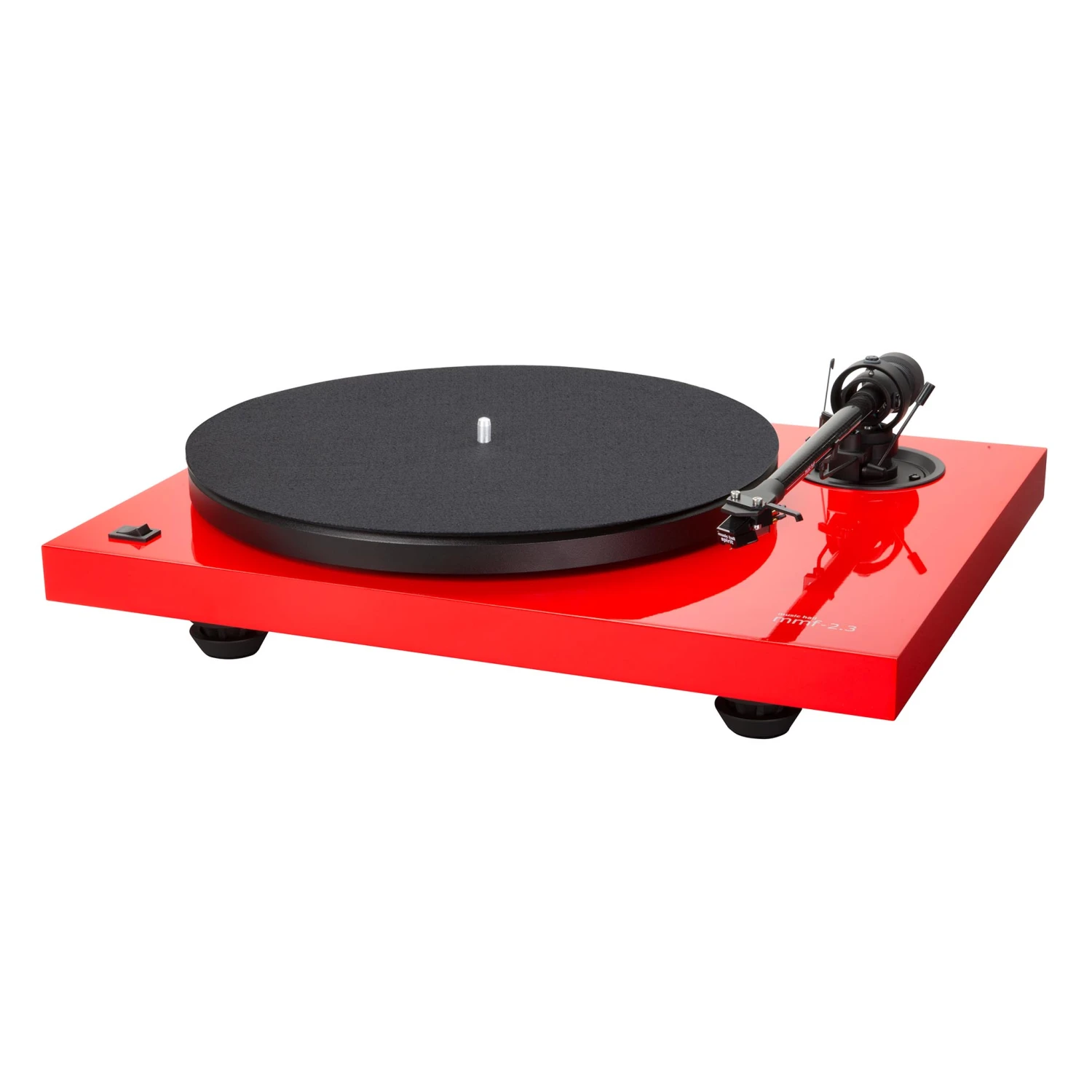

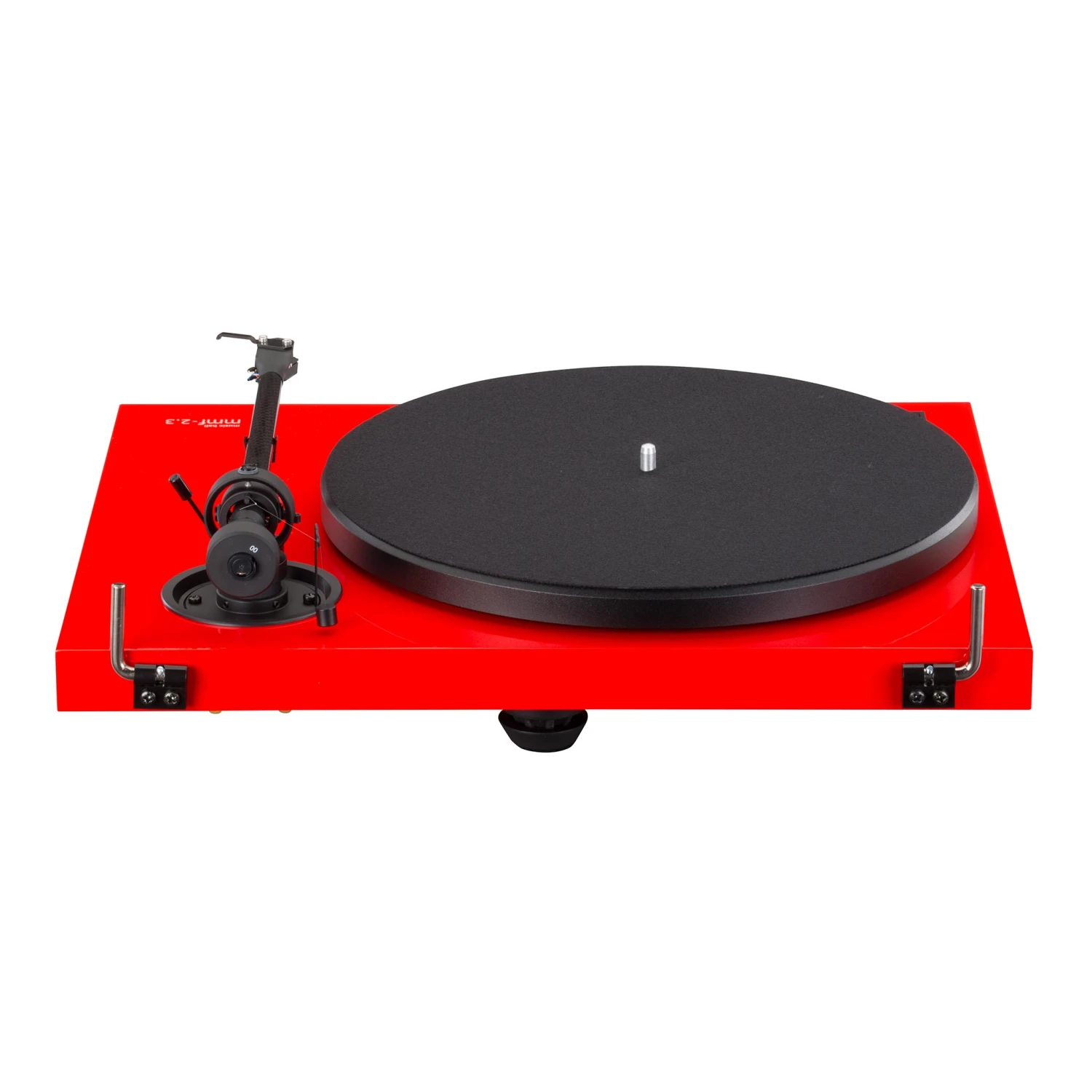

MUSIC HALL MMF-2.3LE

The Music Hall MMF-2.3LE turntable is a two-speed belt driven audiophile turntable with special Ferrari red plinth at a budget price.

It is constructed using high quality components and it comes complete with a tonearm and cartridge mounted. The construction has been simplified to focus on the critical components: the bearing, the motor, and the tonearm.

Feature List

Gorgeous high-gloss Ferrari red lacquer finish
Special vibration damping adjustable feet
Top tier 8.6” carbon fiber tonearm with aluminum headshell
Low noise fully manual belt-drive design
Separately isolated DC synchronous motor for superior speed stability
Two-speed stepped motor pulley for 33⅓ and 45 rpm
Music Hall Spirit moving-magnet cartridge with replaceable elliptical stylus ($100 value)
The cartridge supplied is properly aligned and mounted
High precision stainless steel and bronze bearing assembly for quiet fluid operation
High quality gold RCA connectors with detachable phono cable
Full-size alloy platter and felt mat
Excellent instruction manual
Quick and easy to assemble
Dust cover and 45 rpm adaptor



Technical Specifications

Power supply	15V / 0-0.8mA DC universal power supply
Power connection	100 – 240 Volt 50 or 60 Hz
Standby power consumption	< 1 W
Speeds	33⅓ rpm (manual change to 45 rpm)
Wow and flutter	± 0.10 %
Speed deviation	± 0.80%
Rumble max	> – 68 db
Effective tonearm length	8.6 in. (218.5 mm)
Effective arm mass	7.0 g
Overhang	18.5 mm
