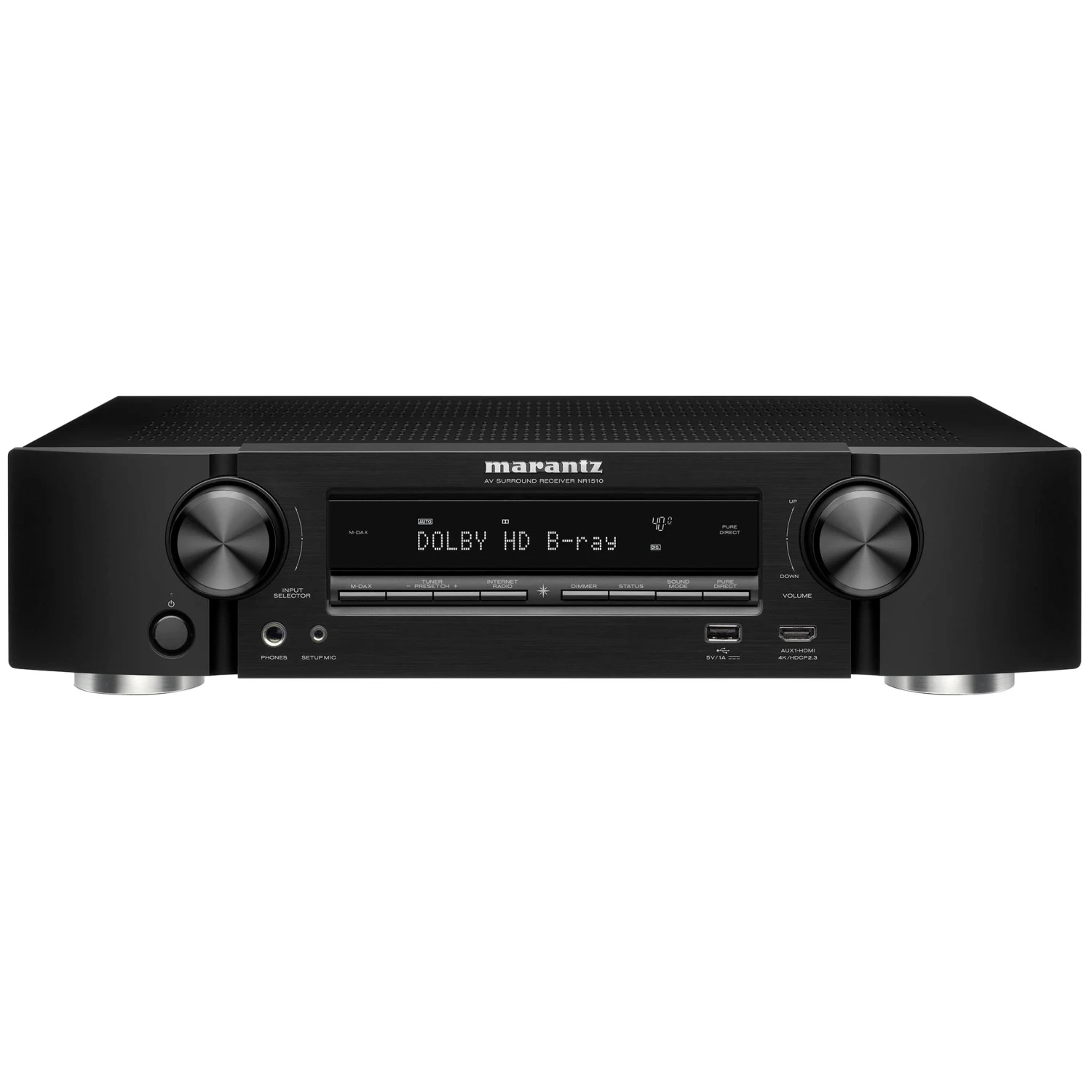

Marantz NR1510 5.2 Channel Surround Receiver

Slim 5.2Ch 4K Ultra HD AV Receiver with HEOS Built-in

Experience exceptional audio performance from this slim profile receiver that offers elevated surround sound and high-fidelity audio from a compact chassis. At half the height of a traditional AV receiver, the NR1510 features the latest in HDMI connectivity and delivers high-resolution surround sound from Dolby TrueHD and DTS-HD Master Audio. Six HDMI inputs — including one on the front panel — support the latest video and picture formatting and eARC transmission of enhanced audio. Stream music from popular online sources, and easily connect your analog turntable to the receiver to enjoy your vinyl collection. Control the NR1510 with voice control compatibility via Amazon Alexa, Google Assistant and Apple Siri.

Features

• Half the height of a traditional AV receiver
• 5-channel discrete power amplifier, 50W per channel (8-ohm, 20Hz – 20kHz, 0.08% THD, 2 Ch. drive)
• 6 HDMI inputs with full HDCP 2.3 support
• Supports Dolby Vision, Hybrid Log-Gamma (HLG), eARC and ALLM for enhanced picture and audio
• 4K/60 Hz full-rate pass-through, 4:4:4 color resolution, HDR10, and BT.2020
• Surround format support for Dolby TrueHD and DTS-HD Master Audio
• ALAC, FLAC and WAV lossless file decoding up to 24-bit/192-kHz for high-resolution listening
• HEOS Built-in for multi-room streaming, music streaming and voice control
• Built-in Wi-Fi with 2.4GHz/5GHz dual band support (dual antenna)
• Supports all major voice control agents and streaming services
• Integrated phono input to directly connect your turntable



Specifications

Multichannel Surround

• DTS HD Master
• Multichannel stereo
• Audyssey MultEQ XT32

Network

• HEOS multiroom and streaming, Wi-Fi, Bluetooth, AirPlay 2
• FLAC / ALAC / WAV up to 192/24
• DSD up to DSD5.6
• TuneIn internet radio
• Spotify Connect, Deezer, Tidal, Napster, Pandora, Sirius XM

HDMI

No. of inputs: 7 back, 1 front
No. of outputs: 2 main, 1 zone
Supported formats / features:

• 4K 60 Hz 4:4:4, HDCP 2.3
• Enhanced ARC
• HLG / Dolby Vision
• 3D signal pass-through
• HDMI pass-through in stand-by

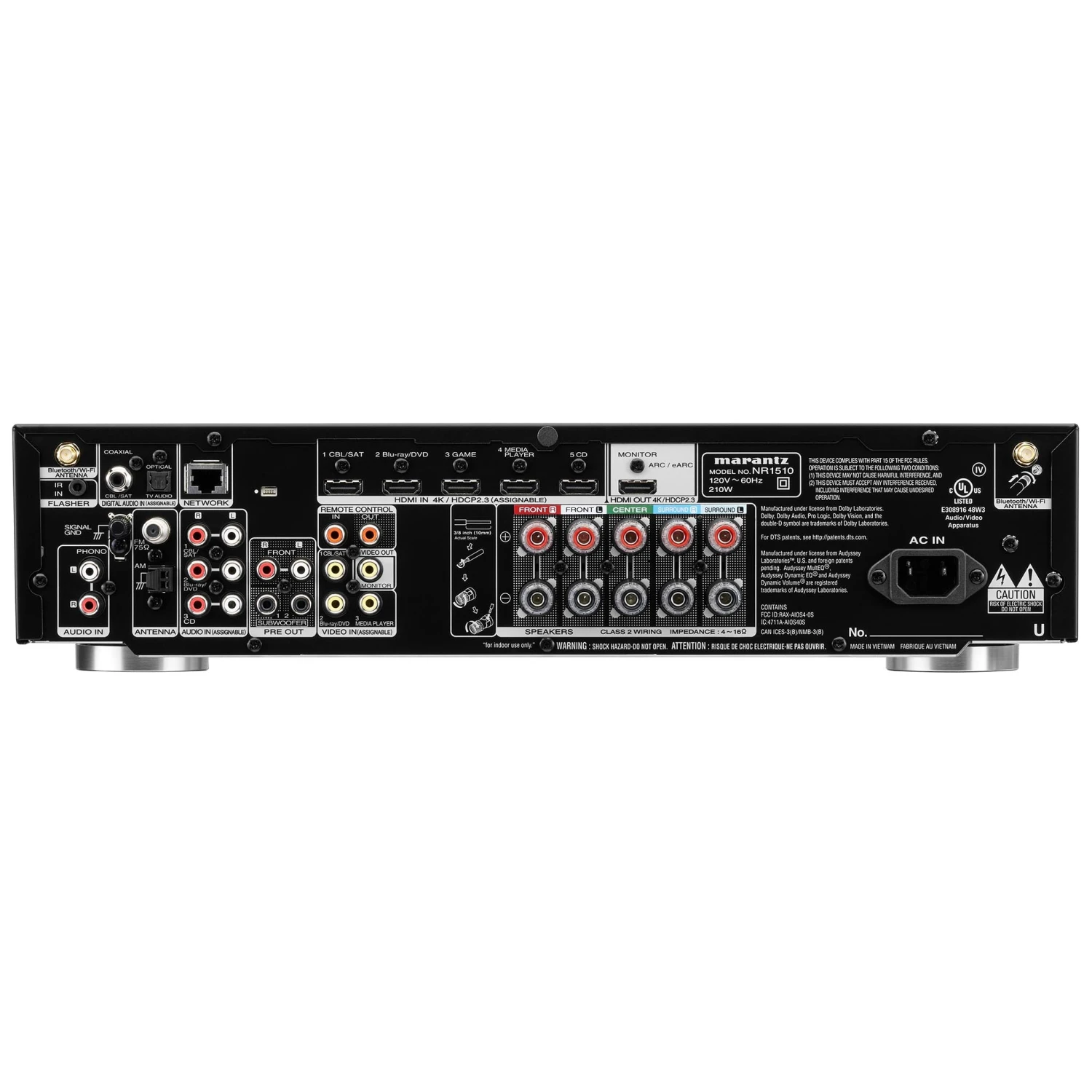

Other Inputs and Outputs

Video
Composite in / out: 3 / 1
HDMI in / out: 5+1 / 1

Audio
Analog in: 3
Phono (MM): 1
Digital in (optical / coax): 1 / 1
USB (iPhone, iPod): 2
Multichannel pre-out: 2.2
Subwoofer out: 2

Power output (8 ohm / 6 ohm): 50 W / 60 W
Dimensions (WDH): 17.3″ x 14.5″ x 4.1″
Weight: 18.1 lb
