Lumin D2 Network Music Player (OPEN)

One of the most successful entry-level streaming DACs we’ve ever had. The Lumin D2 is so good yet so affordable, that many of our customers upgrade to the T2 or better, having been shown just how wonderful streaming digital audio can sound.

The D2 works especially well with analog-only customers who are worried that digital would be to etched and analytical, but find that the D2, being one of the last Lumins with a Wolfson chip, offers a thicker, almost tape-like presentation that is utterly addictive.

Lumin Pro Tips

You’ve got to hear the Lumin D2 powered by the Sbooster Audiophile Power Supply. Improved bass slam and definition, more body, ease, and increased air. A huge boost in performance for an already impressive component. Highly recommended. The Lumin D2 uses the 12-13V Sbooster (it does not work with the Sbooster Ultra upgrade). Order together and we will perform the installation.

Lumin D2 Specifications

DSD SUPPORT

DSD128 5.6MHz, 1-bit

ANALOG OUTPUT STAGE

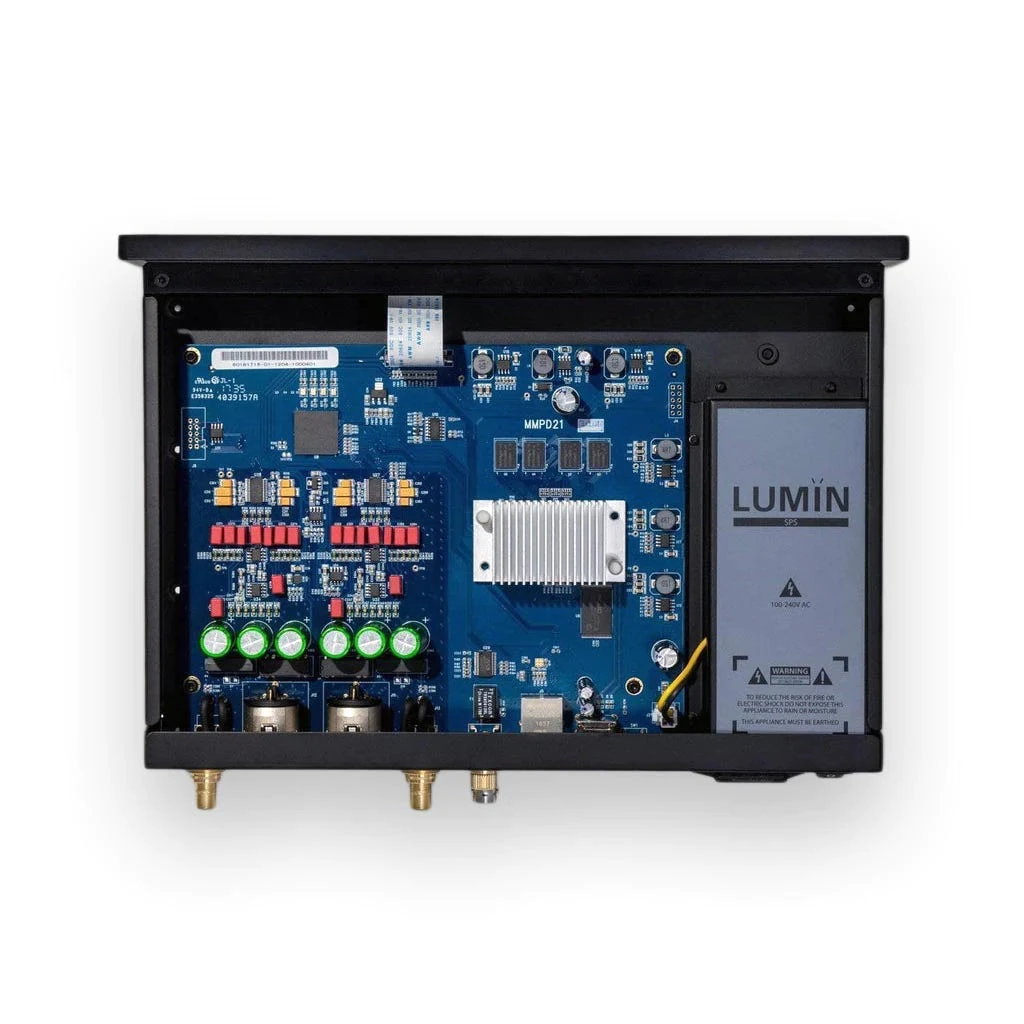

Wolfson WM8741 DAC chips, 1 chip per channel

Fully balanced layout with high-quality components

POWER SUPPLY

Internal 100–240V AC auto-ranging

PHYSICAL

Unit size: 300mm (W), 244mm (D), 60mm (H), 2.5kg

Box size: 470mm (W), 340mm (D), 170mm (H), 4.5kg



All LUMIN Music Players include the following features:

• Streaming Protocol: UPnP AV protocol with audio streaming extension
• Gapless Playback
• On-Device Playlist
• Supported Audio File Formats: DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD), PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, Compressed (lossy) Audio: MP3, AAC (in M4A container)
• Supported Audio Sample Rates, Bit Depths, Number of Channels:
  • PCM: 44.1kHz – 384kHz, 16–32bit, Stereo
  • DSD: 2.8MHz (5.6MHz on LUMIN S1), 1-bit, Stereo
• Upsampling rates & bit depths:
  • DSD upsampling option for all files up to 96kHz
• Supported Control Devices: All models of Apple iPad (v2 or later). iOS 5.0 or later required. Full Retina Display support.
• App Features: High-resolution artwork. Artwork caching. AirPlay compatibility. Multiple-tag handling. ‘Composer’ tag support. Find & Filter. Tag browsing.
• Input: Ethernet Network 100Base-T, USB storage, flash drive, USB hard disk (Single-partition FAT32, NTFS and EXT2/3 only)

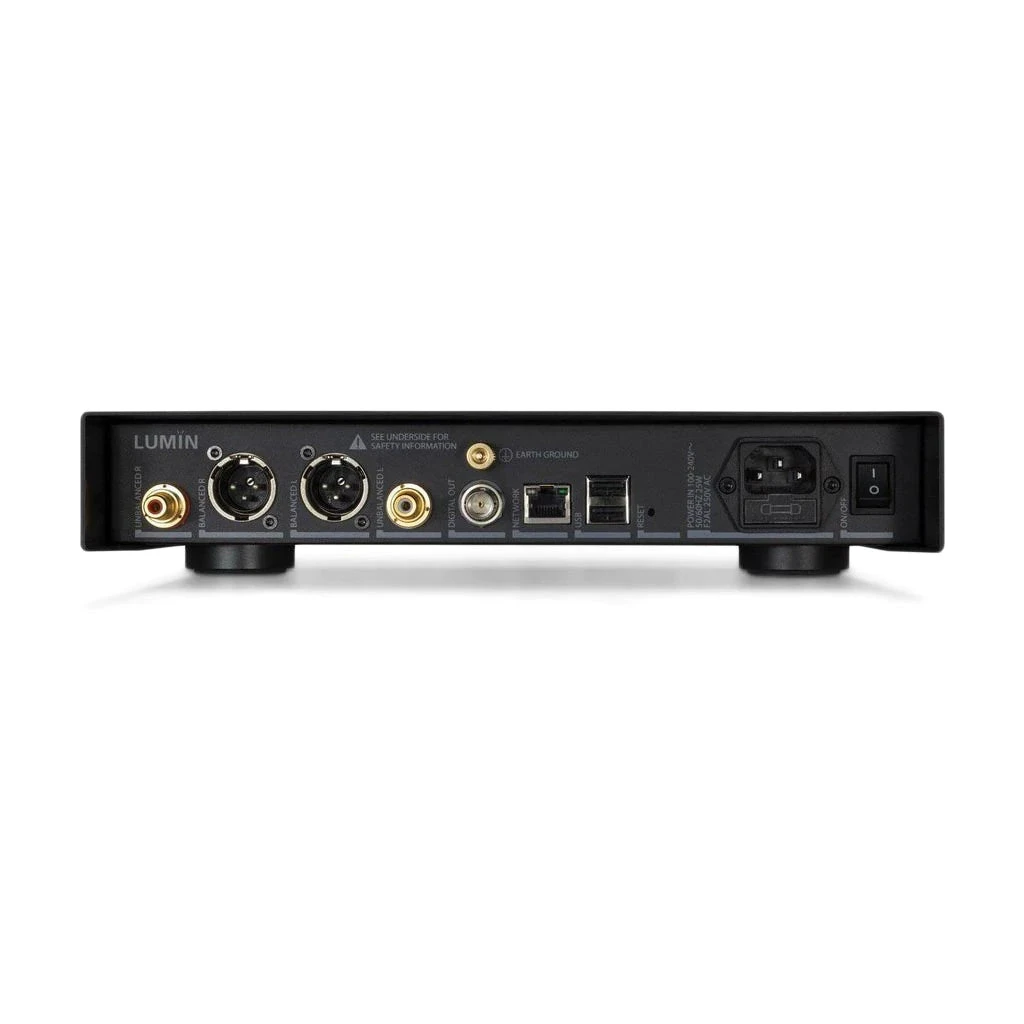

• Outputs:Analog Audio: XLR balanced, 4Vrms, pin 2 Hot, RCA unbalanced, 2Vrms
• Digital Audio: BNC SPDIF:
• PCM 44.1kHz-192kHz, 16-24bit
• DSD (DoP, DSD over PCM) 2.8MHz, 1bit
• HDMI: PCM 44.1kHz-192kHz, 16-24bit, DSD (Native or DoP) 2.8MHz, 1bit

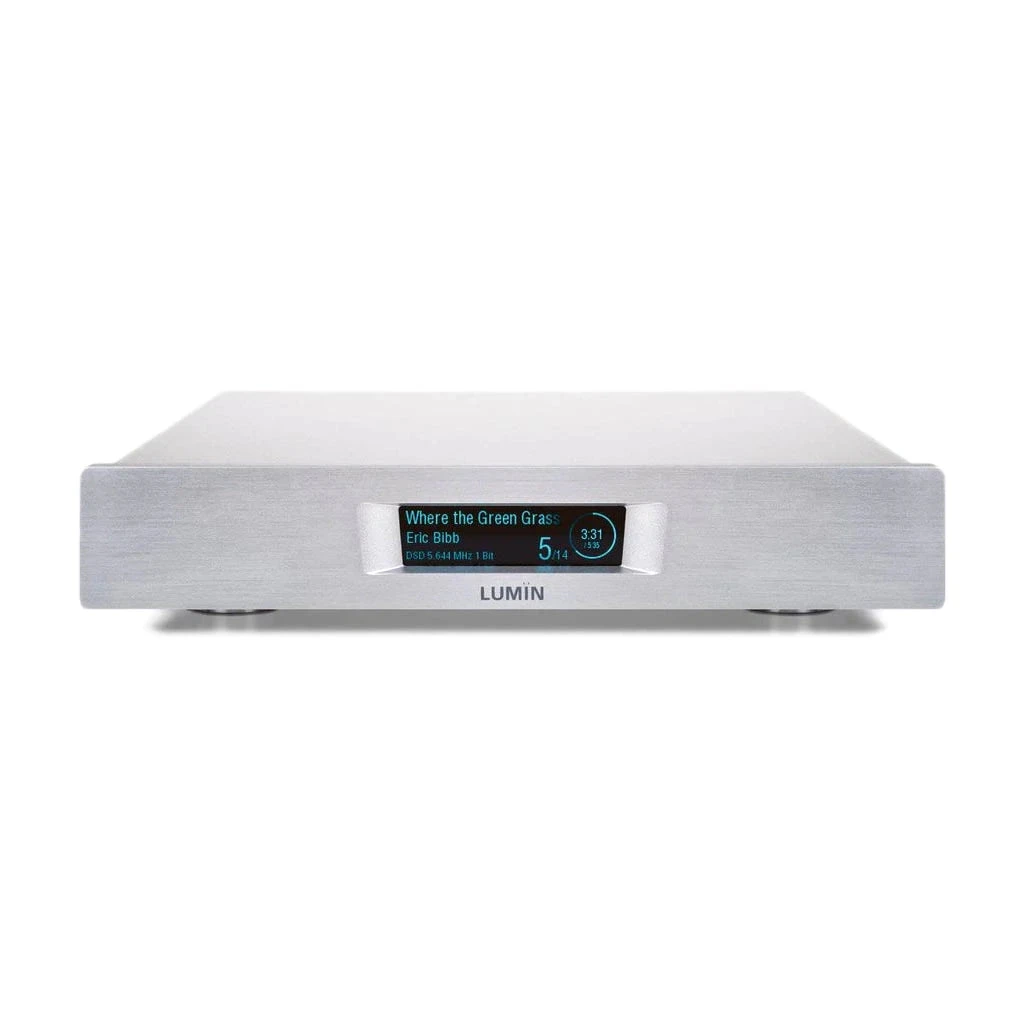

• Finish: Raw brushed aluminium, Black anodized aluminium finish is available as a special order item.
• Firmware-upgradable for further features and enhancements
