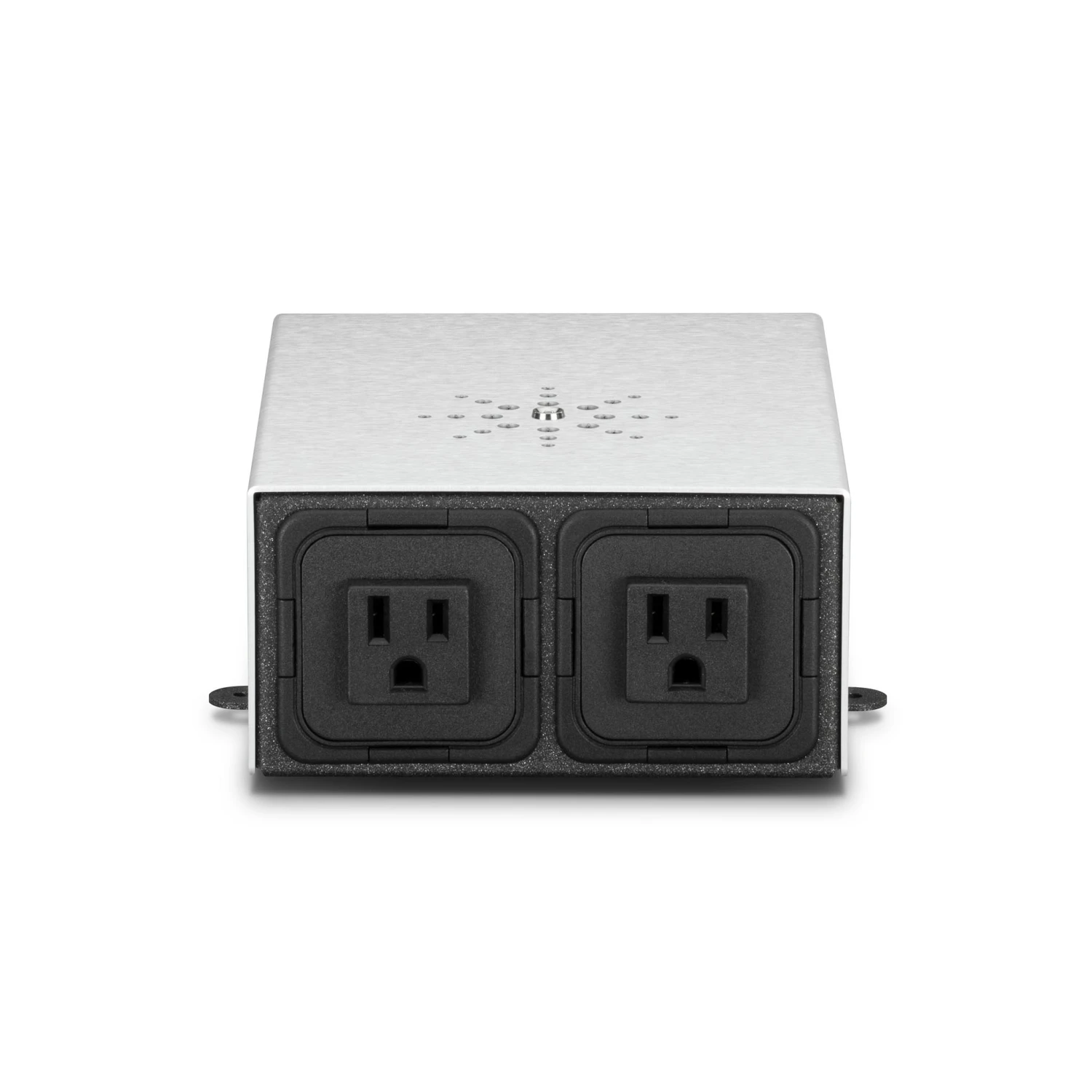

IsoTek EVO3 Mini Mira

Designed specifically for audio-visual applications and utilizing the already highly praised Mira circuit, Mini Mira’s unique ‘Triple Resonance Filter^©’ improves performance and protection for CRT, LCD, LED and plasma screens, and is also fully compatible with projectors.



• Removes Common Mode and Differential Mode mains noise.
• RFI reduction 30dB audio, 40dB visual.
• Independently conditioned outlets – stops Differential Mode cross-contamination.
• Triple Resonant Filter^© gives the ultimate visual performance as well as stopping ‘in-rush’ currents, which can reduce a component’s lifespan.
• 22,500A of instantaneous protection, featuring IsoTek’s unique sequential protection system.
• Internal wiring; multi-strand silver plated OFC copper with PTFE dielectric.
• Maximum continuous power 2,300W (230V).
• Available with UK, EU, US, AU, CH and ZA sockets.



Number of outlets	2
Type of outlets	UK, EU, US, AU, CH and ZA
Standard mains inlet	IEC fused
Mains voltage	110-240VAC/50-60Hz
Maximum current	10Amps
Total wattage	2300 (230V)/ 1100 (11V)
Visual outlet	1150 (230V) / 550 (110V)
Component Outlet	1150 (230V) / 550 (110V)
Dimensions	130 x 65 x 170mm (W x H x L)
Weight	1.9lbs – 900g
