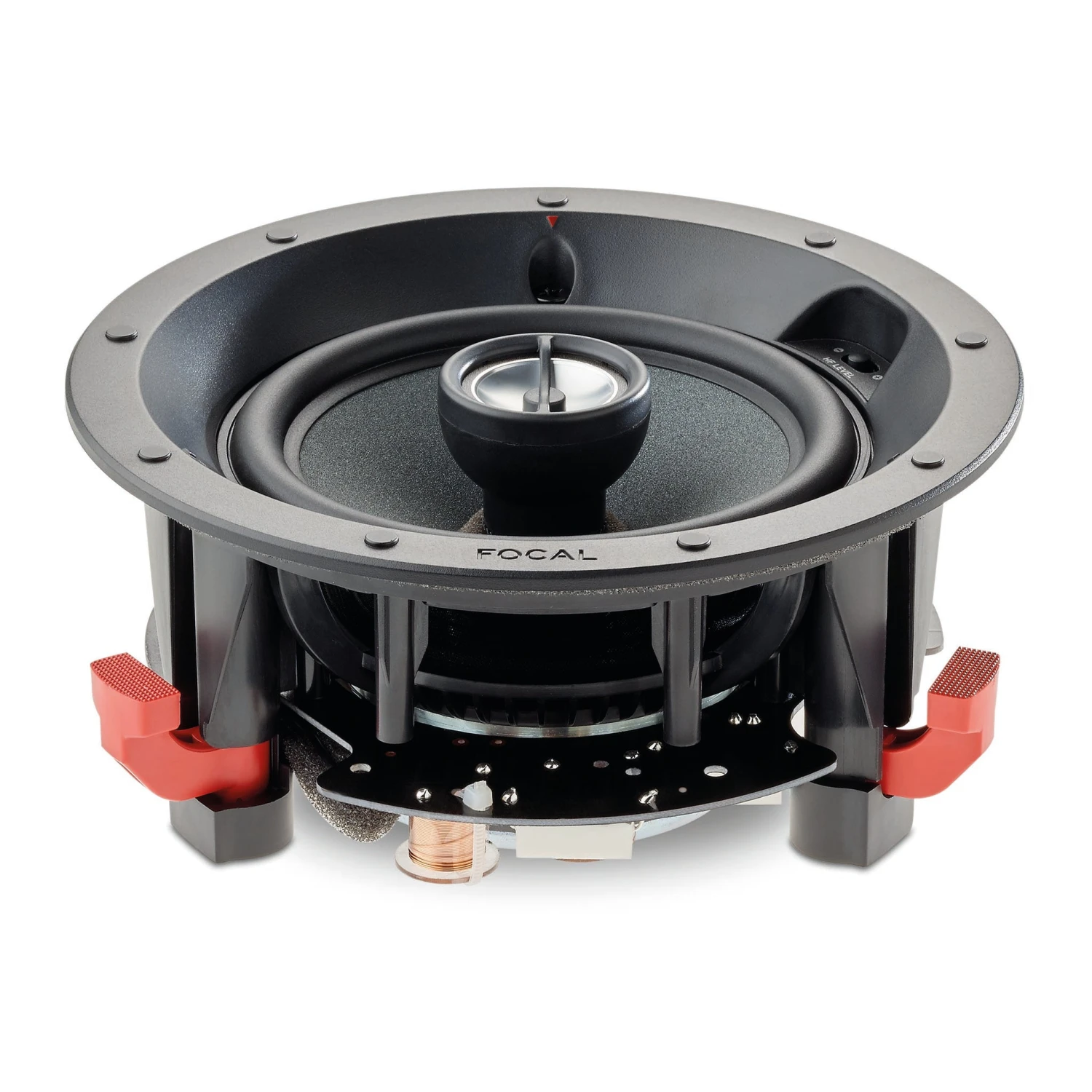

Focal 100ICW5 In-Wall/In-Ceiling Loudspeaker

The 100IW6 loudspeaker delivers amazing sound quality from a compact design. This product is aimed at small to medium rooms and for three types of use: distributed systems, stereo systems, and home cinema systems. The product is suitable for every room in the house, even in humid environments such as bathrooms.

This in-wall loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving sound dispersion. It is also equipped with a new 5″ Polyglass cone. A new crossover improves the off-axis listening and avoids the “shower effect”.

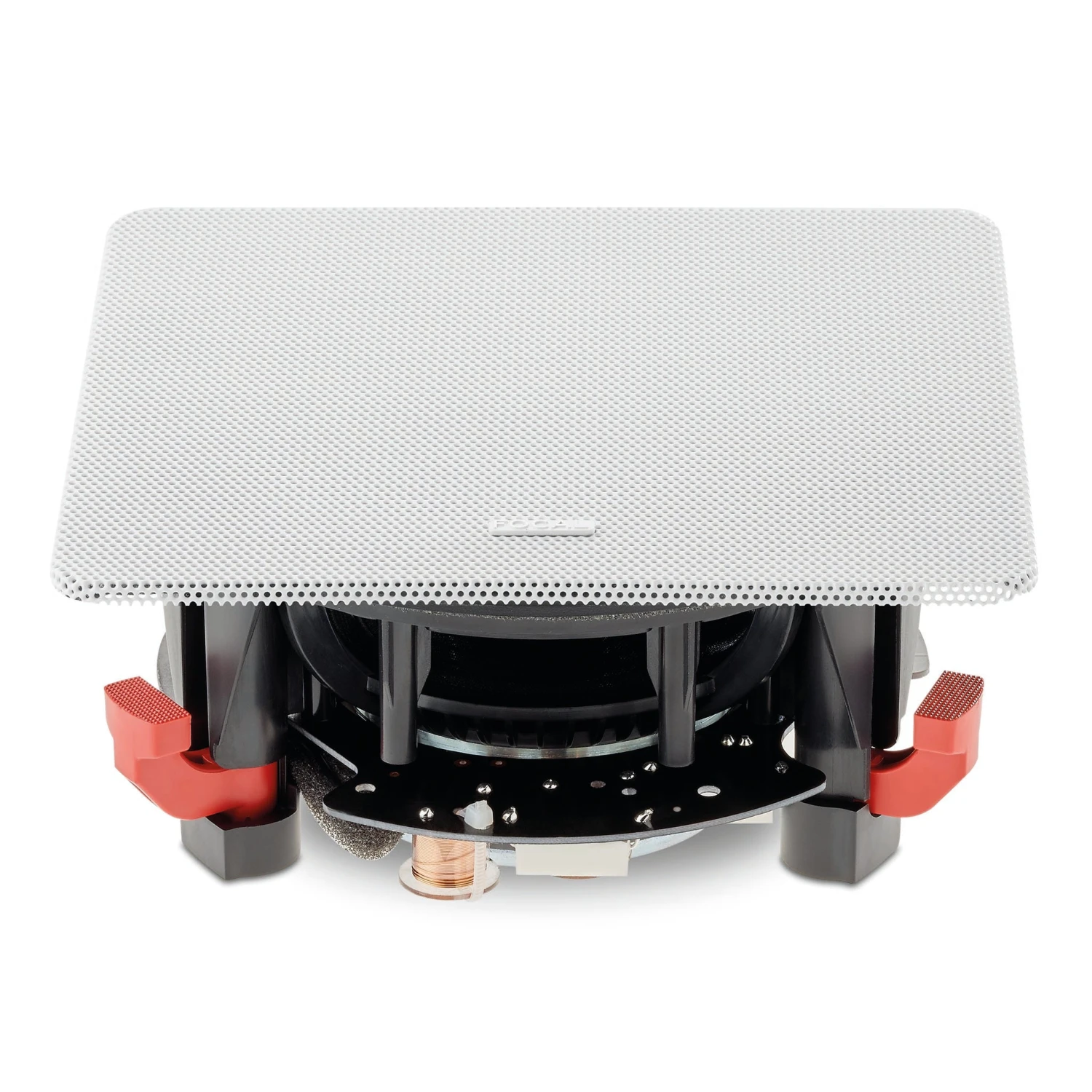

This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis designed as a single piece, and also to square and circular frameless magnetic front grilles.

Features

• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille

Specifications

Drivers: 1″ aluminum inverted dome tweeter,  5″ Polyglass midbass
Sensitivity (2.83 V /1 m): 88 dB
Frequency response (+/-3 dB): 65 Hz-23 kHz
Low-frequency point (-6dB): 56 Hz
Nominal impedance: 8 Ώ
Minimal impedance: 7.3 Ώ
External dimensions (Ø/Depth): 7-1/4″ x 3-27/64″
Cut-out diameter: 6-16/64″
Depth from wall: 3-15/64″
Net weight (with front grille): 4.52 lb
