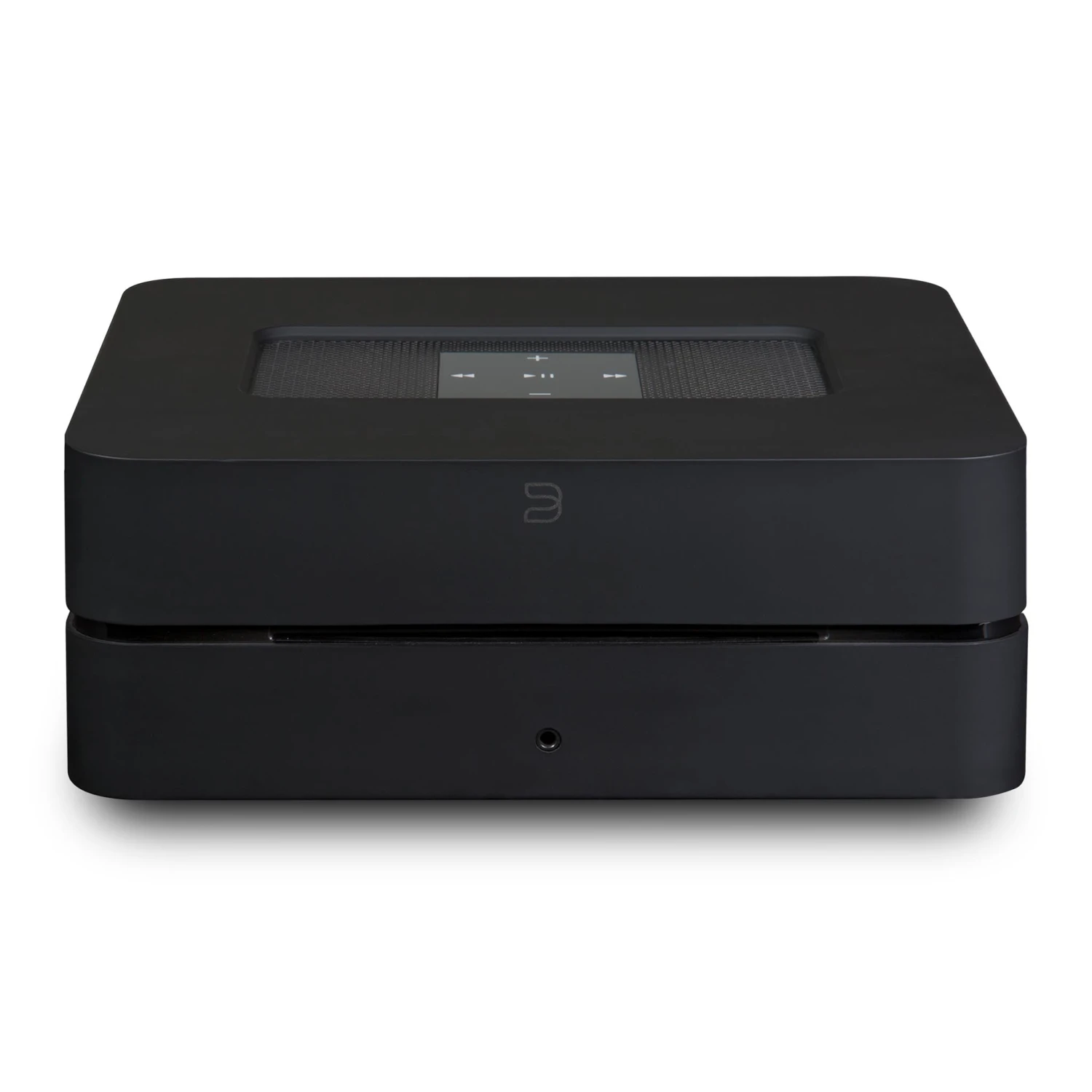

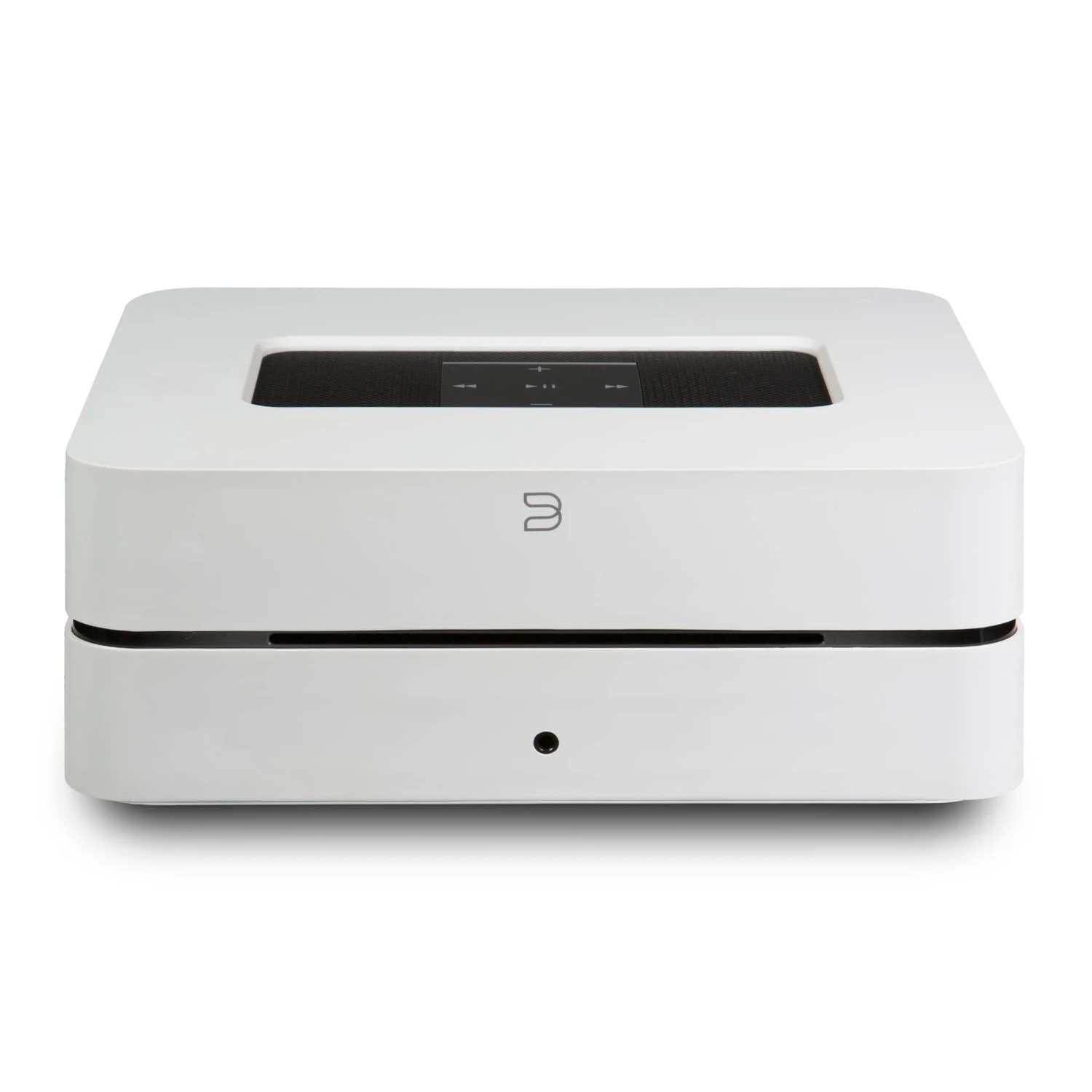

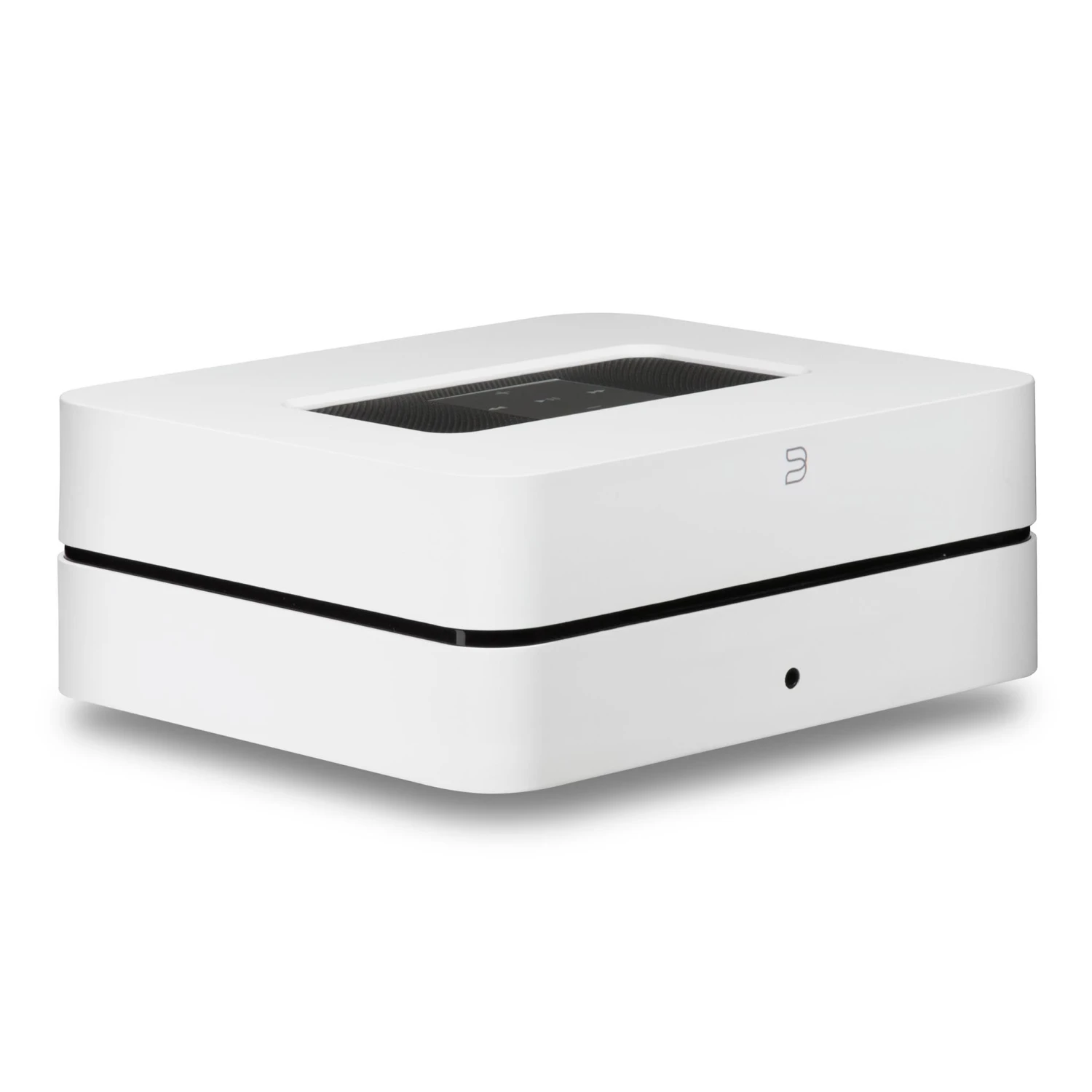

Bluesound Vault 2i

Stream It In High-Res Anywhere You Want.

All Without A Computer.

Rip it. Download it. Store it. The VAULT 2i lets you rip all your CDs rapidly in bit-perfect, high-resolution formats. Store thousands of tracks on its internal ultra-quiet 2TB hard-drive that doubles as a network NAS drive. Hook up the VAULT 2i to your existing gear, pair it with a set of powered speakers or stream your digital music collection in studio-quality to Bluesound players all over the home.

• Store thousands of tracks on the VAULT 2i’s 2TB internal hard drive
• Rip your CDs in FLAC, MP3, WAV, WMA, and many other formats
• 1 Type-A port for USB connection to add your personal music collection
• Innovative 1GHz dual-core ARM Cortex processors
• Easily connect to wired home network for flawless streaming
• Control music wirelessly with the intuitive BluOS Controller app
• Stream your music libraries to multiple Bluesound players throughout the home
• Ask for the music you want to hear and control it with Amazon Alexa*.
• AirPlay 2* lets you play music or podcasts from speakers throughout your house — all in sync.

Note, however, that the Vault 2 does not support UPnP or DLNA, and cannot be seen directly by non-Bluesound streamers. One solution is to run a UPnP server on a computer that’s on the network, and point that server to the Bluesound using file share.

Specifications

Audio

Supported File Formats

MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Hi-Res formats – FLAC, MQA, WAV, AIFF

Storage

2TB internal ultra-quiet hard-drive with low power consumption

Rip Formats

FLAC, MP3 (320 kbps), WAV

CD

Slot-loading mechanism for ripping standard audio CDs

Native Sampling Rates

32 – 192 kHz

Bit Depths

16, 24

Supported Operating Systems

Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista 7-10, Apple Macintosh 7-10

Performance

THD+N – 110dBA
Distortion – 0.005%

DAC

32-bit, 192 kHz

Free Internet Radio

TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, Slacker Radio

Supported Cloud Services

Spotify, Amazon Music, TIDAL, Deezer , Qobuz, HighResAudio, Murfie , JUKE, Napster, KKBox, Bugs, Taihe Music ZONE, SoundMachine

Integration Partners

Control4, RTI, Crestron, URC, push, iPort, ELAN, Lutron, roon, Amazon Alexa Skills, Airplay 2

Album Art

JPG

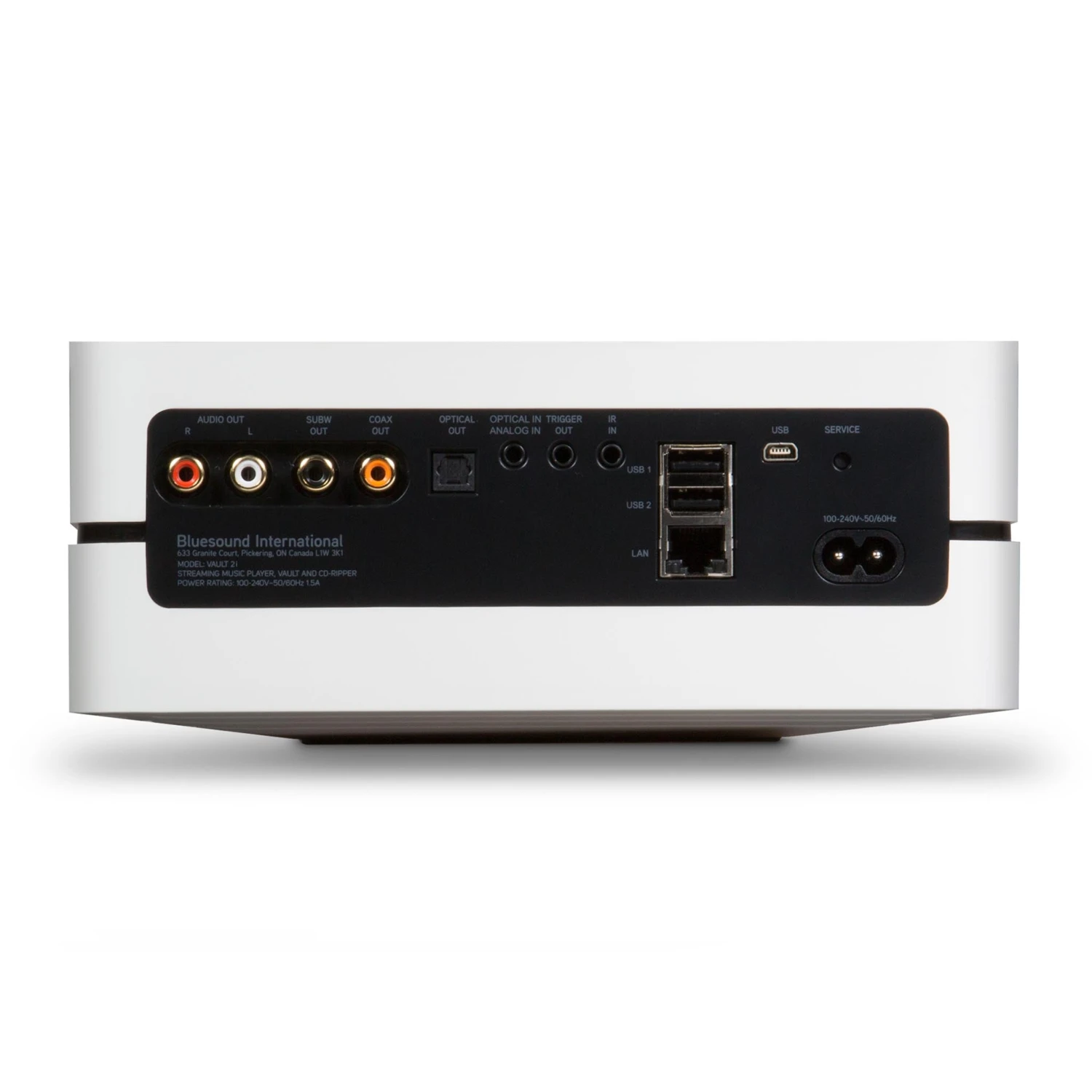

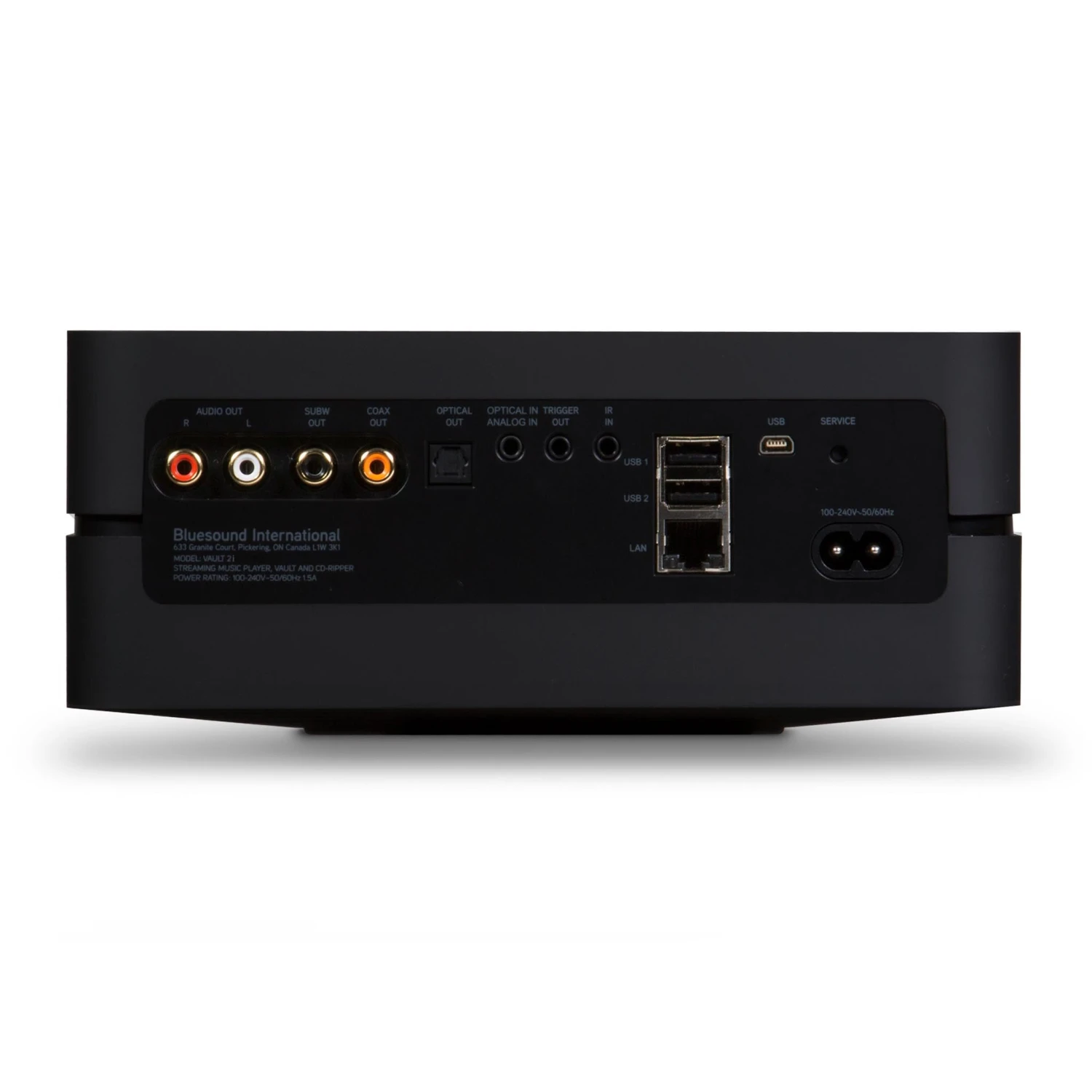

CONNECTIVITY

Network

Gigabit Ethernet RJ45

USB Host

1 x Type-A (Fat32 or NTSF formatted) port for connection to USB memory sticks and supported peripherals
1 x Type-B (mini) for product servicing

Audio In

Combo – TOSLINK / 3.5mm

Audio Out

Analog RCA Stereo with FIXED option
Coaxial RCA
TOSLINK digital optical
Headphone 3.5mm Stereo
Subwoofer RCA
12 Volt trigger out

Bluetooth Quality

Bluetooth 5.0 aptX HD wireless built-in

Bluetooth Connectivity

Two-Way (transmit & receive)

Power

Universal bi-pin AC Cord input (100 – 240AC)

Wireless

aptX^® Bluetooth wireless built-in



USER INTERFACE

Mobile

Free Android and iOS App Available Online at Google Play and Apple App Store

Pushbuttons

Simple top-panel touch controls.

Control

IR learning remote capability



GENERAL

Processor

Dual-Core ARM® CORTEX™ A9, 1Ghz Processor

Unit Weight

1.84 kg / 4.05 lb

Gross Dimensions

220 x 90 x 192 mm
8.7 x 3.54 x 7.55 in

Power Consumption (Idle)

22 Watts

Accessories

2x AC power cords (Europe & North America)
Universal AC Power Supply
Stereo RCA Cable
Stereo 3.5mm mini-plug to RCA Cable
Ethernet Cable

Storage Environment

-10° C to 50° C, 20% to 80% relative humidity

Operating Environment

0° C to 40° C
