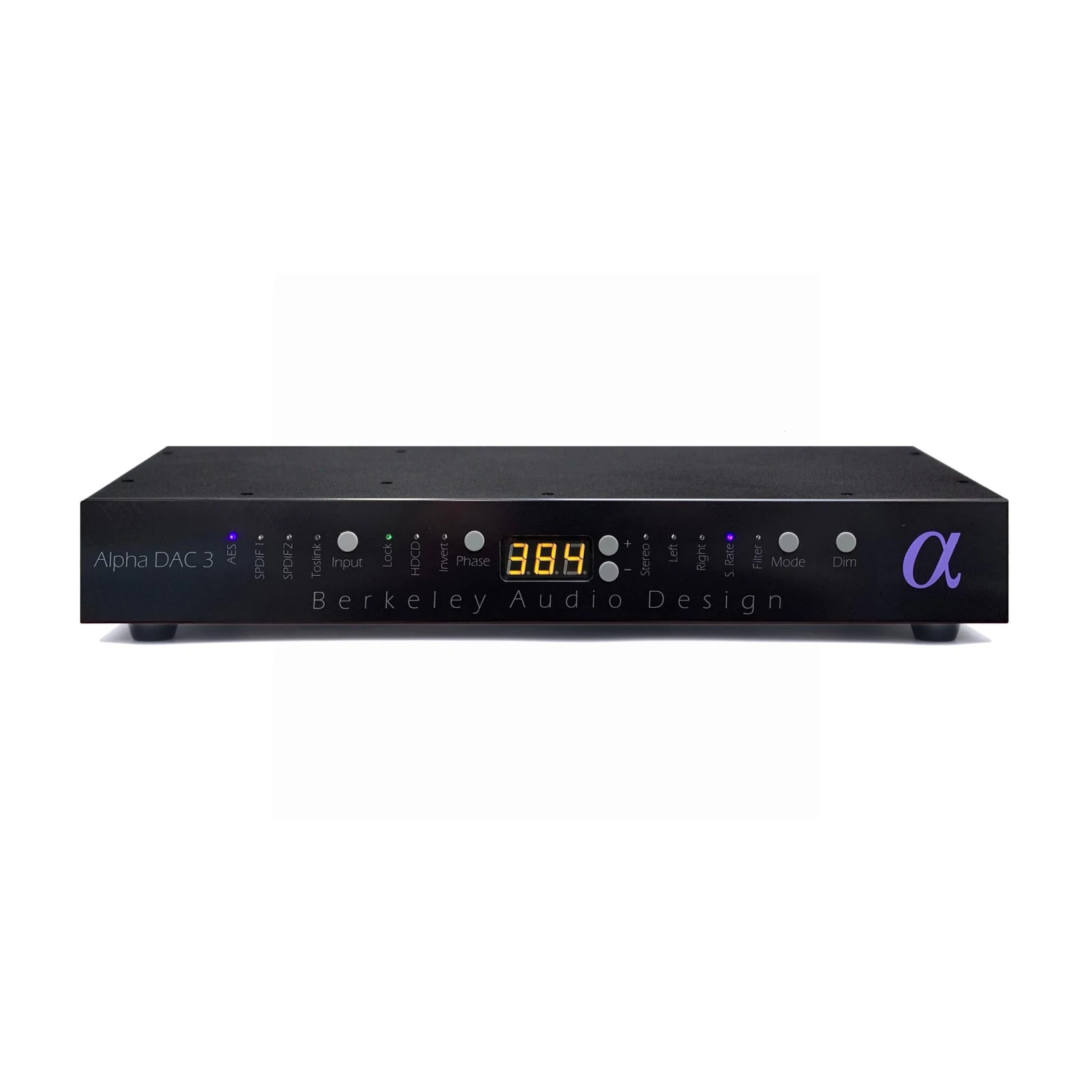

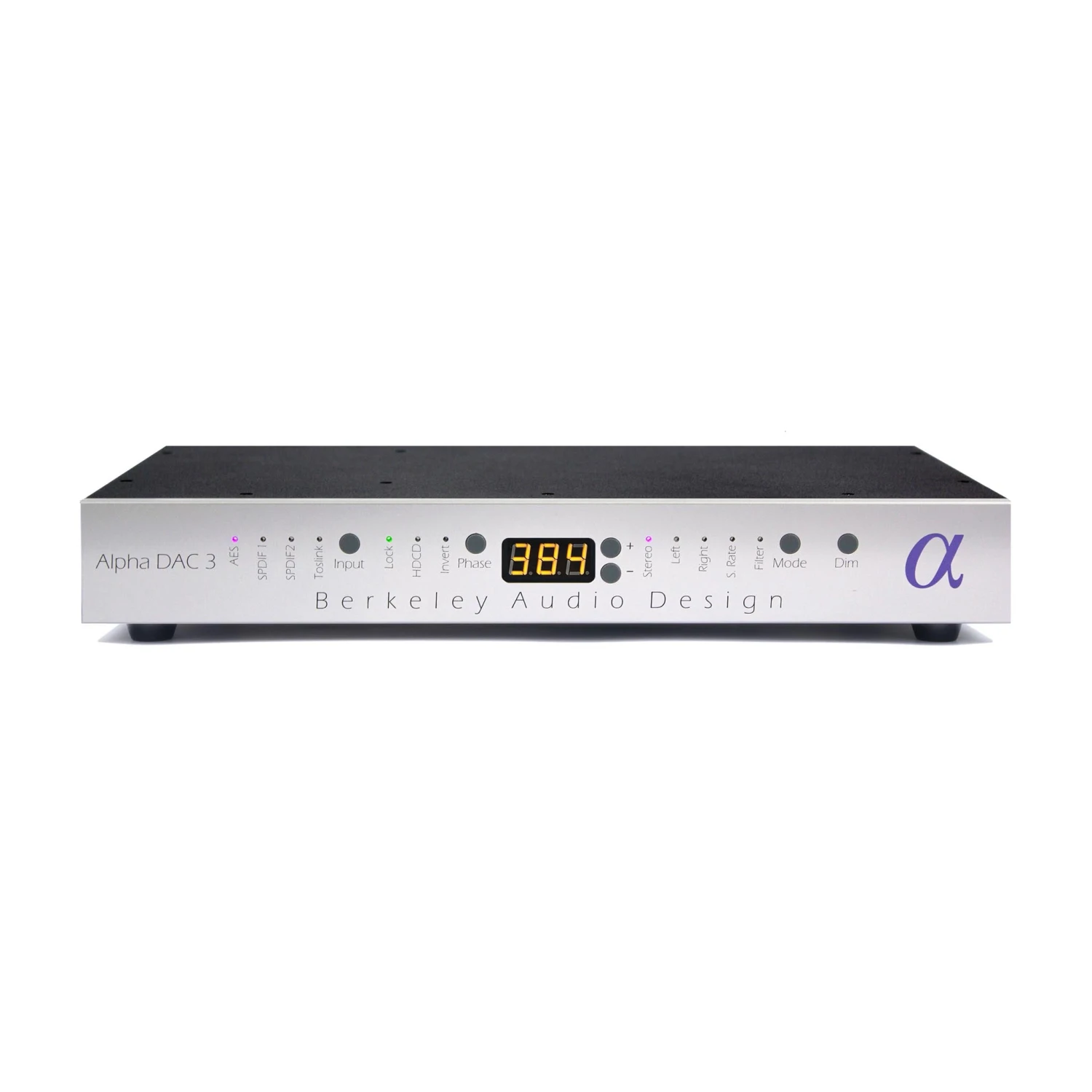

Berkeley Audio Design Alpha DAC Series 3 Digital to Analog Converter

The Series 3 gets even closer to the Reference in this MQA-capable DAC with volume control

The Alpha DAC Series 3 uses advanced technology from the award-winning Alpha DAC Reference Series 3. Compare the Alpha DAC Series 3 with an Alpha USB noise isolation interface to any DAC available at any price and you will be amazed by Berkeley Audio’s  quality.

Features

• MQA rendering capability to beyond 384kHz
• PCM audio from 32kHz to 192kHz
• Ultra-low phase noise conversion clocking
• Outputs can connect directly to power amplifiers
• All metal Series 3 IR Remote Control
• Multiple digital filter options
• Firmware is upgradeable through signal inputs

Specifications

Sampling rate: 32 kHz to 192 kHz, 24 bit

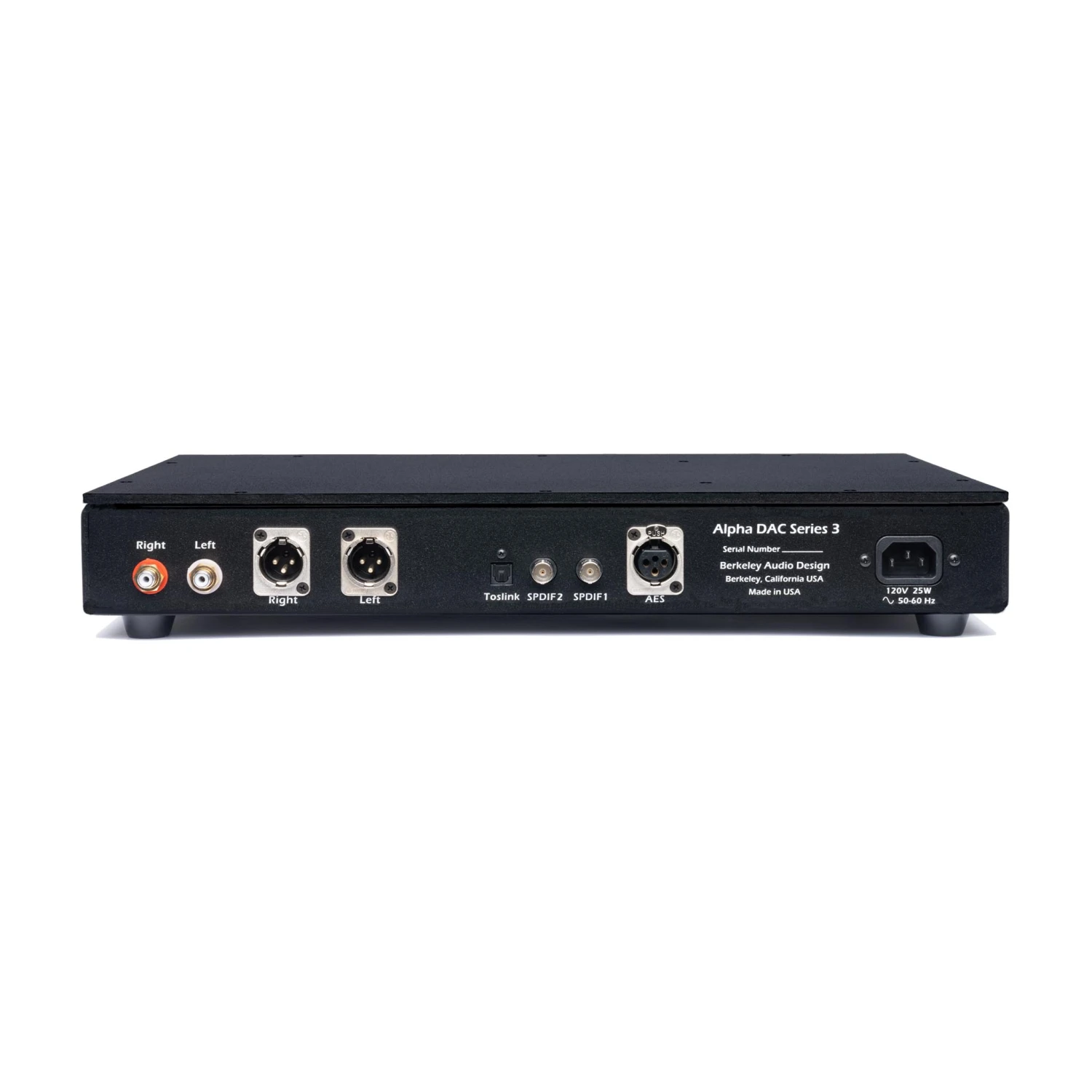

Inputs: 1 x XLR AES/EBU,  2 x BNC S/PDIF, 1 x TOSLINK

Outputs: 1 x stereo pair XLR balanced, 1 x stereo pair RCA unbalanced

Digital volume (60 dB range): 0.1 dB/step

Balance control (60 dB range):  0.05 dB/step

Dimensions (WHD): 16.7″ x 2.3” x 10.6”

Weight: 11.6 lb
