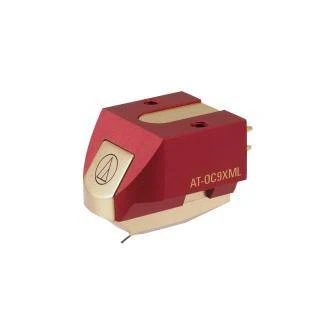

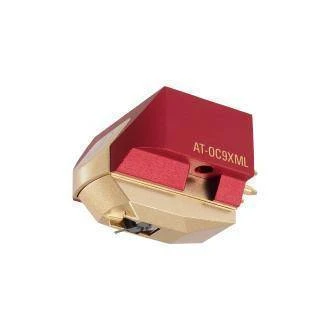

Audio-Technica AT-OC9XML Moving Coil Cartridge

The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet, and premium permendur yoke that increase the magnetic energy. The nude Microlinear stylus on a boron cantilever tracks the record groove with incredible accuracy, low distortion, and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications

Type: Dual moving coil
Body material: Aluminum
Frequency response: 20-47,000 Hz
Channel separation: 27 dB (1 kHz)
Vertical tracking angle: 20°
Vertical tracking force: 1.8-2.2 g (2.0 g standard)
Recommended load impedance: Min. 100 ohm (when head amplifier is connected)
Coil impedance: 12 ohm (1 kHz)
DC resistance: 12 ohm
Coil inductance: 25 mH (1 kHz)
Output: 0.4 mV (at 1 kHz, 5 cm/sec)
Channel balance: 1.0 dB (1 kHz)

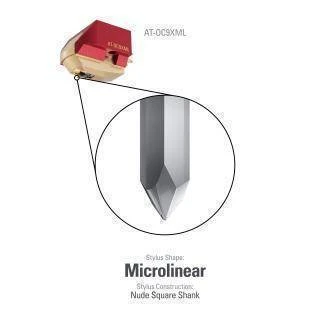

Stylus shape: Microlinear
Stylus type: Nude square shank
Stylus curvature radius: 2.2 x 0.12 mil
Cantilever: 0.28 mm diameter nude boron
Static compliance: 20 x 10-6 cm/dyne
Dynamic compliance: 16 x 10-6 cm/dyne (100 Hz)
Coil wire material: PCOCC
Terminal pins: Brass
Mount: Half-inch
Weight: 7.6 g (0.3 oz)
Dimensions: 17.3 mm (0.68″) H × 16.8 mm (0.66″) W × 25.7 mm (1.01″) D

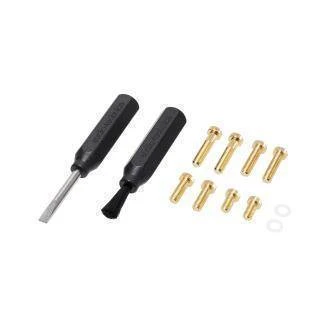

Included accessories: Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
Mounting feature: Threaded body
