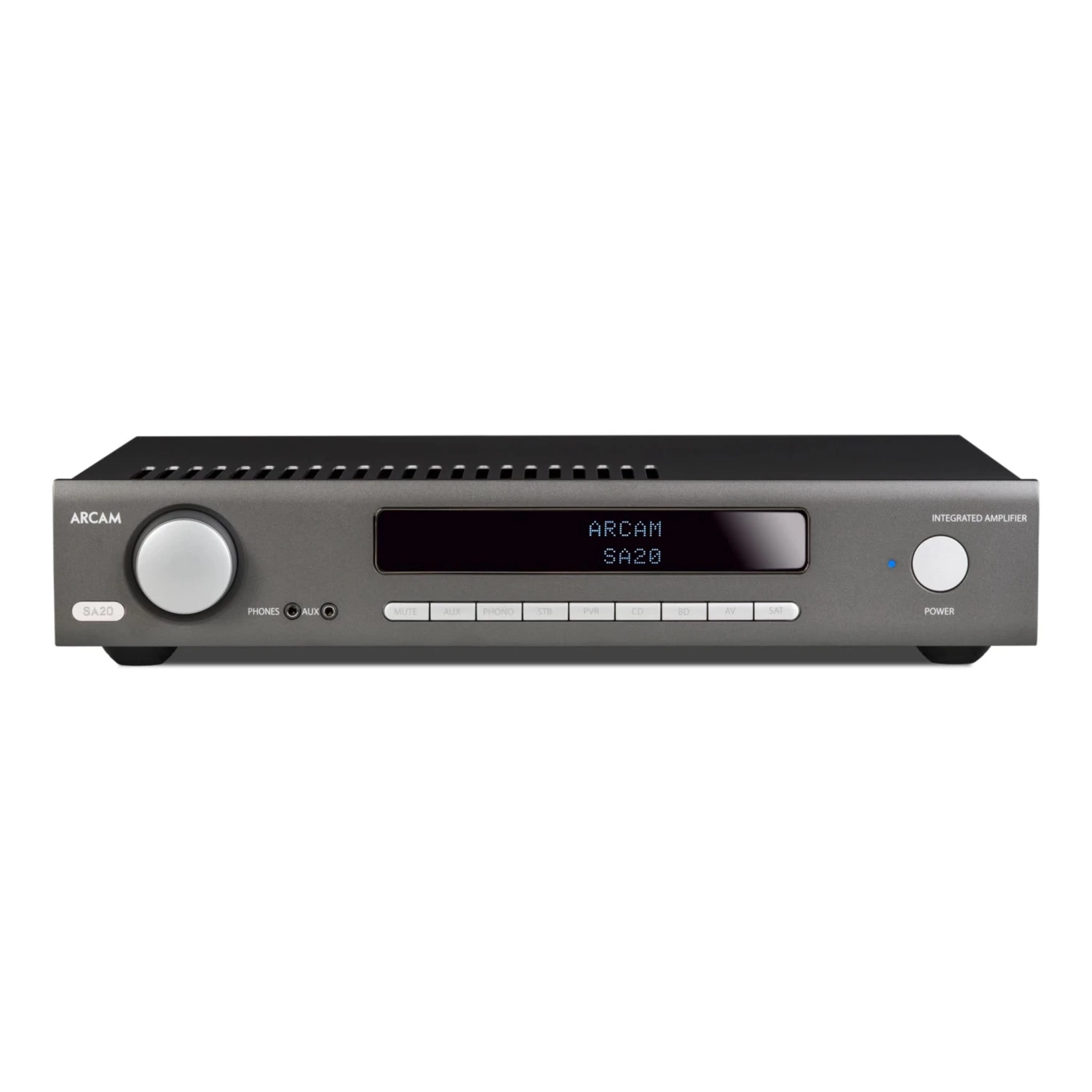

Arcam SA20 Integrated Amplifier

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet.

The SA20 is a 90W, class G amp with an onboard MM phonostage and DAC. Note, there is no streamer, the Ethernet port is for monitoring and amp control only.

Features

• Class G amplification for impeccable sound and efficiency
• 90 W of power per channel
• 5 analog inputs including phono
• 3 digital inputs
• 32-bit DAC, Sabre ESS9038K2M
• Full I/P control

Specifications

Continuous power output (8 ohm, 4 ohm): 90 W, 150 W

Phono (MM) input
Input sensitivity (1 kHz): 5 mV
Input impedance: 47 kΩ + 100 pF

Line inputs
Input impedance: 10 kΩ

Digital inputs
DAC chip: ESS9038K2M
Supported sample rates (optical, coaxial): 32-96 kHz, 32-192 kHz (16-24 bit)
Bit depth 16-bit – 24-bit

Preamp output
Output impedance: 230 ohm

Headphone output
Max output (into 600 ohm): 5 Vrms
Output impedance: 1 ohm
Load range: 16 – 2,000 ohm

Dimensions (WHD):  17″ x 3.4″ x 12.7″ (433 mm x 87 mm x 310 mm)

Weight: 20.3 lb

Supplied accessories: Power cord, remote control, 2 x AAA batteries
