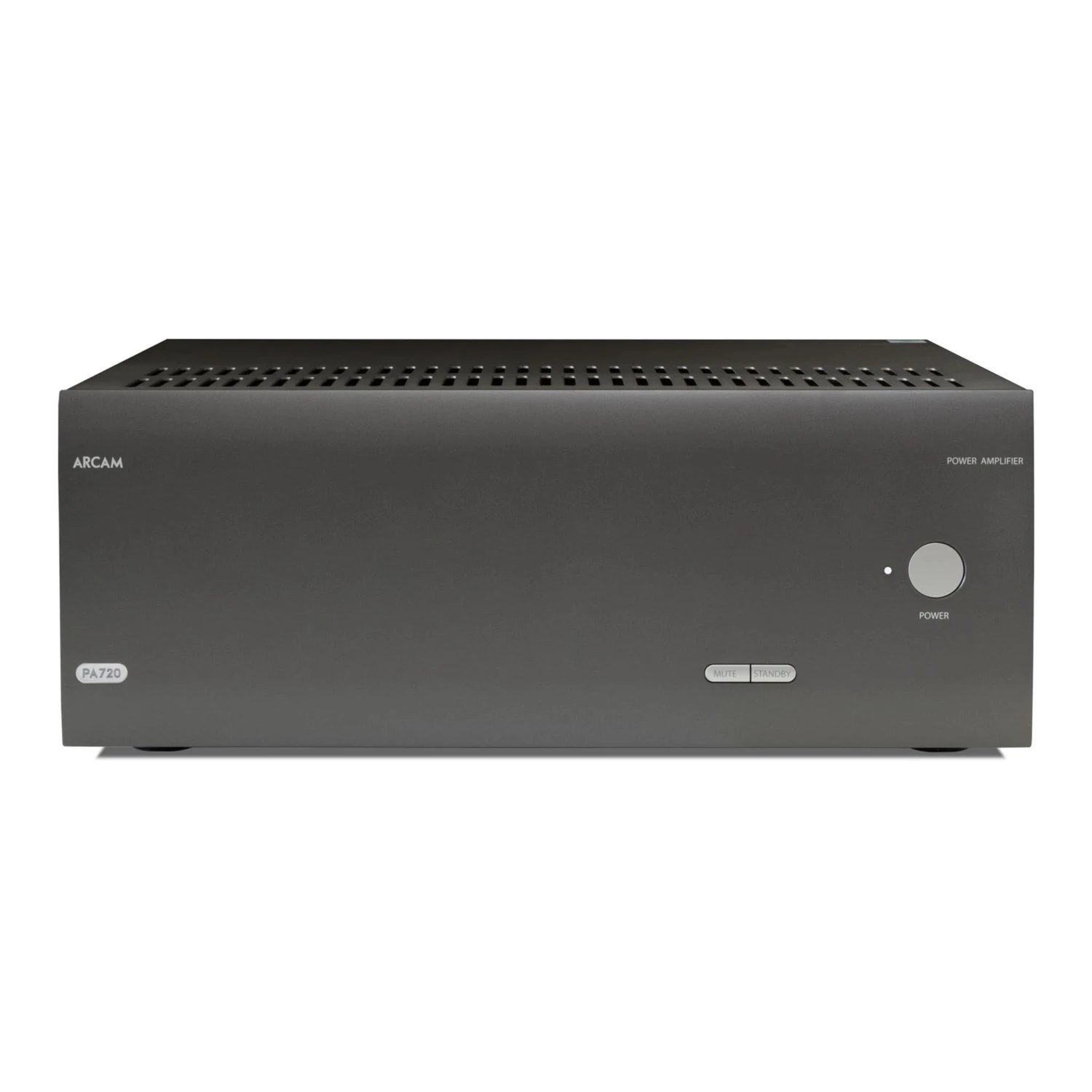

Arcam PA720 7-channel power amplifier

The PA720 is a high-performance power amplifier that delivers seven channels of efficient Class G amplification. With an impressive 140 W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal power supply, acoustically damped chassis, paralleled transistor output stages, and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Features

• 7 x 100 W Class G amplification (8 ohm, 20 Hz-20 kHz, 0.2% THD)
• Class G amplification with 20 W of Class A operation
• Toroidal transformer

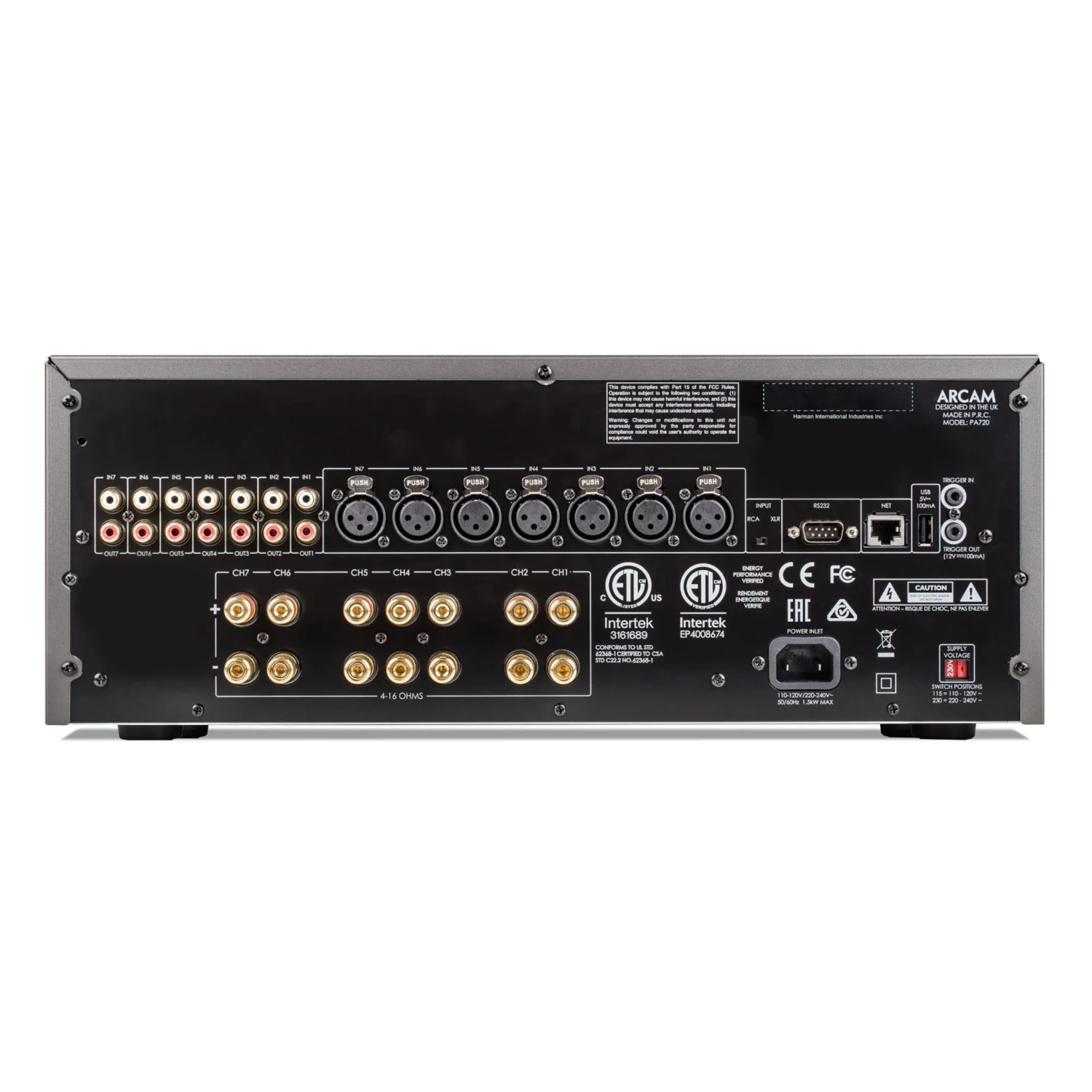

• Ethernet, RS232 control
• Switchable RCA or balanced XLR inputs

Specifications

Continuous power output
Seven channels driven, 4 Ω / 8 Ω: 140 W / 100 W
Five channels driven, 4 Ω / 8 Ω: 175 W / 110 W
Two channels driven, 4 Ω / 8 Ω: 225 W / 140 W

Input impedance: 10 kΩ

Dimensions (WHD): 17″ x 16.7″ x  7″ (433 x 425 x 177 mm)

Weight: 39.6 lb (18 kg)
